Digital Video Recorder
3.
3. Explanation and Application
3.1 Basic Schematic of the DVR System
: This system can record up to 16 composite video signals.
Ability to check multiple screens during playback by using monitors & VGA units. It supports screen
search, monitor, and remote control through the Network.

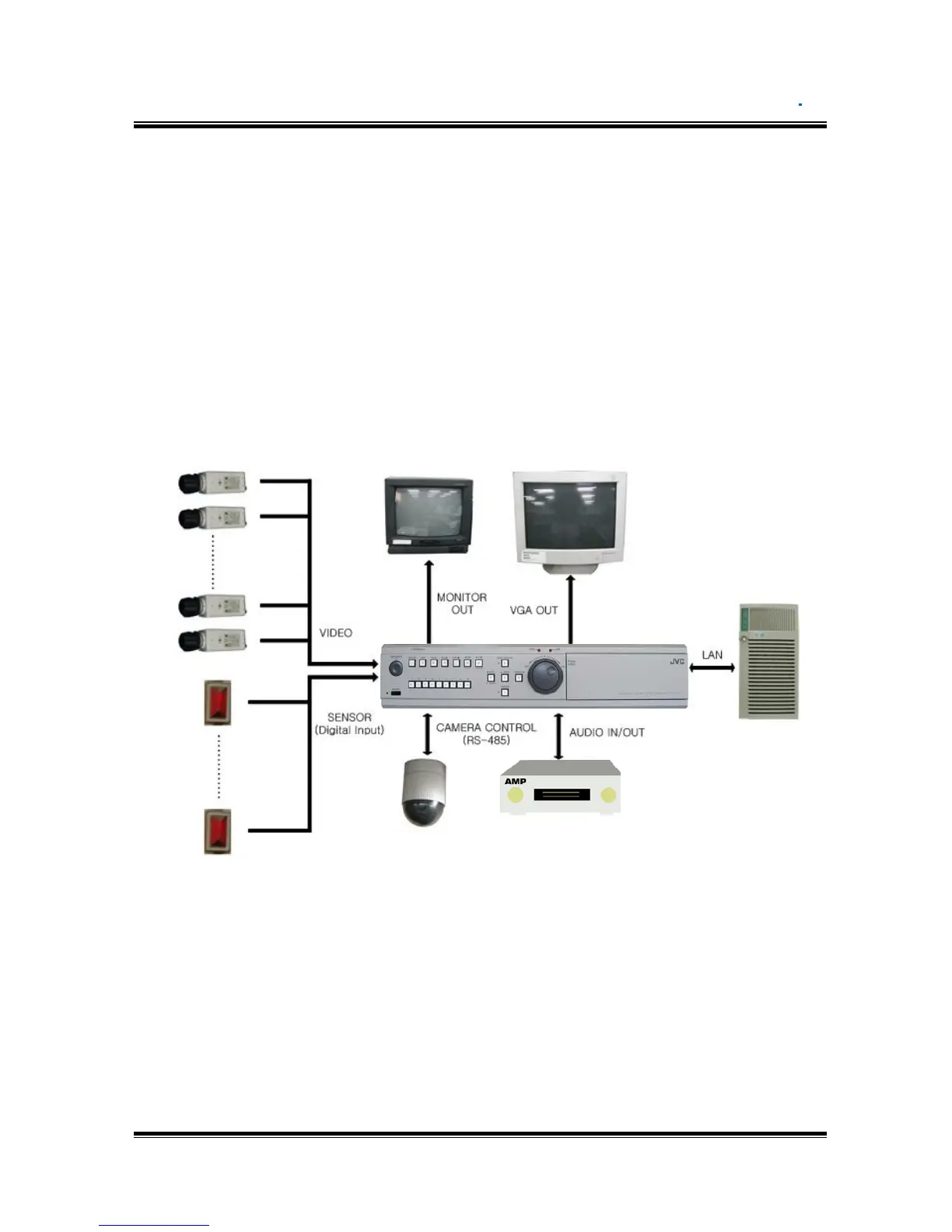

3.1.1 Basic Schematic
Video signal of the input channel is 1.0 Vp-p on a 75Ω load. THROUGH OUT is changed
to Hi-Z Automatically.
NETWORK
