26 k1evo706en-2011-07 Kaba Terminal 9420 MID
Installing and configuring B-COMM Java User manual
5.4.4 Assigning the terminal to the stream (BCLAN01)
To enable the terminal to communicate via the just defined communication
channel, it has to be allocated to it. Drag the Terminal B-web... entry in the Terminal
Discovery area on to BCLAN01.

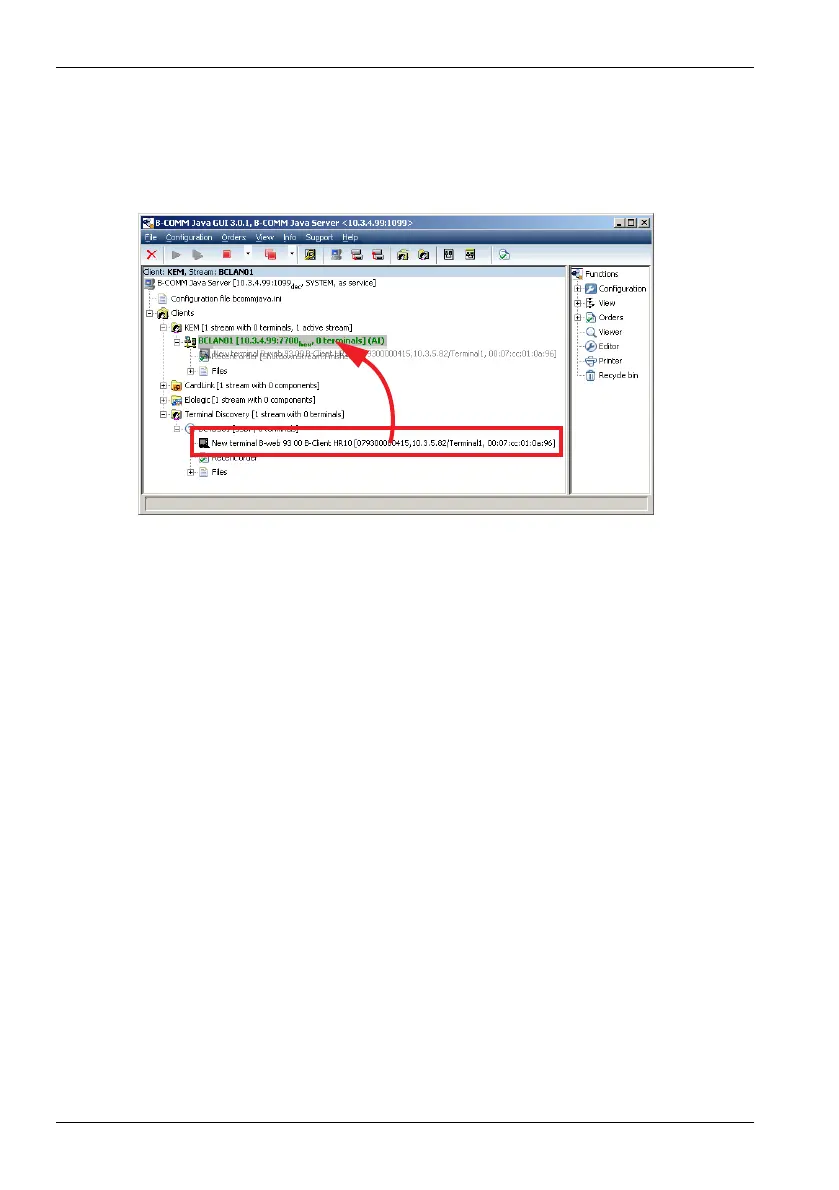

Allocating a terminal to its specified communication channel
A configuration window will now appear in which the final settings for this
communication path are defined.
1. Enter the name of the terminal (e.g. Terminal1) in the Description field.
2. Set the value of ID length in master records to 18.
3. Select the Arios Terminal function.
4. Click on the Logon button.
