Mounting and installation User Manual B-Net 93 60
36 © Kaba Benzing GmbH 01/2006
5.6.10 Relay outputs
Assignment
Relay 2 Door opener 2 (OUT)
Relay 1 Door opener 1 (IN)
NOTICE!
The relays are designed for 30 V AC / DC and 2 A maximum.
For device safety reasons 115 / 230 V may not be switched with this relay.
Door opener
For door openers that are supplied with DC voltage, the included diode
(a freewheeling diode) must be connected parallel to the door opener to suppress
interference. In doing so, make sure that the diode is connected in reverse-bias
direction. When using an AC voltage power supply, the included varistor type
S10K30 must be connected parallelly.
The diode or varistor must be connected directly to the door opener and must not
be fitted in the terminal.

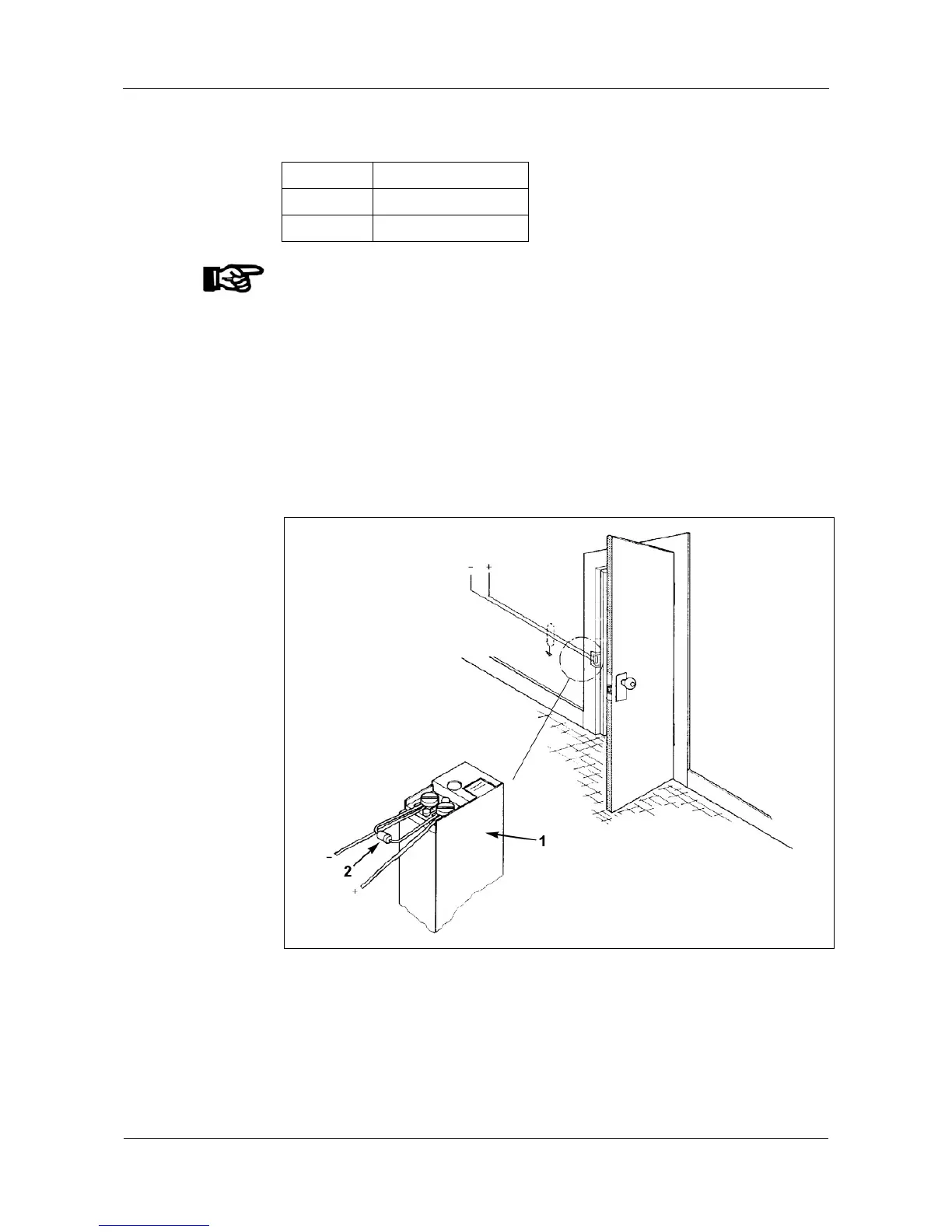

Fig. 23: Door opener
1 Door opener
2 Freewheeling diode or varistor
