5.6.5 ISDN modem

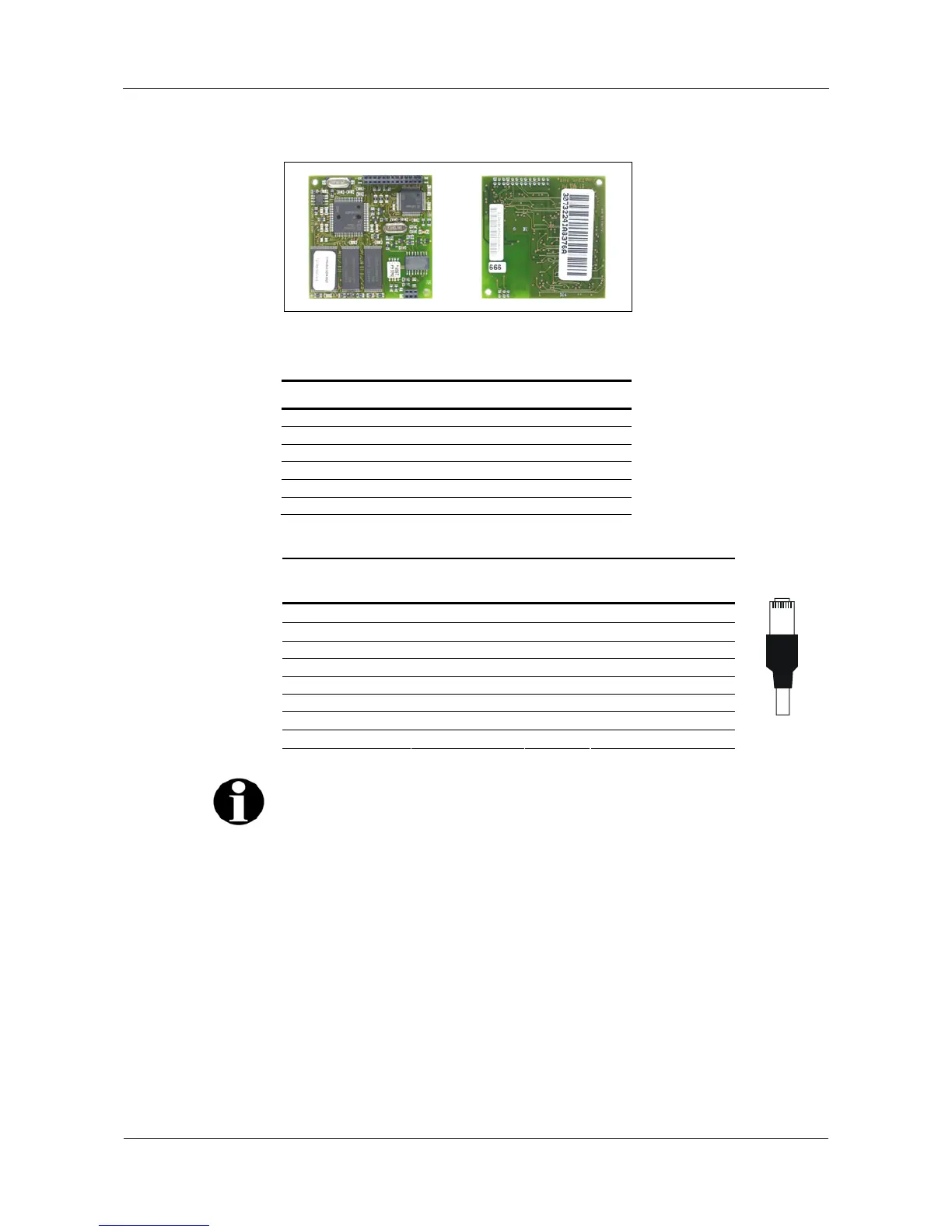

Fig. 17: ISDN modem front view and rear view
Terminal assignment BEX101
Terminal Assignment Function
6 - not used
5 - not used
4 STA / TX+ Transmitting line TX+
3 SRA / RX+ Receiving line RX+
2 STB / TX- Transmitting line TX-
1 SRB / RX- Receiving line RX-
Pin assignment RJ45 (ISDN)
Connection
RJ45
Specification Color Clamp BEX 101
1 n.c.
− −
2 n.c. Brown
−
3 STA / TX+ White 4
4 SRA / RX+ Green 3
5 SRB / RX- Yellow 1
6 STB / TX- Gray 2
7 n.c. Pink
−
8 n.c.
− −
1
8
Remark
Modem configuration can be adapted via the BECO500 Service Module, refer to
chapter
7.3.7.8.
