4 Design and Function
4.1 Enclosure

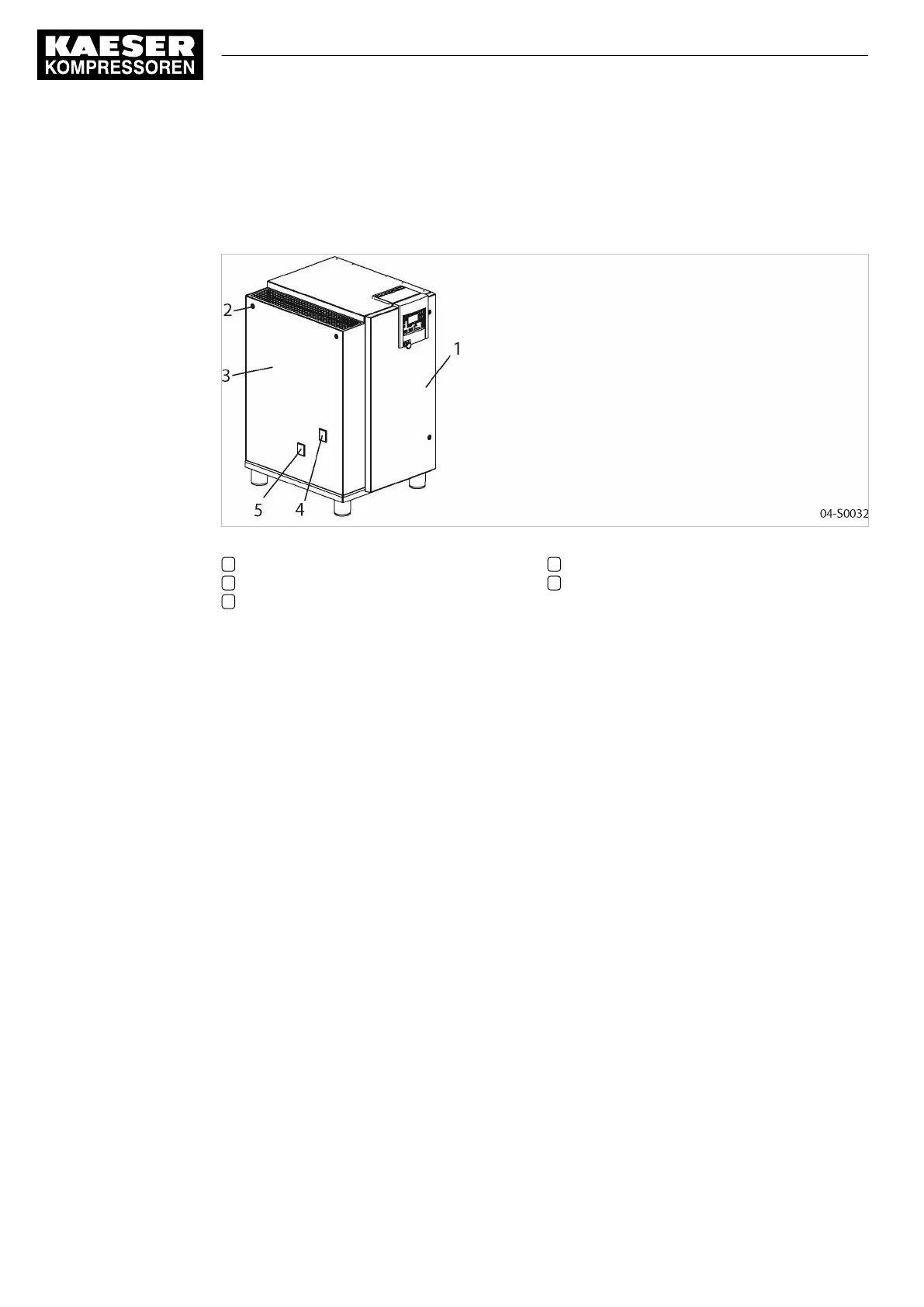

Fig. 3 Enclosure overview
1 Control cabinet door
2 Latch
3 Panel (removable)
4 Sight glass: Oil level indicator
5 Sight glass: V-belt tension
When closed, the enclosure serves various functions:
■ Sound insulation
■ Protection against contact with components
■ Cooling air flow
The enclosure is not suitable for the following uses:
■ Walking on, standing or sitting on.
■ As resting place or storage of any kind of load.
Safe and reliable operation is only assured with the enclosure closed.
Access doors are hinged to swing open and removable panels can be lifted off.
Latches are released by a key supplied with the machine.
4 Design and Function
4.1 Enclosure
26
Operating Manual Rotary screw compressor
SK 901848 21 E
