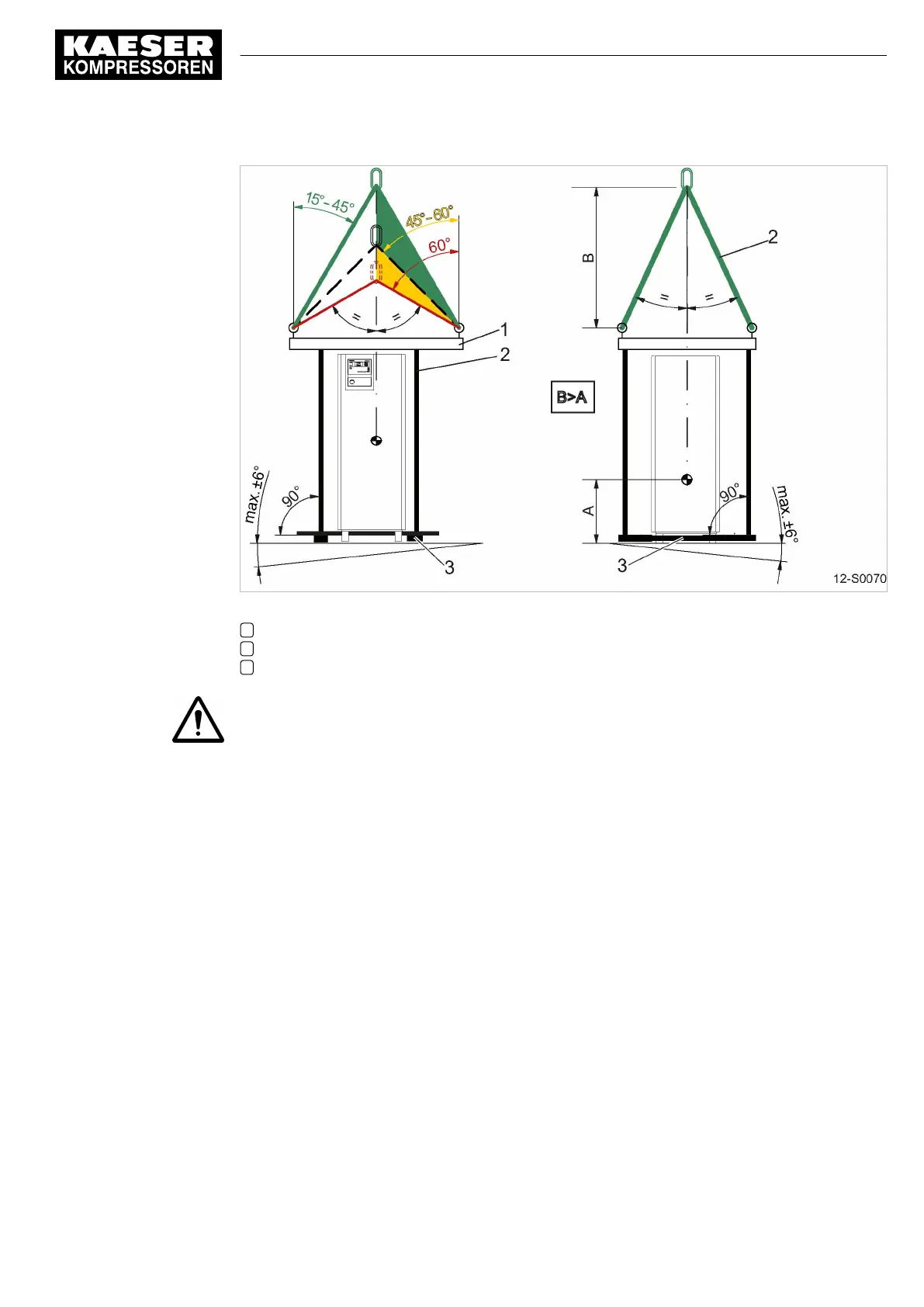

Fig. 34 Transporting with a crane
1 Load carrying devices
2 Attachment resources
3 Crossbeam
1. WARNING!
Risk of accident caused by incorrect use of load-carrying and attachment devices!
➤ Comply with permissible load limits.
➤ Comply with specific safety information of used load-carrying and attachment devices.
2. Properly use load-carrying and attachment devices:
■ Ensure proper distribution of the fastening points relative to the centre of gravity position
(symmetrical load distribution).
■ Ensure equal slope angles of 15° to 45° for attachment devices with multiple strands.
─ Slope angles between 45° and 60° may be unsuitable.
─ Slope angles larger than 60° are prohibited.
■ Ensure the maximum incline of 6° of the machine to the horizontal.
■ Ensure sufficient distance of the attachment devices to the machine.
■ Ensure a positive stability height: Dimension B > Dimension A
■ Do not attach the attachment devices to any machine component.
3. Carry out a lifting test:
Slightly lift the machine to check whether machine remains in horizontal position and does not
teeter.
4. Transport the machine only after a successful lifting test.
12 Decommissioning, Storage and Transport
12.4 Transport
901848 21 E
Operating Manual Rotary screw compressor
