11.4 Modules

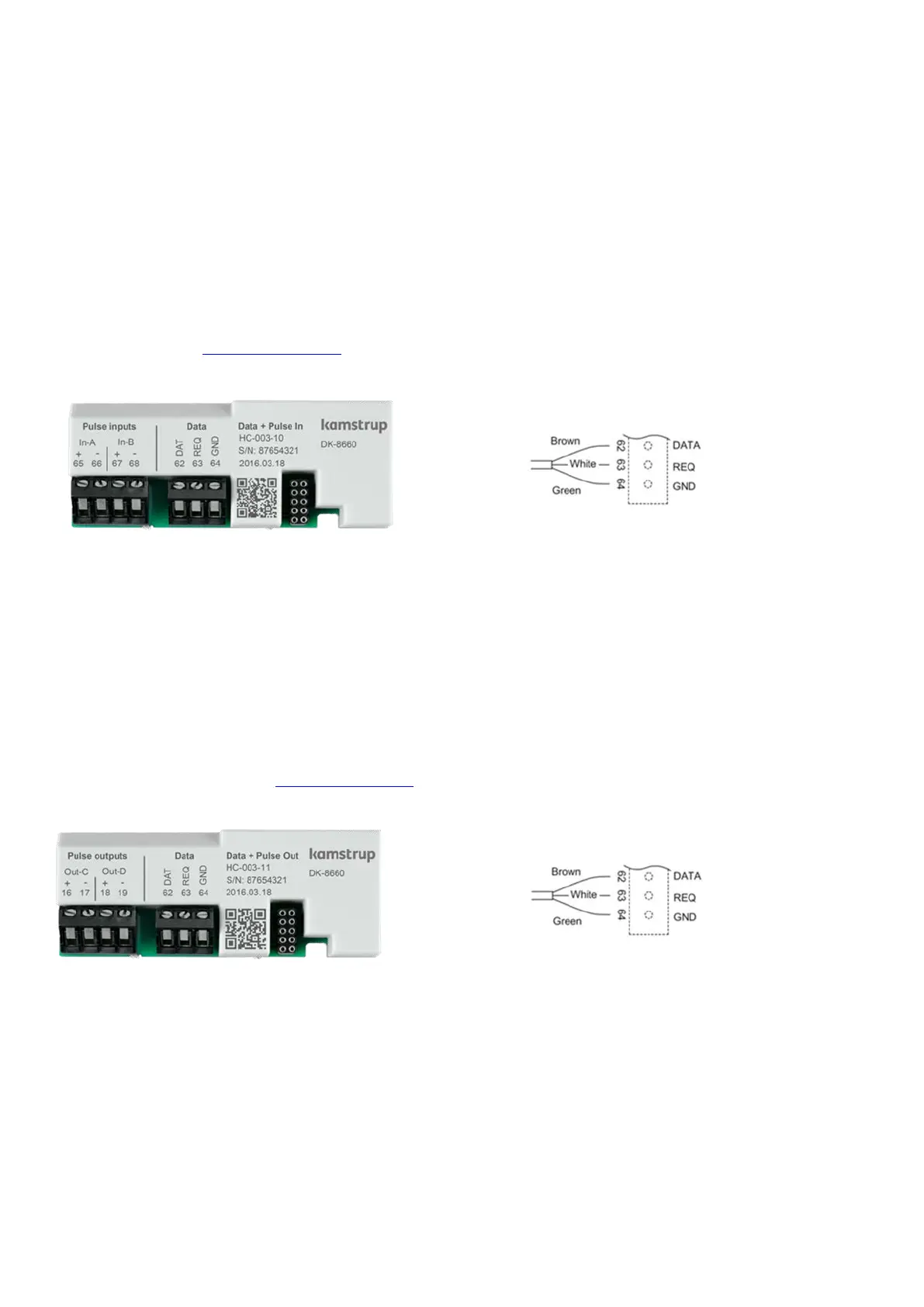

11.4.1 Data + pulse inputs (type no.: HC-003-10)
The module has a galvanically separated data port that interoperates with the KMP protocol (see paragraph 12.2).
The data output can be used for e.g. connection of external communication units or other hard-wired data
communication, which it is not expedient to carry out via optical communication on the calculator’s front.
The data connection is galvanically separated with optocouplers, which makes it necessary to use data cable type
6699-106 in order to adapt the signal for RS232 level, which is suitable for PCs and other RS232-based equipment.
See paragraph 12 for information on data sequences and protocols. If the computer does not have a COM port, data
cable with USB type 6699-098 is used.
If you are using data cable with USB, install a USB driver on PCs with the Windows operating system. The driver can
be downloaded from www.kamstrup.com
> Downloads > Driver for Kamstrup USB.
11.4.2 Data + pulse outputs (type no. HC-003-11)
The module has a galvanically separated data port that interoperates with the KMP protocol (see paragraph 12.2).
The data output can be used for e.g. connection of external communication units or other hard-wired data
communication, which it is not expedient to carry out via optical communication on the calculator’s front.
The data connection is galvanically separated with optocouplers, which makes it necessary to use data cable type
6699-106 in order to adapt the signal for RS232 level, which is suitable for PCs and other RS232-based equipment.
See paragraph 12 for information on data sequences and protocols. If the computer does not have a COM port, data
cable with USB type 6699-098 is used.
If you are using data cable with USB, install a USB driver on computers with the Windows operating system. The
driver can be downloaded from www.kamstrup.com
> Downloads > Driver for Kamstrup USB.
