3.4.7 Pulse inputs A and B >FF-GG<
Up to four communication modules can be mounted in MULTICAL® 803. Pulse inputs are supported on
communication modules placed in slot M1 and slot M2. See paragraph 11 for further information about the
communication modules.
The pulse inputs are used for collection and remote accumulation of pulses from e.g. mechanical water meters and
electricity meters. The pulse inputs function independently of the calculator itself. Therefore, they are not included
in any energy calculation. The four pulse inputs are identically constructed and can be set up to receive pulses from
water or electricity meters.

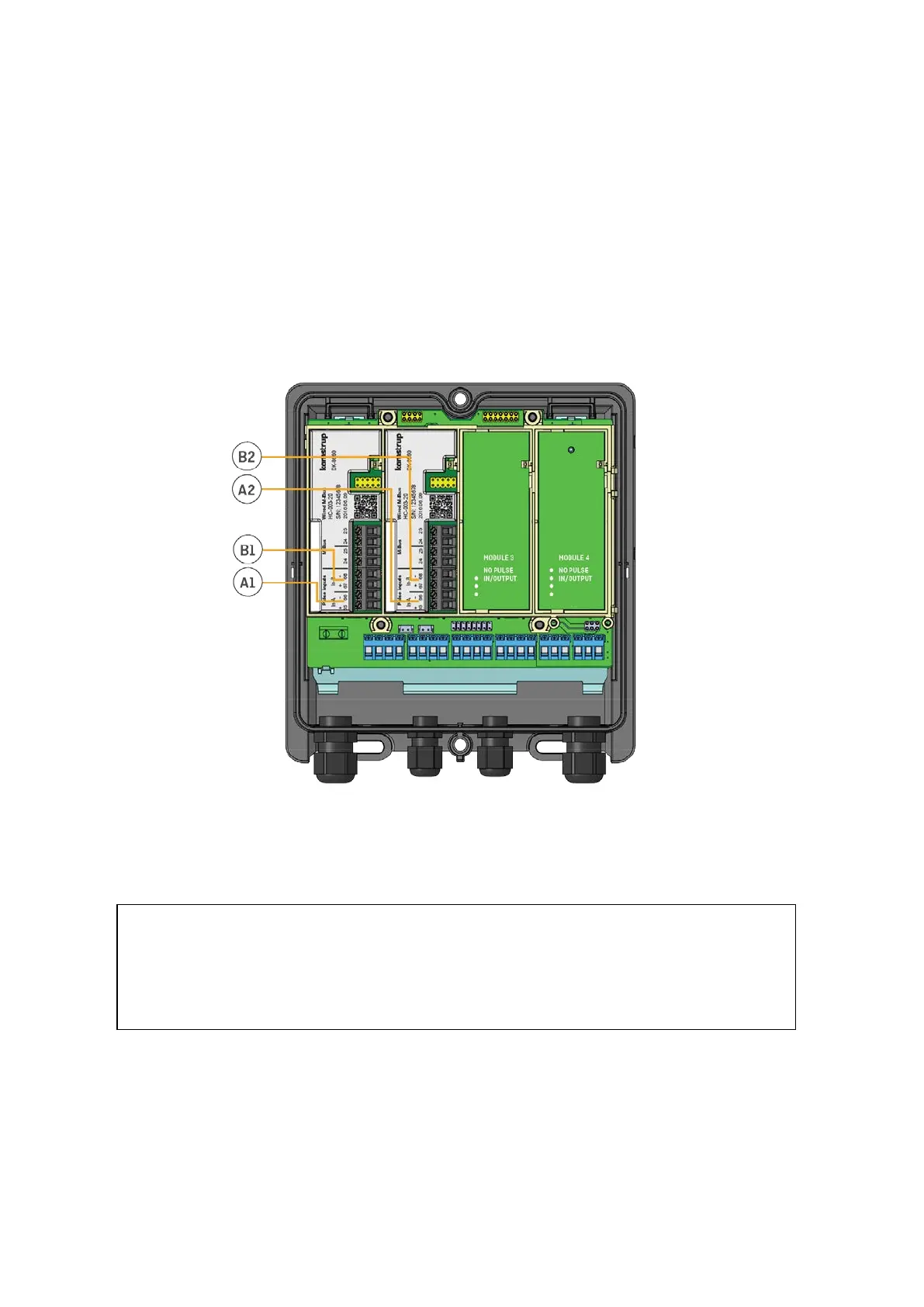

Pulse inputs A and B are placed on selected communication modules. If the module is installed in slot M1 in
MULTICAL® 803, the inputs A1 and B1 are identified, and the same applies to slot M2; with inputs A2 and B2.
The pulse inputs A1 and A2 will always be identically configured through the FF code and
likewise, the pulse inputs B1 and B2 will always be identically configured through the GG code.
Therefore, pay special attention to this when the modules are installed in the meter so that
they have the right module slots in relation to the equipment that they must be coupled with.
