Kamstrup MULTICAL 803 Technical Description

MULTICAL® 803
8
Kamstrup A/S · Technical description · 5512-2360_A1_GB_02.2019
In designing MULTICAL® 803, great importance has been attached to flexibility through programmable functions and
plug-in modules (see paragraph 11) to secure optimum use in a wide range of applications. In addition, the
construction makes it possible to update previously installed MULTICAL® 803 via the PC-program METERTOOL HCW.
This technical description has been written with a view to enabling operations managers, meter installers, consulting
engineers and distributors to utilize all functions comprised in MULTICAL® 803. Furthermore, the description is
targeted at laboratories performing tests and verification.
The technical description is continuously updated. Find the latest edition at
http://products.kamstrup.com/index.php
.

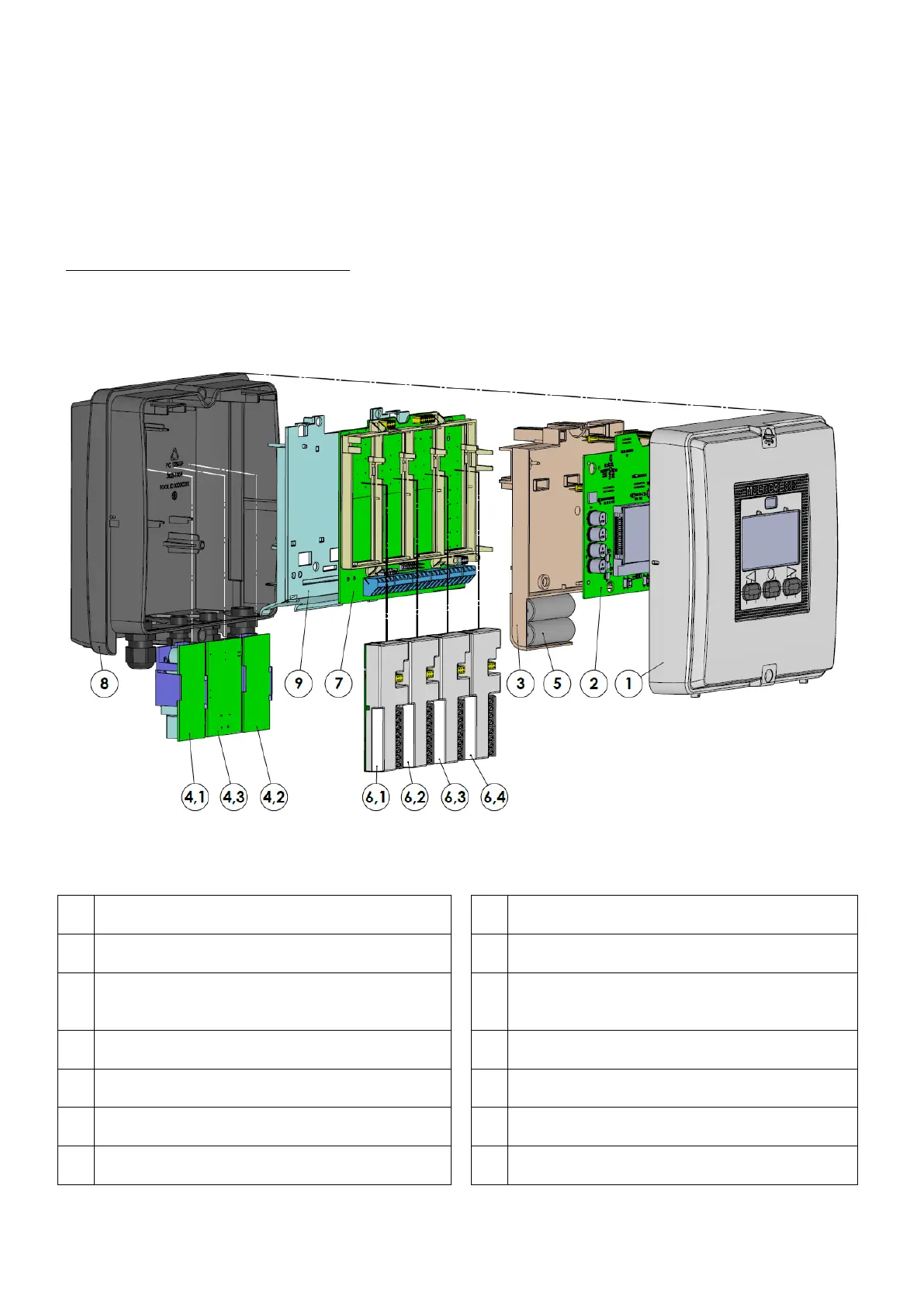

1.1 Mechanical construction
Figure 1
1
Top cover with front keys and laser engraving
6.1
Module slot M1
2
PCB with microcontroller, display, etc.
6.2
Module slot M2
3
Verification cover
Note:
May only be opened by an authorised
laboratory.
6.3
Module slot M3
4.1
Mandatory power supply to supply the calculator and
M1 and M2 (delivered with all variants)
6.4
Module slot M4
4.2
Optional power supply to supply the modules
M3 and M4
7
Connection board
4.3
Optional power supply (isolated 24 VDC)
8
Base cover with cable glands
5
Backup battery
9
Power supply cover
Note: May only be removed by authorized personnel
