KEB C6-COMPACT User Manual

GB - 10
KEB COMBICONTROL

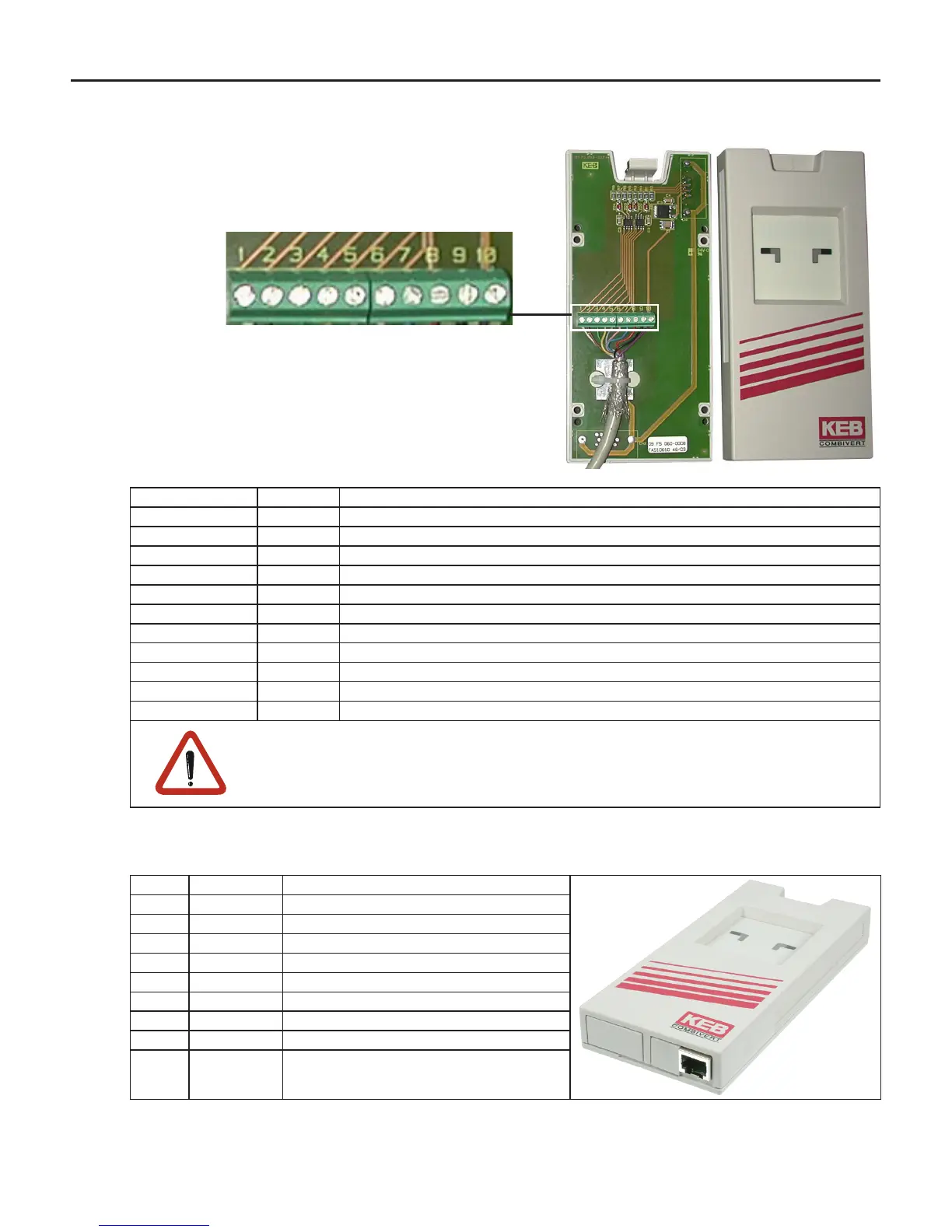

2.2.3 HSP5 Operator with screw terminal (00F5060-9001)
X6E Name Description
1 TXD- Transmission signal-
2 TXD+ Transmission signal+
3 RXD- Receive signal-
4 RXD+ Receive signal+
5 EnTXD- Handshake transmission signal-
6 EnTXD+ Handshake transmission signal+
7 EnRxD- Handshake receive signal-
8 EnRxD+ Handshake receive signal+
9 GND Reference potential
10 VCC +24 V voltage output
- Shielding Shielding (see gure)
No cables may be connected to terminal VCC. High voltage can destroy
the interface in the control.
2.2.4 HSP5 Operator with RJ45 socket (00F5060-9002)
RJ45 Name Description
1 RXD+ Receive signal+
2 RXD- Receive signal-
3 GND Reference potential
4 TXD+ Transmission signal+
5 TXD- Transmission signal-
6 GND Reference potential
7 EnRxD+ Handshake receive signal+
8 EnRxD- Handshake receive signal-
- Shielding shielding
The connection to the control is realized with a commercial CAT5 Patch cable for this operator.
X6E
