2.11 Fieldbus interface
Depending on the article number different eldbus modules are integrated via the eldbus
option cards X6D. Fieldbuses PROFIBUS-DP, CAN and INTERBUS are available at the time.
The eldbus modules operate as slave and are accessed via the library "KebPLC“. Further-
more there are nished function blocks for each supported eldbus, which allow process data
allocation and access via the parameterizing channel.

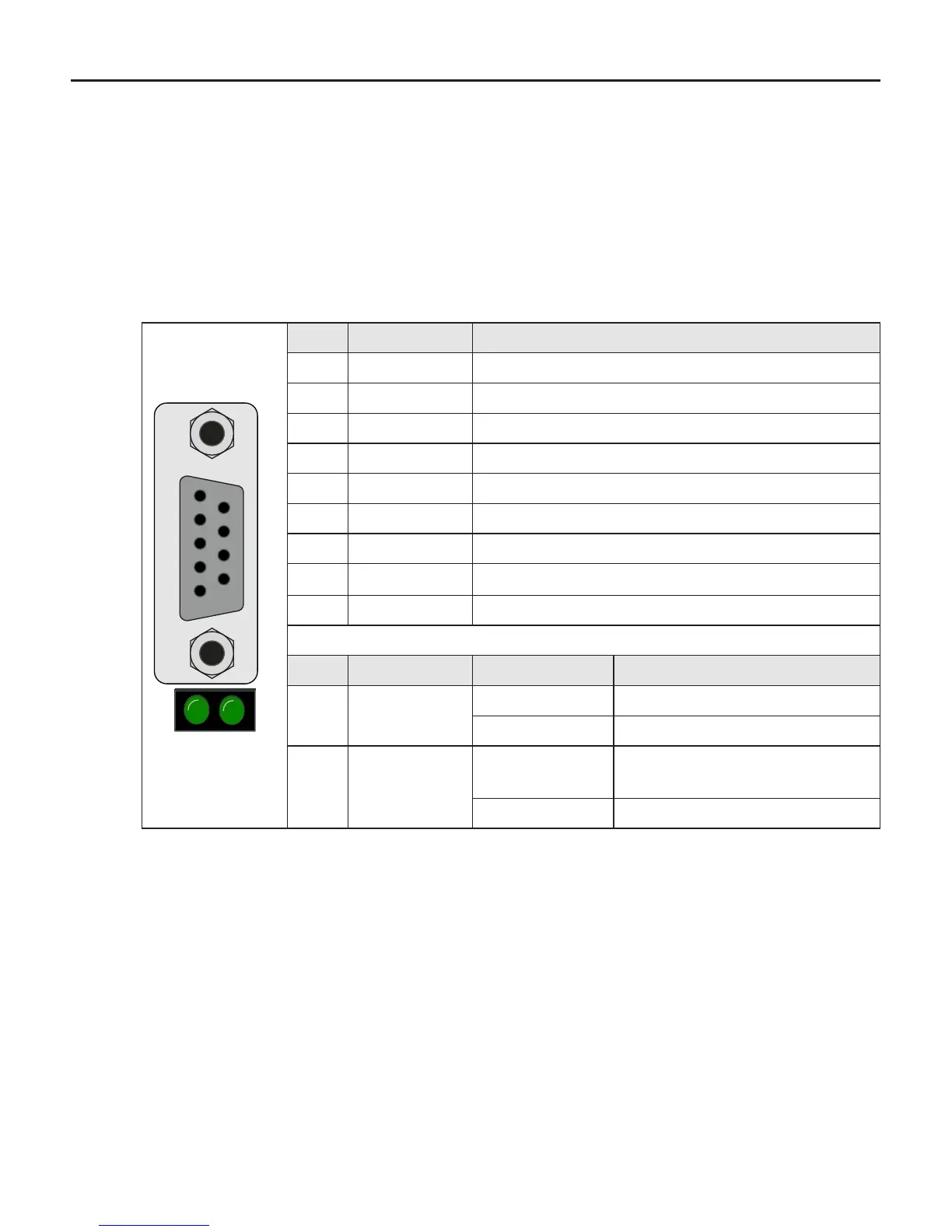

2.11.1 Fieldbus interface PROFIBUS DP
5 4 3 2 1
9 8 7 6
LD6 LD5
PIN Signal Description
1 ---- reserved
2 ---- reserved
3 RxD/TxD-P transmit/receive signal P
4 ---- reserved
5 DGND data reference potential
6 VP supply voltage for terminating resistor
7 ---- reserved
8 RxD/TxD-N transmit/receive signal N
9 ---- reserved
LED Signal Light pattern Meaning
LD5 Ready
on ready for operation
off not ready for operation
LD6 Data
on Data are transmitted by the
PROFIBUS
off no data transmission
The connection is described in the installation instruction (8.021). These can be downloaded
from www.probus.com.
