GB - 21
KEB COMBICONTROL

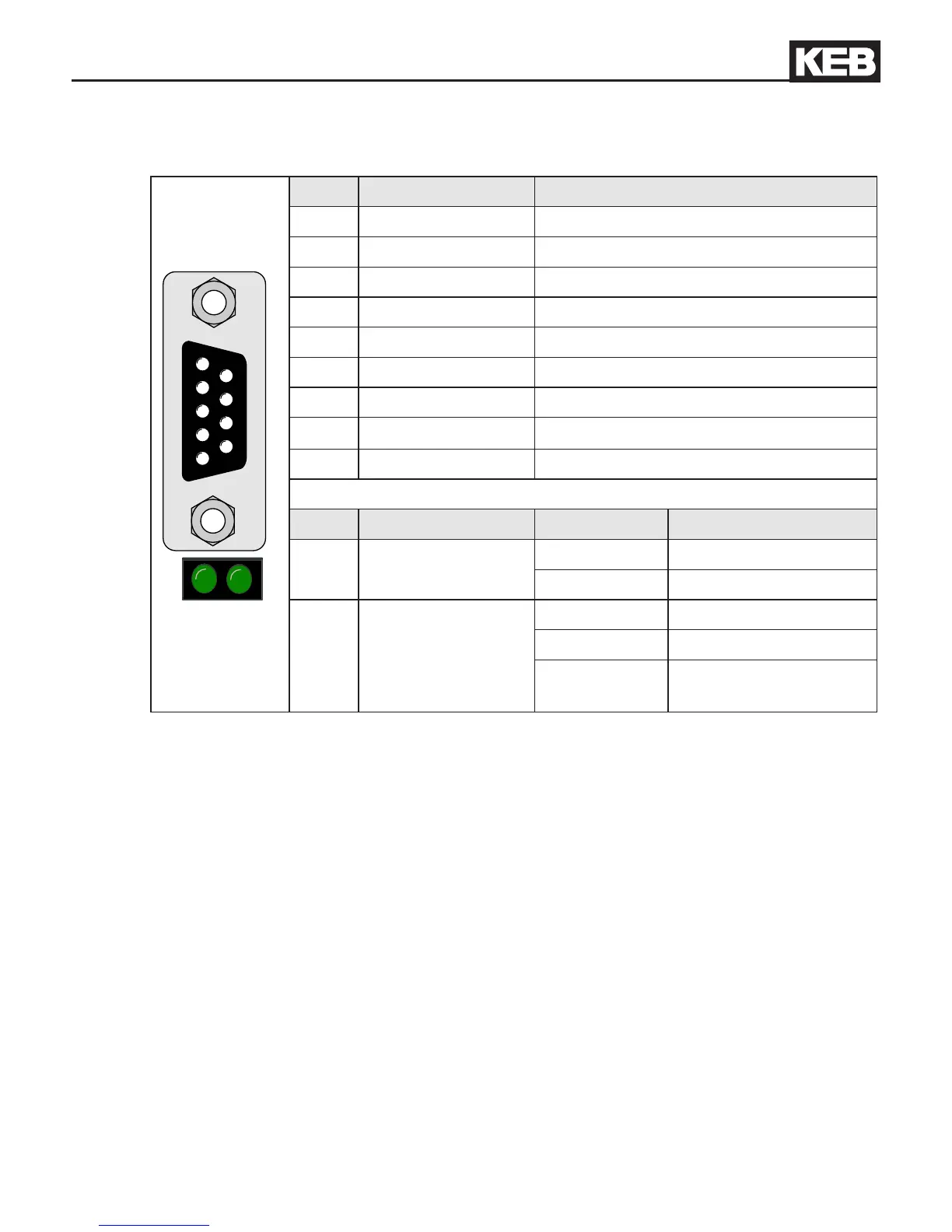

2.11.2 CAN Bus interface
54321
9876
LD6 LD5
PIN Signal Description
1 reserved not connected
2 CAN_L CAN bus signal dominant low
3 CAN_GND not connected
4 reserved not connected
5 CAN_SHLD not connected
6 GND not connected
7 CAN_H CAN bus signal dominant high
8 reserved not connected
9 CAN_V+ not connected
LED Signal Light pattern Meaning
LD5 Ready
on ready for operation
off not ready for operation
LD6 CAN node status
on operational
off Others
blinking pre_Operational, cyclic
with 200 ms OFF
The basic physical characteristics and the connection are described in CiA Draft Standard
102 Version 2.0 and are not explained here.
