GB - 9

KEB COMBICONTROL

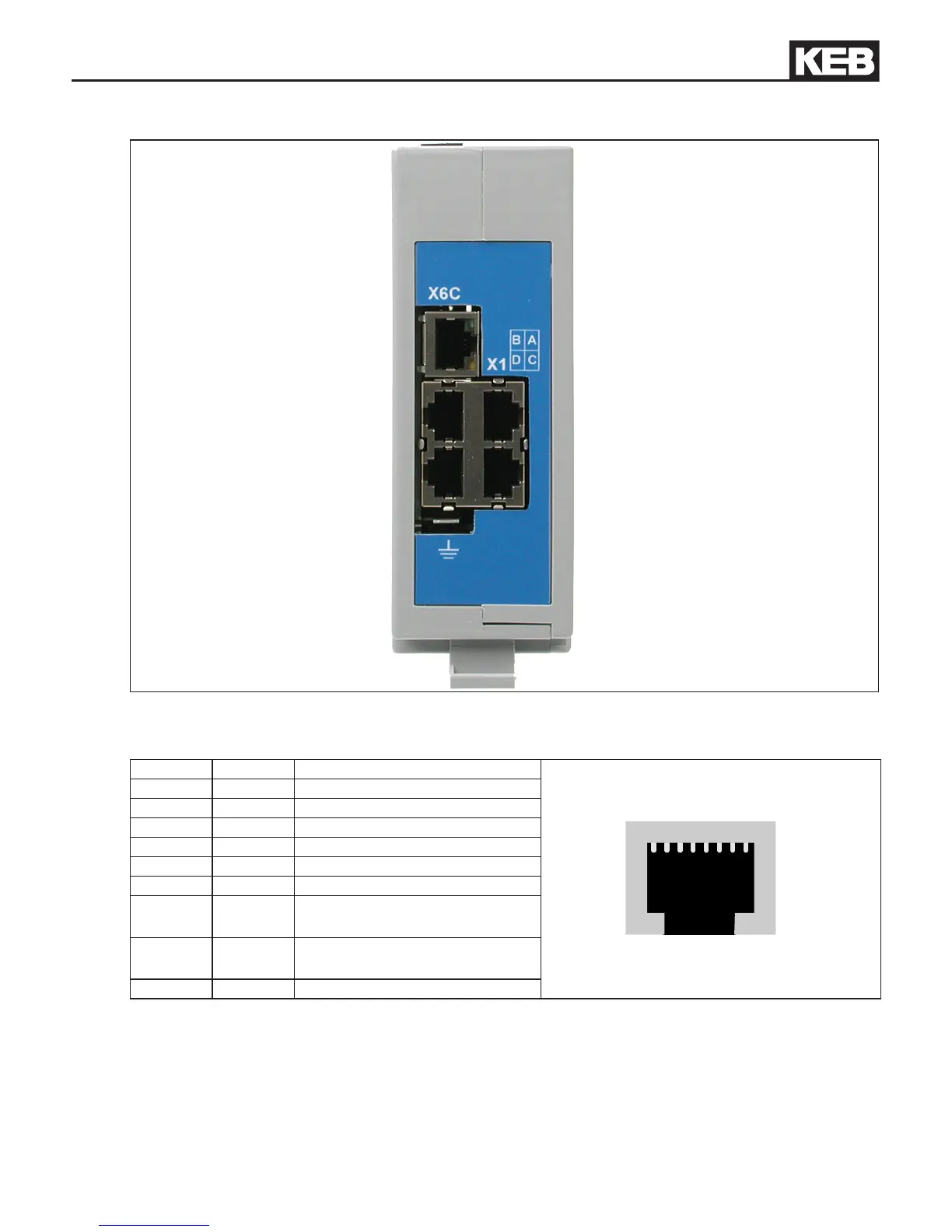

2.2.1 View of the inverter interfaces X1A...X1D for the axes 1..4

X1B (axis 2) —— —— X1A (axis 1)

X1D (axis 4) —— —— X1C (axis 3)

2.2.2 Assignment of the HSP5/485 interfaces

X1A…D Name Description Socket (top view)

1 TXD+ Transmission signal+

1 8

2 TXD- Transmission signal-

3 GND Reference potential

4 RXD+ Receive signal+

5 RXD- Receive signal-

6 GND Reference potential

7 EnTXD+ Handshake transmission

signal+

8 EnTXD- Handshake transmission

signal-

- Shielding shielding
