KEB C6-COMPACT User Manual

GB - 16
KEB COMBICONTROL

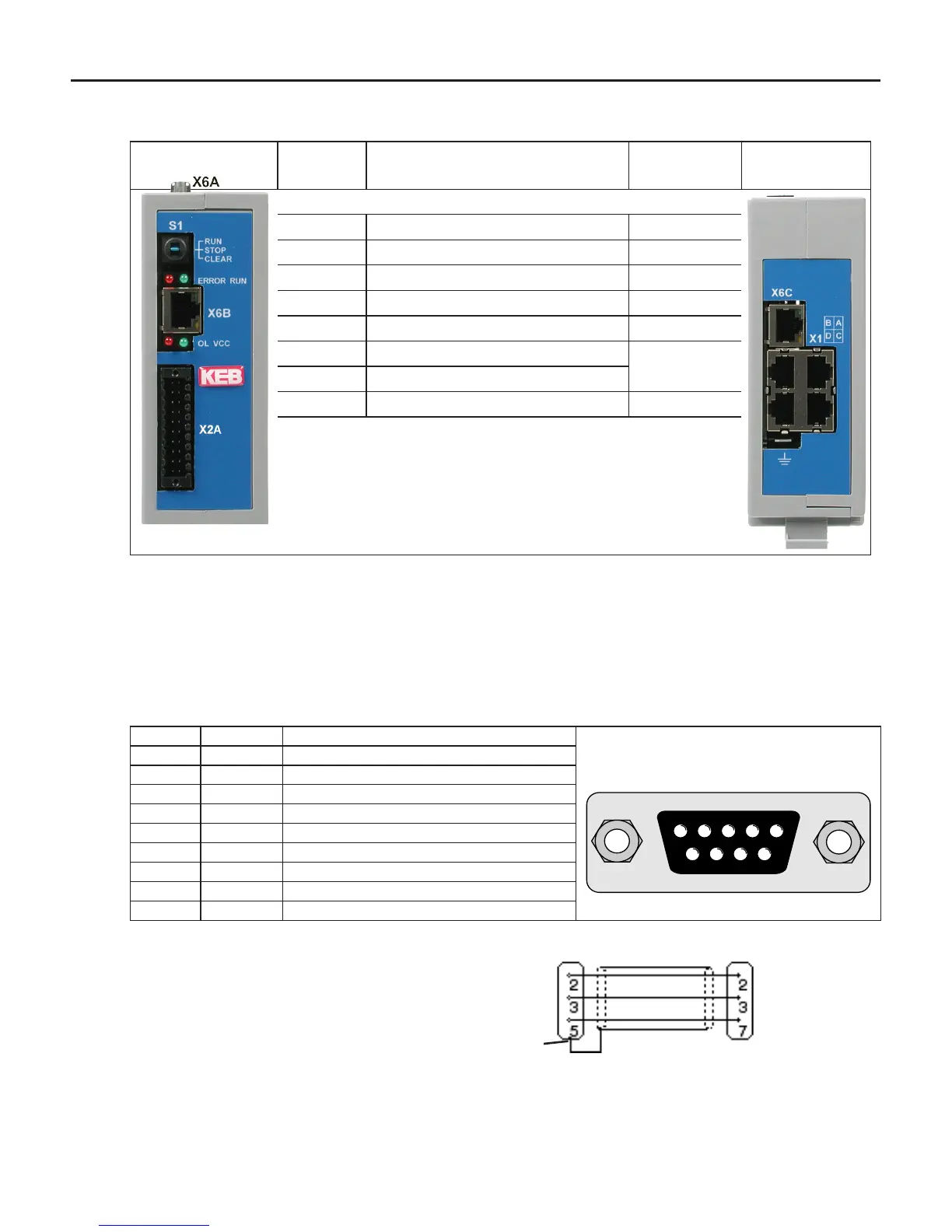

2.4 The operating unit
View Front Name Function Addition View from the
bottom
S1 Multi function switch/button
RUN Run-LED green
ERROR ERROR-LED red
OL Overload red
VCC Voltage supply (US) green
X6A Serial interface COMBIVIS
X6B Ethernet interface
COMBIVIS/
CoDeSys
X6C Ethernet interface
X1A…D Axis interfaces
2.5 Serial interface (X6A)
The socket X6A is a serial RS232/485 interface. It serves for the connection of the control
with a PC or other operating units via the protocol DIN66019II, whereby the node address
is set to 0. Alternatively any access to this interface can be done by the IEC control program
and this offers different protocol variants (library „SysCom“).
X6A Name Description SUB-D9 socket
1 PGM No wiring ! (top view)
2 TxD Transmission signal RS232
54321
9876
3 RxD Receive signal RS232
4 RxD-A Receive signal RS485 A
5 RxD-B Receive signal RS485 B
6 PGM+ No wiring !
7 DGND data reference potential
8 TxD-A Transmission signal RS485 A
9 TxD-B Transmission signal RS485 B
9-pol. SUB-D coupling 9 pole SUB-D connector
Part.No.: 0058025-001D
RS 232 cable
2.8 m
Housing (PE)
PC C5
