KEB C6-COMPACT User Manual

GB - 12
KEB COMBICONTROL
2.3 Voltage supply and digital inputs and outputs

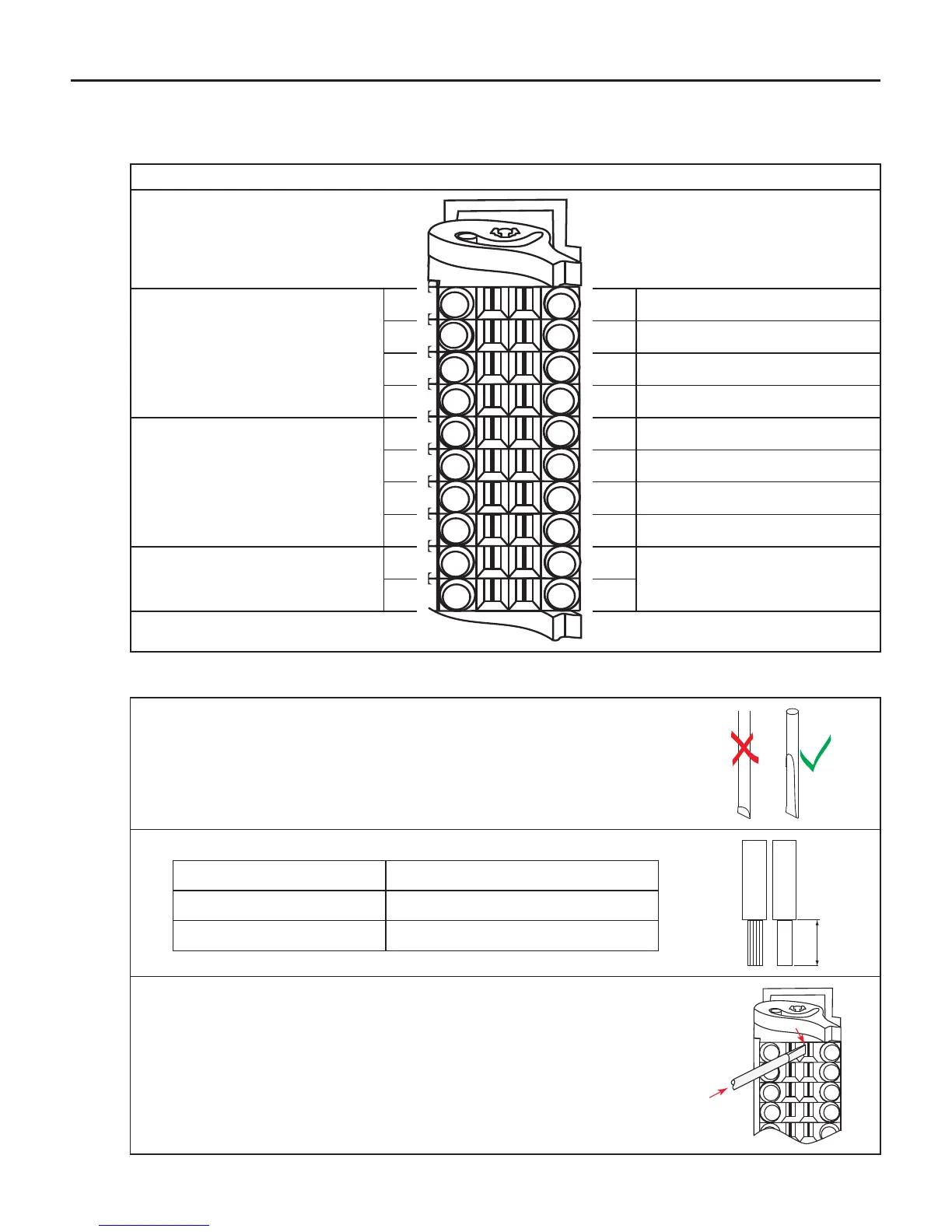

Figure 2.3 Socket X2
Voltage supply Digital in- and outputs
+ Voltage input (UM)
(internally interconnected)
1 11
Digital input 0
2 12
Digital input 1
3 13
Digital input 2
4 14
Digital input 3
- Voltage input (UM)
(internally interconnected)
5 15
Digital output 0
6 16
Digital output 1
7 17
Digital output 2
8 18
Digital output 3
+ Voltage input (US)
9 19
PE
- Voltage input (US)
10 20
2.3.1 Assembly of the wires
Required tools:
Screw driver
SD 0,4 x 2.5 (DIN 5264)
1. Strip cable
Cable permissible cross-section
exible 0,2…1 mm
2
Wire-end ferrule 0.13…0.34 mm
2
7mm
2. Plug screw driver mid into the square slot
