GB - 15
KEB COMBICONTROL
2.3.5 Digital outputs (X2.15…18)
The digital outputs are potential-free to the control voltage US. A free-wheeling diode is inte-
grated in the unit, so that no external wiring is necessary at inductive load.
4 digital outputs 0...3
%QB0 Condition of the digital inputs 0…3.
Address can be changed in the unit editor.

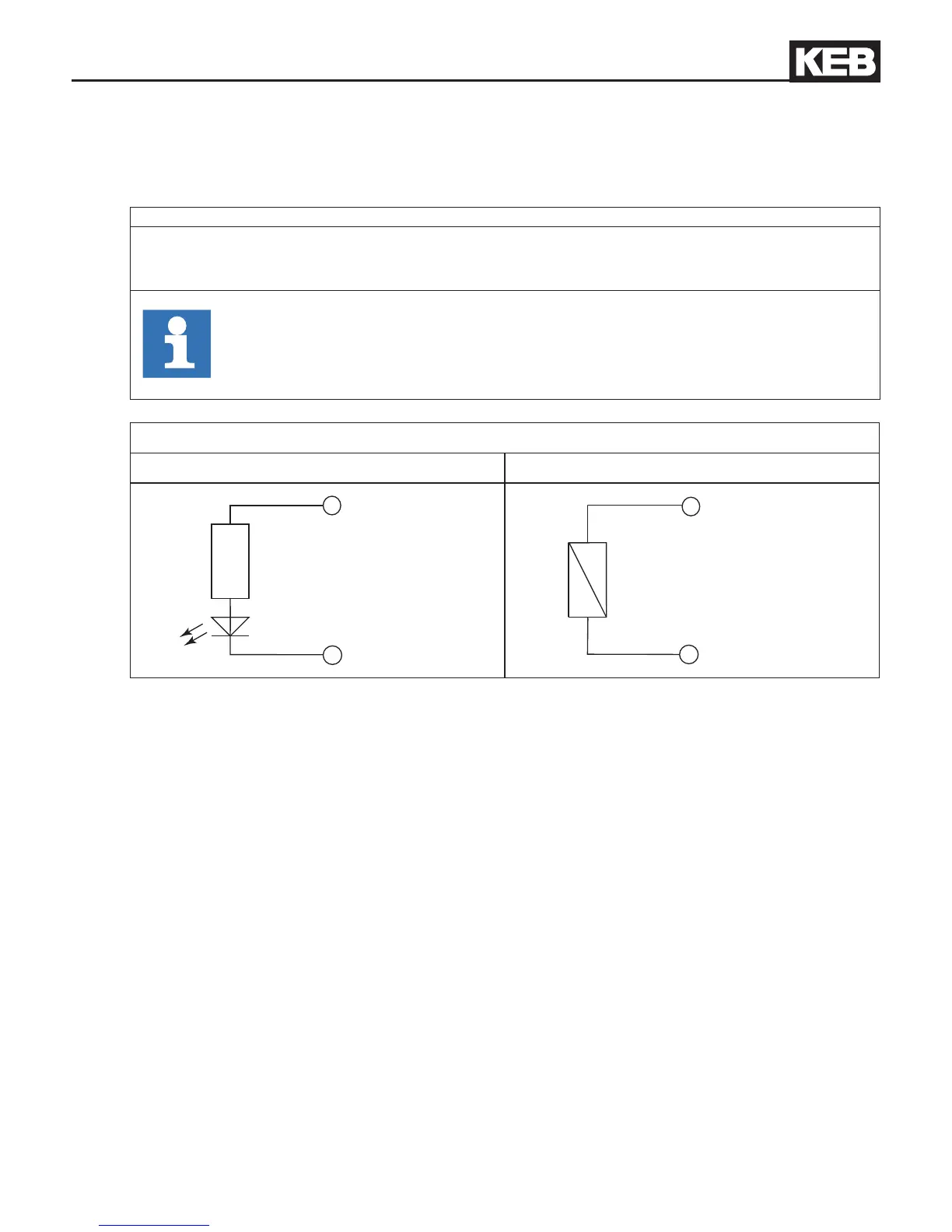

Picture 2.3.5 Connection of the digital outputs
Ohmic load Inductive load
X 2.16 (O1)
X 2.6 (- UM)
X 2.17 (O2)
X 2.7 (- UM)
