Functional DescriptionSet Value and Ramp Adjustment
Section
Page
Date
Chapter
The direction of rotation can be activated by assigning terminal „F“ (forward X1.10) or
„R“ (reverse X1.11), If both terminals are assigned simultaneously then the direction
of rotation „forward“ has priority.
Connection / activation of direction of rotation see Chapter 6.3 „Digital In- and Out-
puts“
.
The direction of rotation can be defined by the adjusted set value signal. For analog
singals through adjustment of positive or negative voltages. For digital signals through
adjustment of positive (without sign) or negative values (negative sign in the display).
For the factory setting apply following rules:
Set value 0 -> Rotation forward (F
set
=0Hz)
Positive value -> Rotation forward
Negative value -> Rotation reverse
With parameter di.20 the adjustment of direction of rotation can be adapted to special
applications.
di.20 Bit
dec. 2 1 0
0000
1001
2010
3011
4100
5101
6110
7111
Bit 0: Behaviour of inputs X1.10 and X1.11
0: Run/Stop
1: Forward/Reverse
Bit 1: LS-behaviour at set value-dependent rotation
setting and set value 0
0: no LS
1: LS if Kl. X1.10/11=0 and oP.3=LS
Bit 2: Behaviour of negative set values at digital
rotation setting or adjustment via terminal strip
0: Negative set values are set to 0
1: Absolute-value generation of set value
di.20 Functioning mode of
rotation setting
2. Direction of rotation via
terminal strip
3. Direction of rotation via
sign of set value

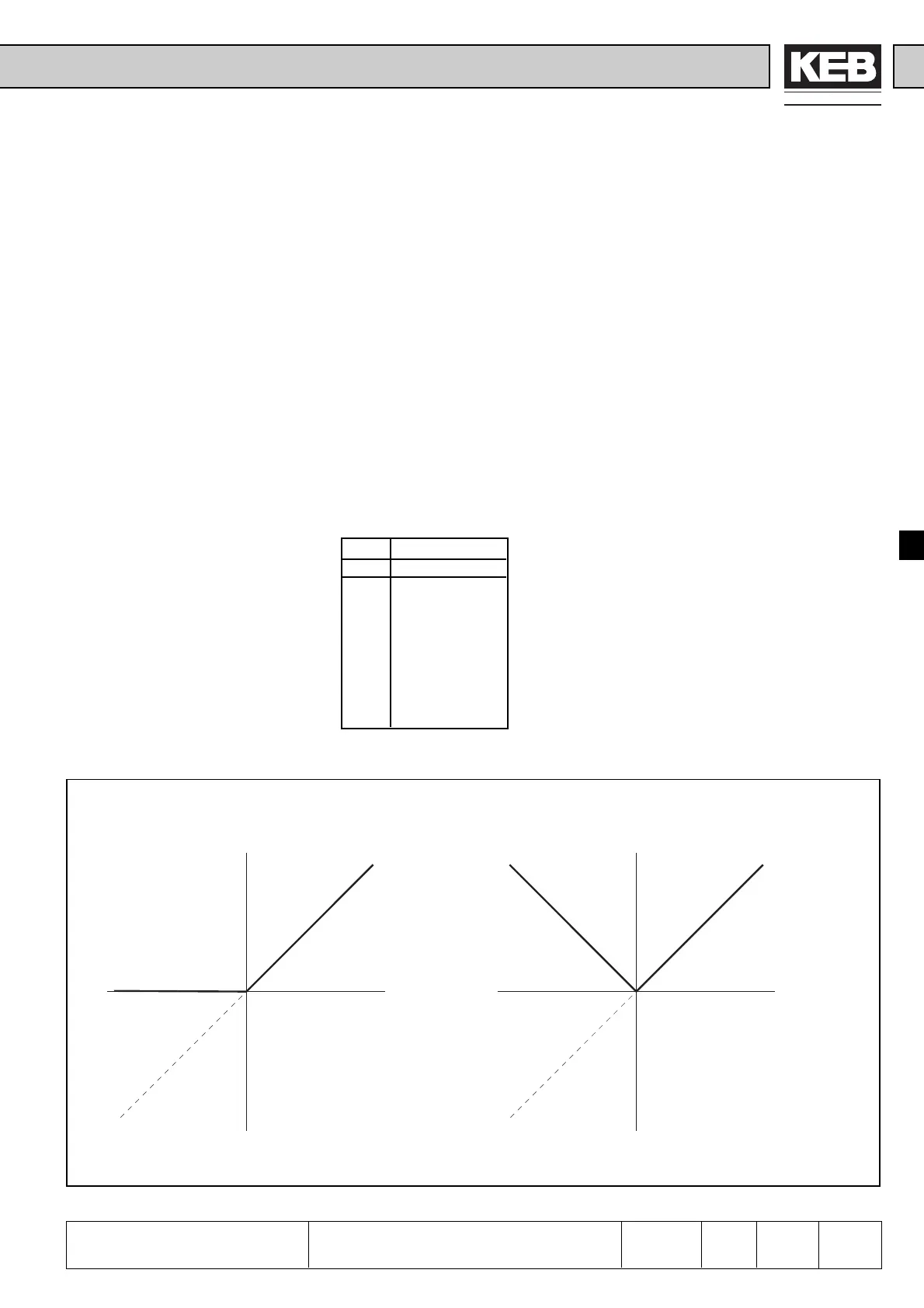

Picture 6.4.2.c Principle of di.20 Bit2
Set value
Analog_internal
Set value
Analog_internal
Bit 2 = „0“ Bit 2 = „1“
