7.2.2 Basic Settings in
the CP-Mode
After switch-on with factory setting the inverter is in the CP-Mode. The preadjusted
values can be used for 90 % of all applications at the initial start-up. However, the
following parameters should be checked and, if necessary, adjusted.
þ Corner frequency CP.5
þ Minimum and maximum frequency CP.9/CP.10
þ Acceleration and decelerationtimes CP.7/CP.8
þ Boost CP.6
7.2.3 Set value
selection
After the basic settings have been made, it must now be determined how the set
value input is done.
Set value input
In CP-
or
Application Mode?
Via
terminal strip
or
operator?
Via
voltage signal
or
current signal?
0...20mA
oder
4...20mA?
CP.24 to value „0“;
terminal X1.8/X1.9
or/and X1.17
CP.24 to value „1“;
current signal
at terminal X1.17
CP.24 to value „2“;
current signal
at terminal X1.17
Switch terminal X1.4
and adjust frequency
with CP.11
see Chap. 6.4
CP-Mode
Operator
Terminal strip
0...10V Current signal
0...20mA
4...20mA

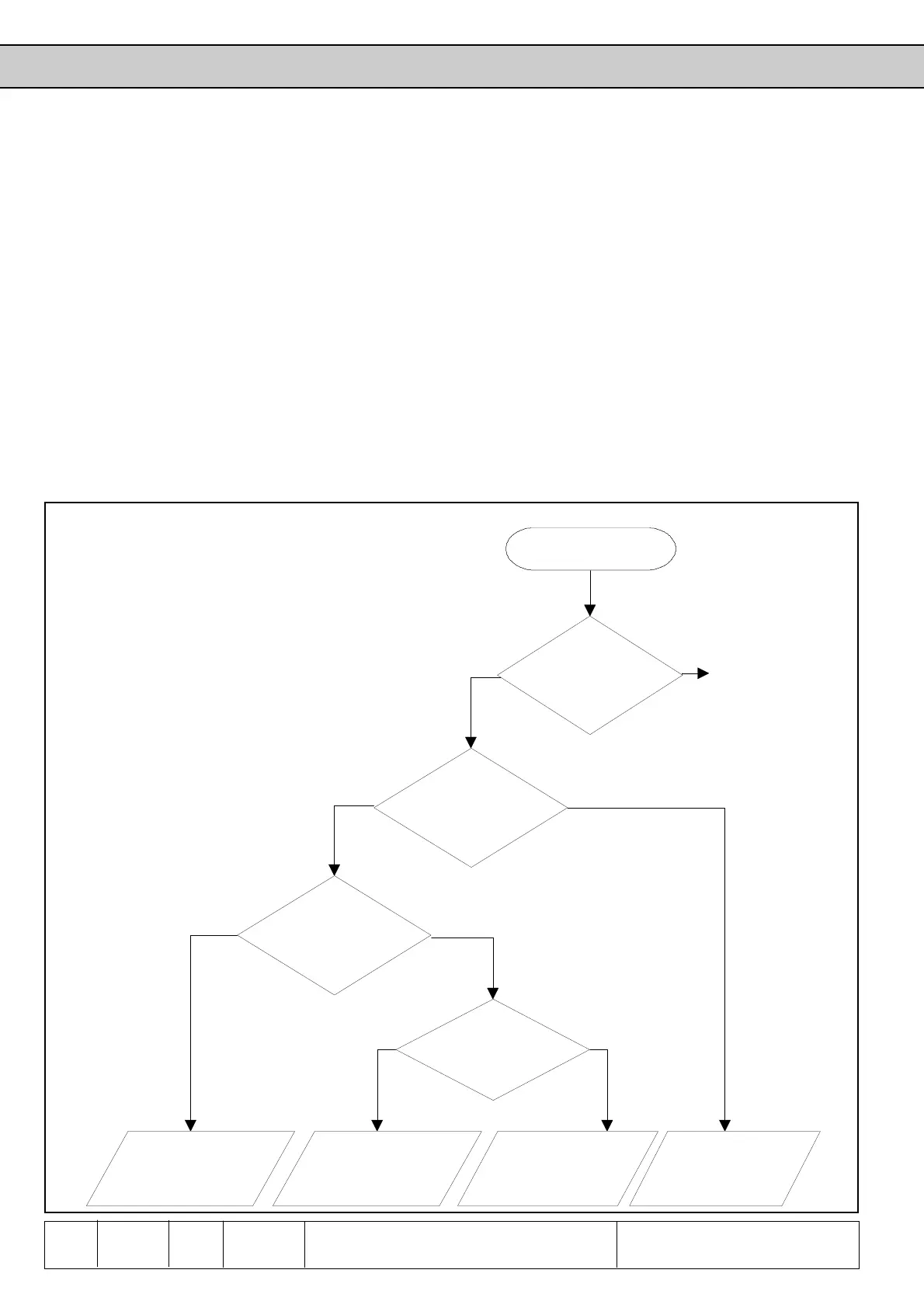

Picture 7.2.3 Setvalue input
