KEB COMBIVERT F4-C Applications Manual

4 3
KEB COMBIVERT F4-C
12
Name: Basis
20.03.98
CP - Parameter
© KEB Antriebstechnik, 1997
All Rights reserved
Operation
Chapter
Section Page
Date
CP.10
CP. 9
U
Ref
f
0 V
0 mA
4 mA
10 V
20 mA
20 mA

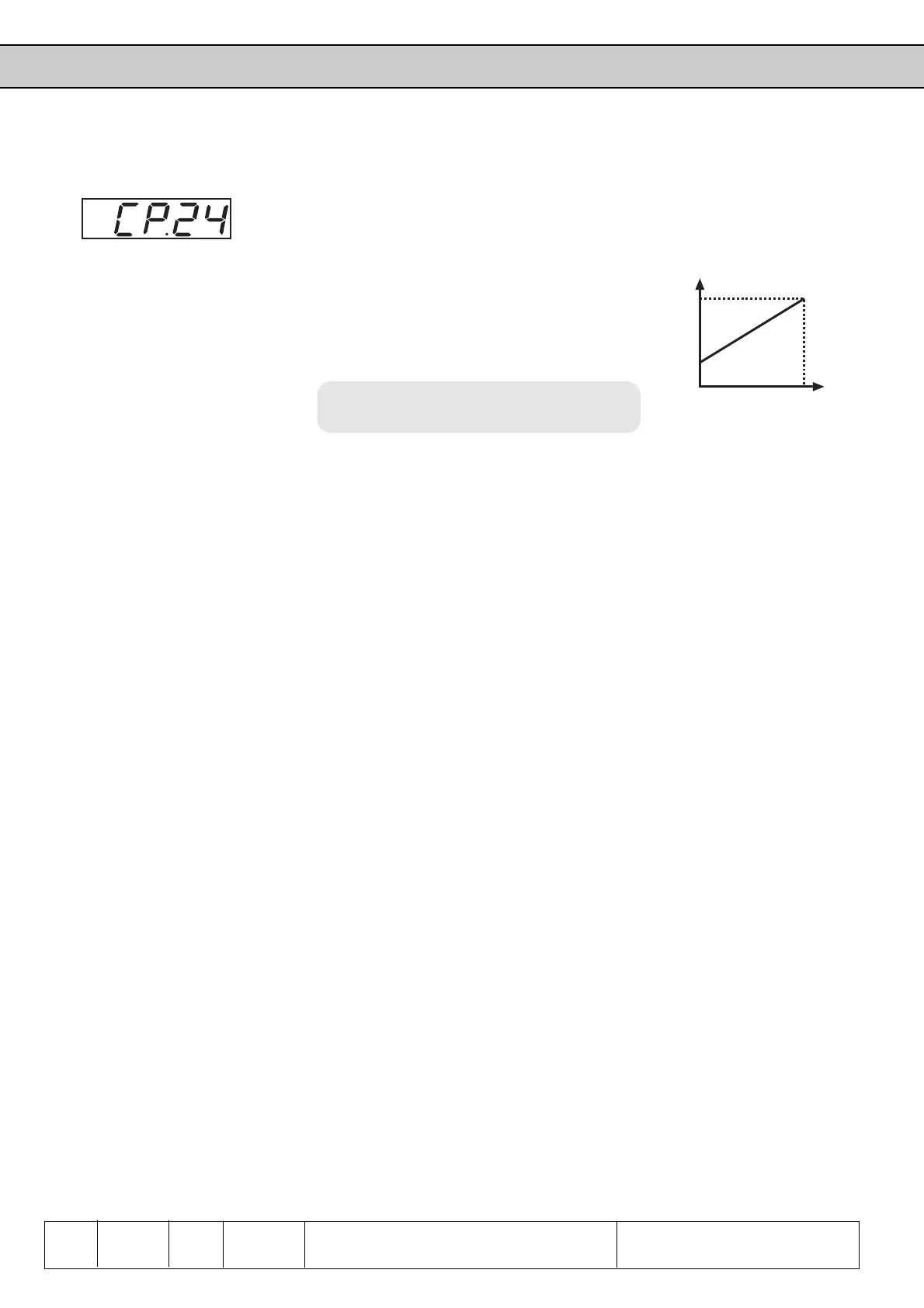

Setpoint signal The setpoint input REF (terminal X1.17) can be triggered with different signal levels.
It acts adding to the differential voltage input (terminal X1.8 and X1), but can also
serve as sole input for the setpoint value adjustment. To evaluate the signal correctly,
the parameter must be adapted to the signal source.
Value Setpoint signal
0 0...10 V DC / Ri = 4 kOhm
1 0...20 mA DC / Ri = 250 Ohm
2 4...20 mA DC / Ri = 250 Ohm
Factory setting: 0
Customer setting: _______
