KEB COMBIVERT F5 MULTI User Manual

6
6
69
KEB COMBIVERT F5-M / S
Name: Basis
12.05.04
Section PageDate
© KEB Antriebstechnik, 2002
All Rights reserved
Chapter
Functional DesriptionMotor Data and Controller
dr.27
dr.24
dr.23
dr.25

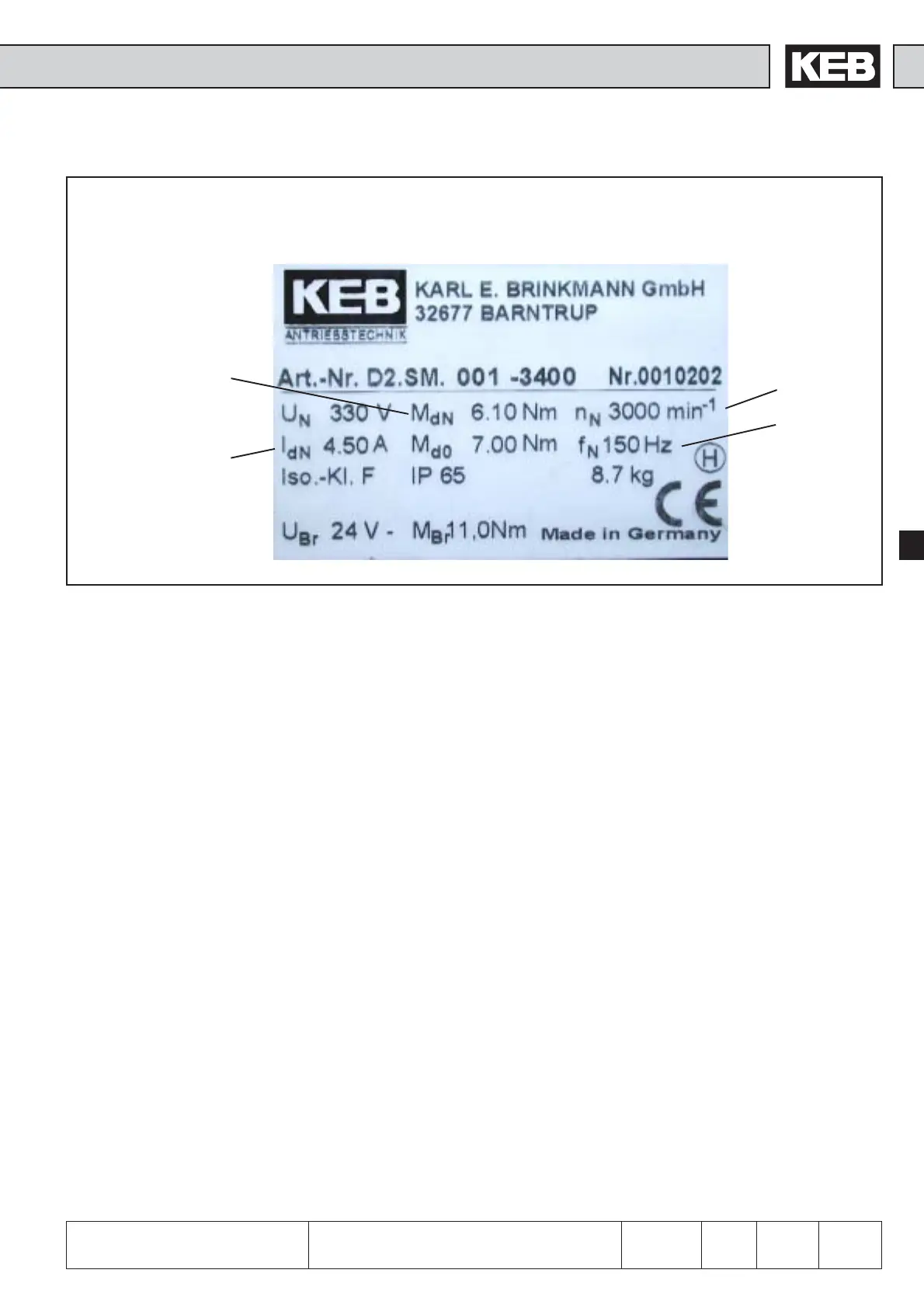

Fig. 6.6.6 Example for servo name plate
6.6.6 Motor Data DSM
Following parameters can be taken directly from the name plate of the three-phase
synchronous motor (DSM) and entered:
-dr.23 DSM rated current 1,0...710,0 A
-dr.24 DSM rated speed 0...32000 rpm
-dr.25 DSM rated frequency 10...1600,0 Hz
-dr.27 DSM rated torque 0,1...6553,5 Nm
Motor data from name plate
Motor data from data sheets
Following data can be taken from the data sheets of the motor or, if necessary,
request it from the manufacturer: :
- dr.26 DSM EMK voltage constant 0...1000 V/1000 rpm
- dr.28 DSM current for zero speed 0,0...700,0 A
- dr.30 DSM stator resistance 0,000...50,000 Ohm
- dr.31 DSM inductance 0,01...500,00 mH
