Functional Description Parameter Sets
1
2
3
4
5
6
With these parameters the time is adjusted,
- with which the activation of a new set is delayed (Fr.5)
- with which the deactivation of an old set is delayed (Fr.6)
In the case of set changeover the OFF time of the old set and ON time of the new set
are added up.
Set 1
Set 3
Set 2
Set 1
Set 3
Set 2
Set 0
Set 0
Adjusted set
Current set

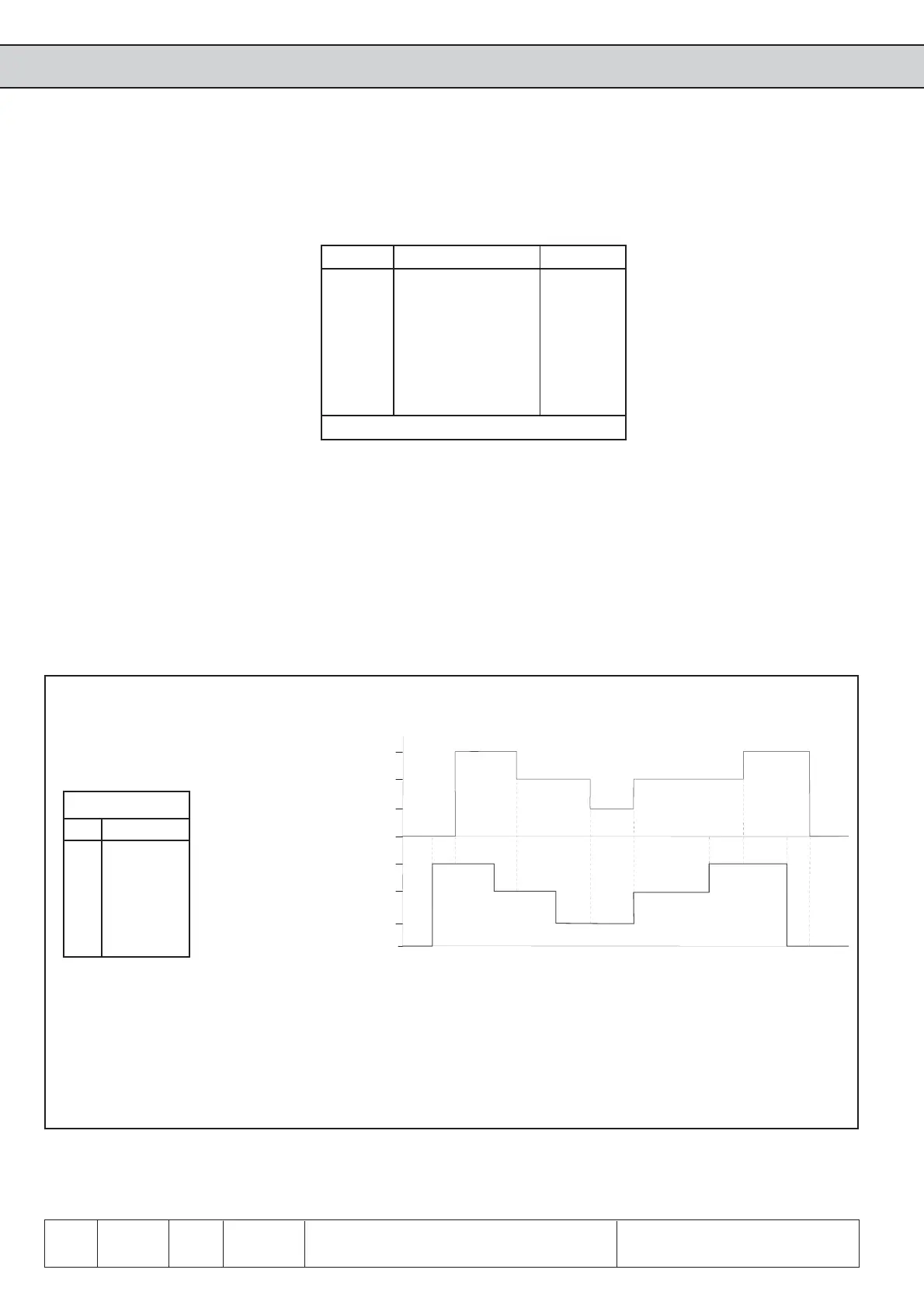

Fig. 6.8.9 ON and OFF-delay
Example
on off
Set Fr.5 Fr.6
00 s0 s
12 s0 s
20 s1 s
32 s2 s
1: ON delay for set 3 of 2s
2: OFF delay for set 3 of 2s
3: OFF delay for set 2 of 1s +
ON delay for set 1 of 2 s
4: immediate changeover as no delay is adjusted
5: OFF delay for set 2 of 1s +
ON delay for set 3 of 2s
6: OFF delay for set 3 of 2s
6.8.9 Parameter Set
ON/Off Delay
(Fr.5, Fr.6)
6.8.8 Locking of Para-
meter Sets
Parameter set, that shall not and must not be selected, can be locked with Fr.3. If one
of the locked sets is selected, the inverter switches off with set selection error (E.SEt).
Value Locked set Example
10 -
21 -
42 4
83 -
16 4 -
32 5 32
64 6 -
128 7 -
Set 2 and Set 5 locked Sum 36
Fr.3 Parameter set lock
