KEB COMBIVERT F5 MULTI User Manual

4
CP - Parameter Operation
4
315
KEB COMBIVERT F5-M / S
Name: Basis
17.05.04
Section PageDate
© KEB Antriebstechnik, 2003
All Rights reserved
Chapter

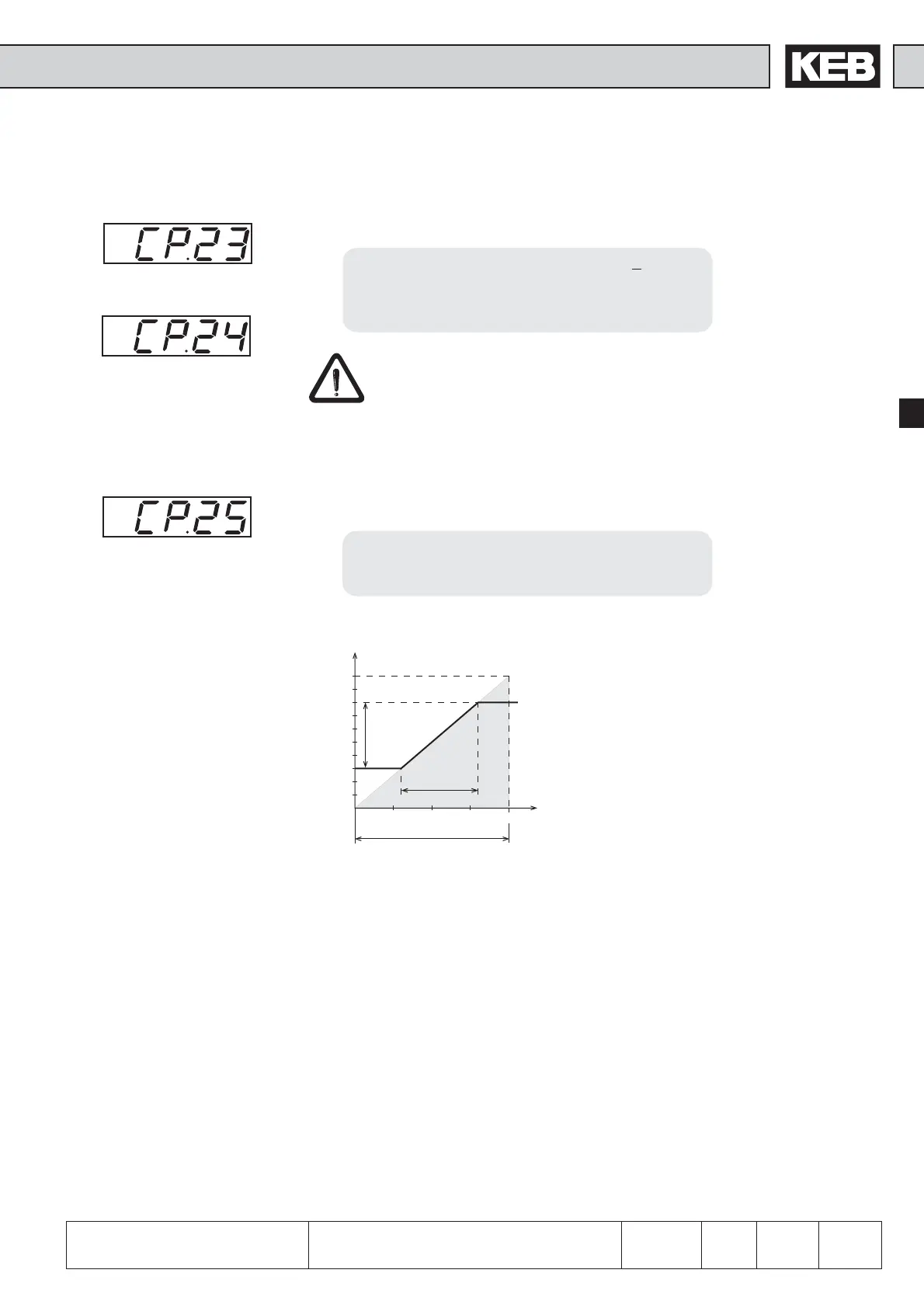

Acceleration time forward Defines the time needed to accelerate from 0 to 1000 rpm. The actual acceleration
time is proportional to the speed change (∆ n).
Adjustment range: 0,00...300,00 s
Resolution: 0,01 s
Factory setting: 5,00 s
∆ n speed change
∆ t acceleration time for ∆ n
Example:
The drive should accelerate from 300 rpm to 800 rpm in 1 s.
∆∆
∆∆
∆ n = 800 rpm - 300 rpm = 500 rpm
∆∆
∆∆
∆ t = 1 s
∆ t1 s
CP.25 = ññññ x 1000 rpm = ñññññññññ x 1000 rpm = 2 s
∆ n 500 rpm
t [s]
CP.25
n [rpm]
1000
800
300
0
0,5 1 1,5 2
∆ t
∆ n
Step speed 1 and 2
Input I1
Input I2
Two fixed speeds can be adjusted. The selection is made by the inputs I1 and I2.
If adjustments are made that are outside the fixed limit of CP.22, then the speed is
internally limited. Rotation source oP.18 = 7.
Adjustment range: +4000 rpm
Resolution: 0,125 rpm
Factory setting CP.23: 100 rpm
Factory setting CP.24: -100 rpm
Input I1 + input I2 = Step speed 3
(factory setting = 0 rpm)
The Step speed 3 cannot adjusted in the CP mode.
