6.9.3 Motor Potentiome-
ter Function
This function simulates a mechanic motor potentiometer. Over two inputs the motor
potentiometer value can be increased or decreased.

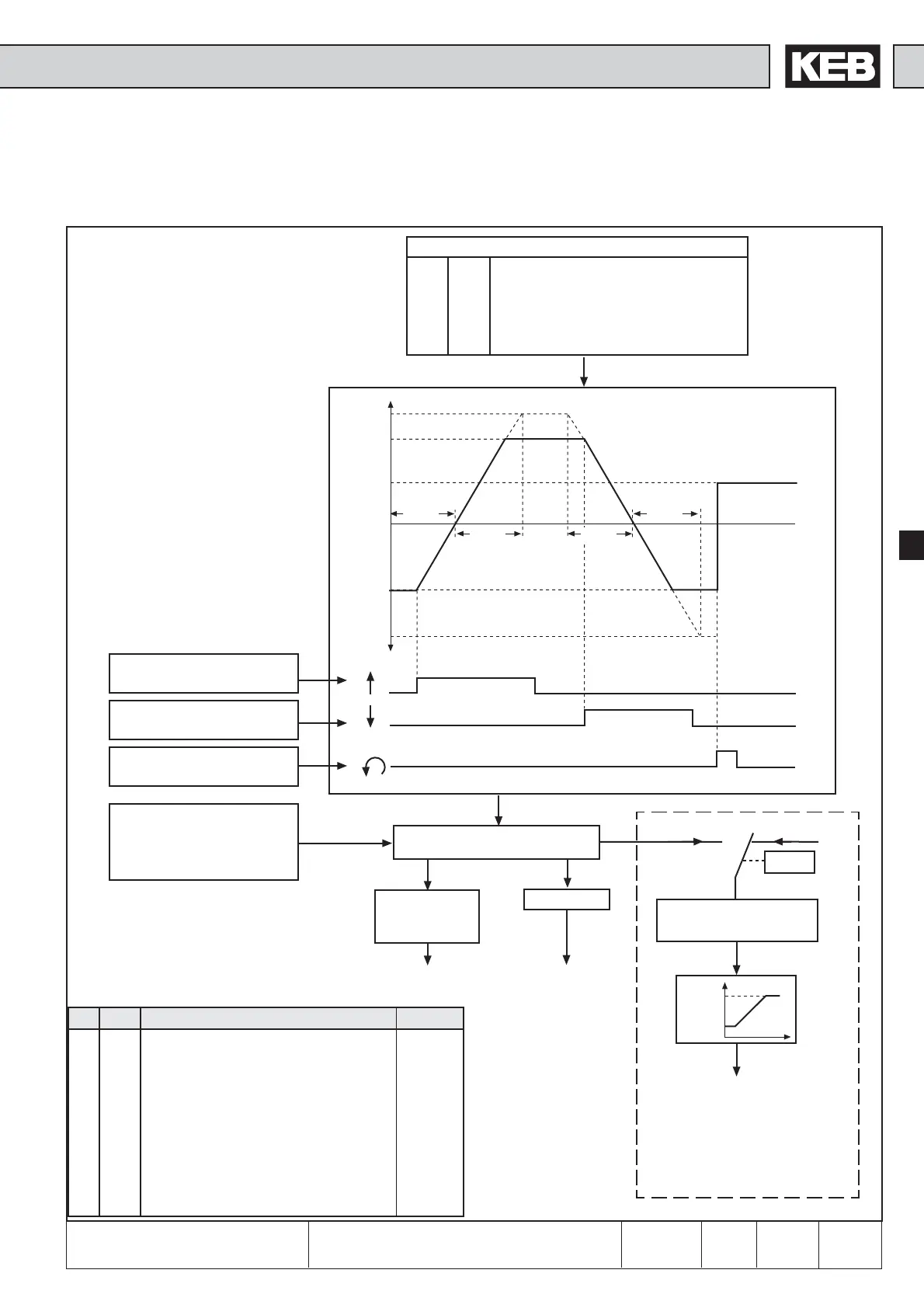

Fig. 6.9.3 Motor potentiometer function
Bit Value Input Terminal
0 1 ST (Prog. input „Control release/Reset“) X2A.16
1 2 RST (Prog. input „Reset“) X2A.17
2 4 F (Prog. input „forward“) X2A.14
3 8 R (Prog. input „reverse“) X2A.15
4 16 I1 (Prog. input 1) X2A.10
5 32 I2 (Prog. input 2) X2A.11
6 64 I3 (Prog. input 3) X2A.12
7 128 I4 (Prog. input 4) X2A.13
8 256 IA (Internal input A) none
9 512 IB (Internal input B) none
10 1024 IC (Internal input C) none
11 2048 ID (Internal input D) none
oP.50 Motor potentiometer / Function
Bit 1 Bit 0 Meaning
x 0 Value is changed in the current set
x 1 Value is changed only in set 0
0 x No motor poti reset after Power-on
1 x Reset on oP.55 after Power-on
oP.56 Input selection
Increase motor poti value
oP.57 Input selection
Decrease motor poti value
oP.58 Input selection
Reset on oP.55
oP.52 Motor poti / Value
Presetting via parameter
±100%
(oP.59 is being ignored)
ru.37 Display motor poti value
-100...0...100 %
Rotation direct.
+ = forward
- = reverse
Setpoint
to oP.0
value „4“
to oP.1 value „6 u. 7“
Aux
Parameter setting by the
motorpoti / aux function
An54 Target analog
Parameter settings
see chapter 6.9.10
