KEB COMBIVERT F5 MULTI User Manual

CP - ParameterOperation
4
3
KEB COMBIVERT F5-M / S18
Name: Basis
17.05.04
Chapter Section Page Date
© KEB Antriebstechnik, 2003
All Rights reserved

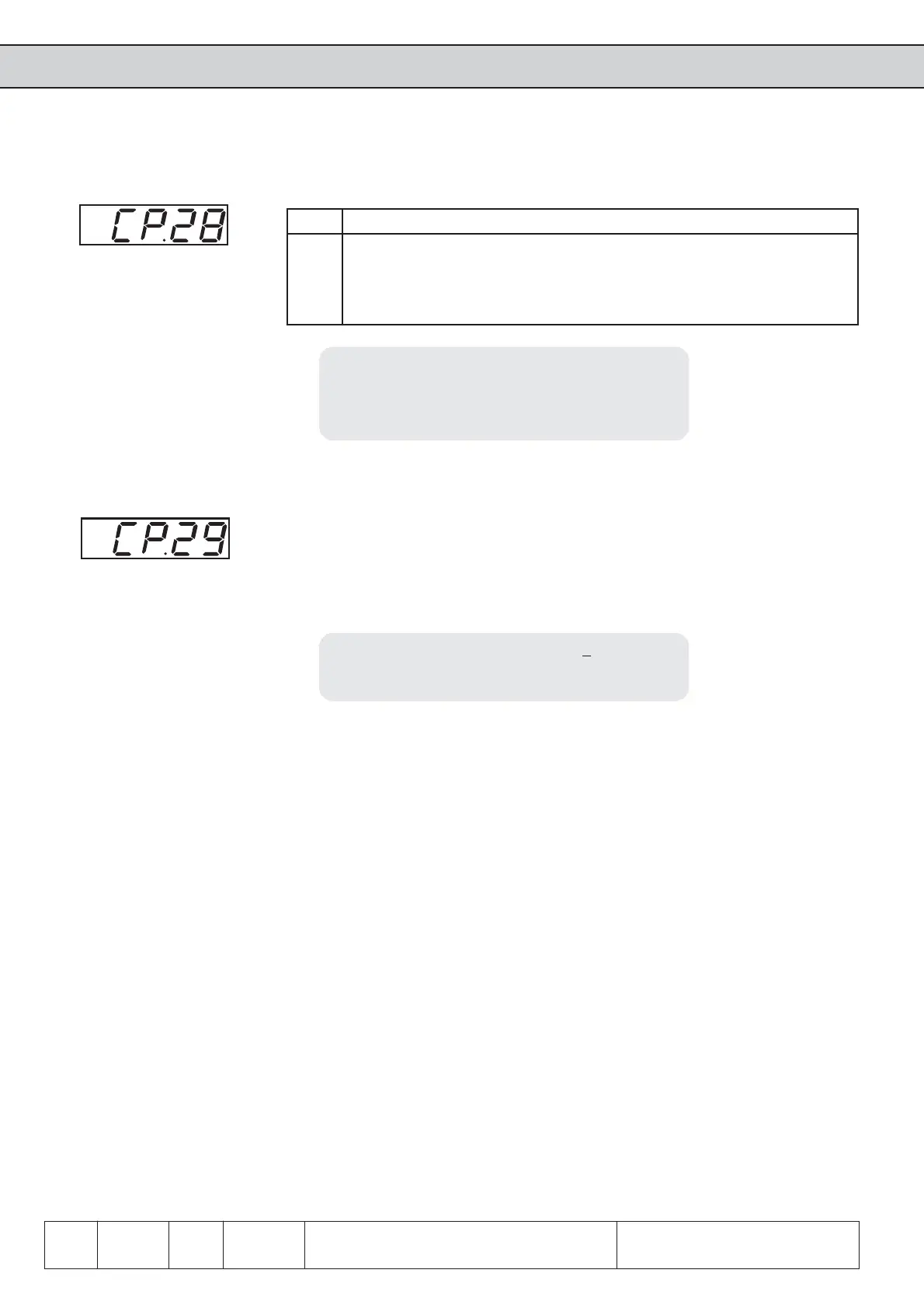

Torque limit The absolute torque reference of the drive is adjusted with parameter CP.29 in torque-
controlled operation (CP.10 = 5) and with digital setpoint setting (CP.28 = 2). The sign
stands for direction of rotation to be active.
In speed-controlled operation (CP.10†=†4) the parameter works as torque limit in all
quadrants.The sign has no effect at that.
The factory setting depends on the unit size (see 3.7 ÑFactory Settingsì).
Adjustment range: +10000,00 Nm
Resolution: 0,01 Nm
Factory setting: LTK
F5-MULTI:
During controlled operation (CP.10 = 0...3) this parameter has no function.
Because of normal type differences and temperature deviations of the motors,
tolerances of up to 30% are possible in the base speed range (see reference on page
4.3.5).
Torque reference source
Adjustment range: 0...5
Resolution: 1
Factory setting: 2
Note: Enter-Parameter
With this parameter the required setpoint source for torque control can be adjusted.
Value Meaning
0 AN1+ / AN1- 0%...±100% = 0...±CP.29
1 AN2+ / AN2- 0%...±100% = 0...±CP.29
2 digital absolute (CP.29) CP.29
3 only application mode
