KEB COMBIVERT F5-M / S

Name: Basis

12.05.04

Section PageDate

Chapter

Functional DesriptionMotor Data and Controller

dr.27

dr.24

dr.23

dr.25

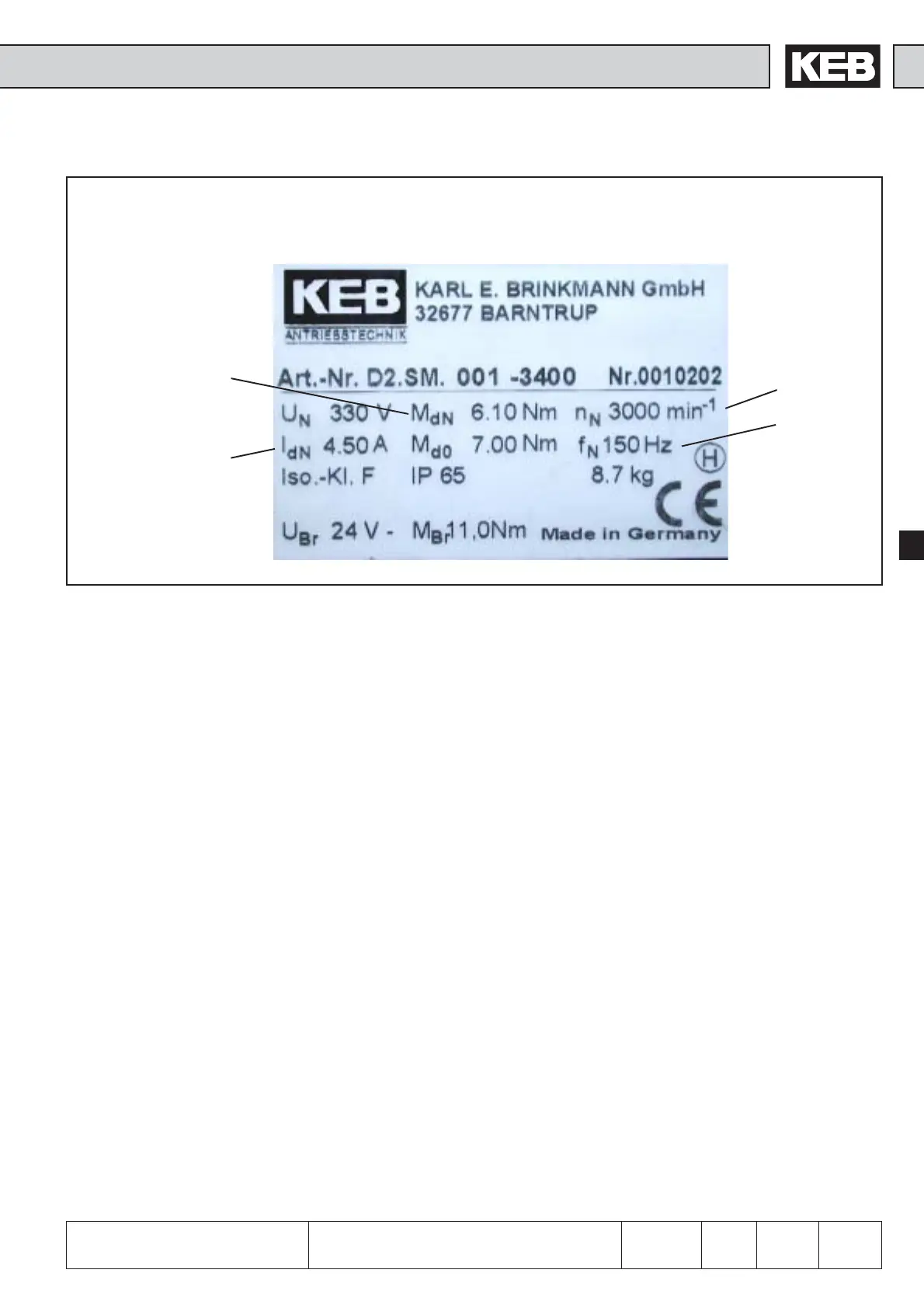

Fig. 6.6.6 Example for servo name plate

6.6.6 Motor Data DSM

Following parameters can be taken directly from the name plate of the three-phase

synchronous motor (DSM) and entered:

-dr.23 DSM rated current 1,0...710,0 A

-dr.24 DSM rated speed 0...32000 rpm

-dr.25 DSM rated frequency 10...1600,0 Hz

-dr.27 DSM rated torque 0,1...6553,5 Nm

Motor data from name plate

Motor data from data sheets

Following data can be taken from the data sheets of the motor or, if necessary,

request it from the manufacturer: :

- dr.26 DSM EMK voltage constant 0...1000 V/1000 rpm

- dr.28 DSM current for zero speed 0,0...700,0 A

- dr.30 DSM stator resistance 0,000...50,000 Ohm

- dr.31 DSM inductance 0,01...500,00 mH
