KEB COMBIVERT F5 Servo User Manual

Operation Drive-Mode
4
4
KEB COMBIVERT F5-M / S4
Name: Basis
17.05.04
Chapter Section Page Date
© KEB Antriebstechnik, 2002
All Rights reserved
FUNC.
SPEED
START
FUNC.
SPEED
ENTER
F/R
STOP
START
STOP
ENTER
F/R
ENTER
F/R

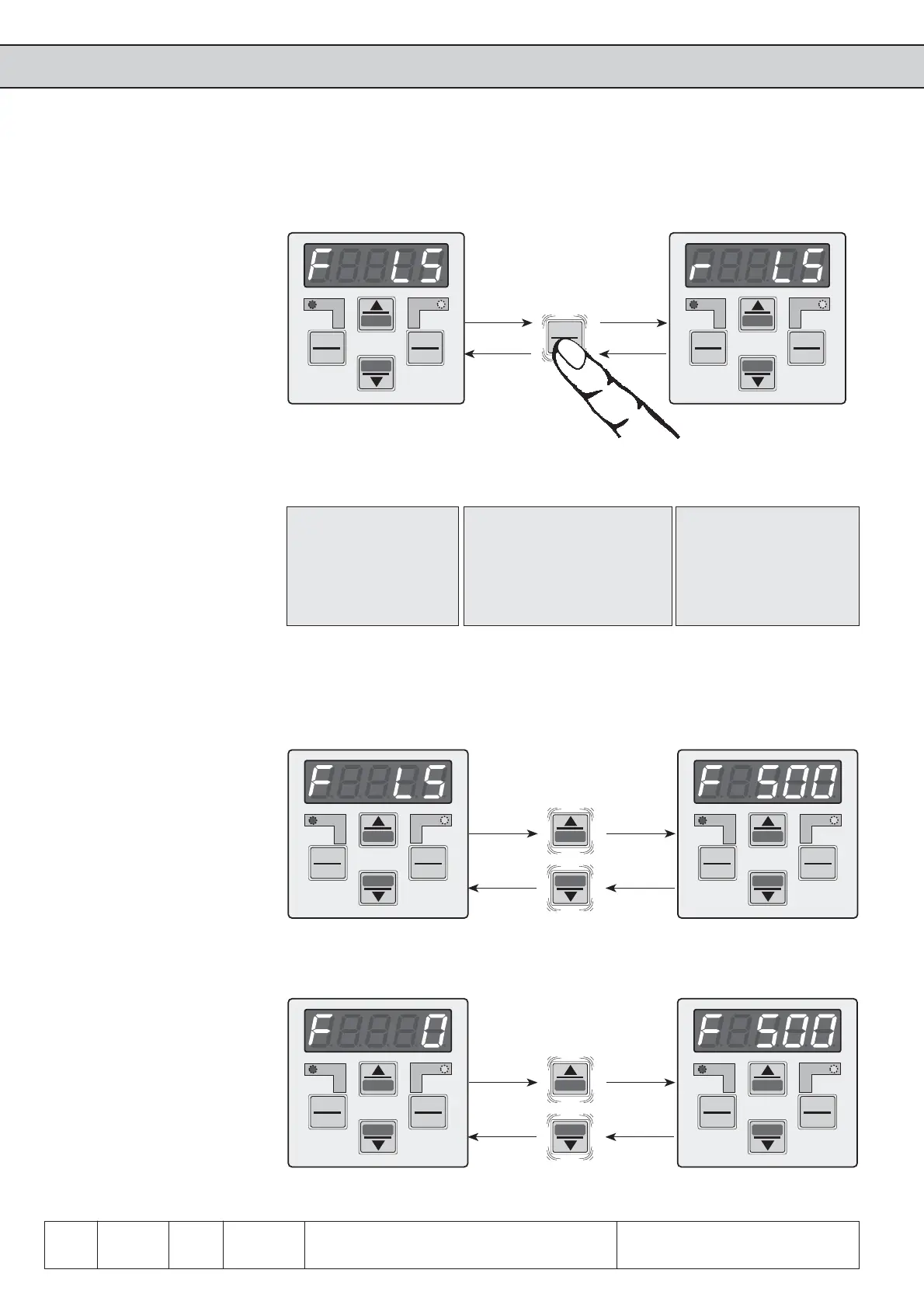

4.4.4 Rotation Setting
Setting possibilities: F = forward (clockwise rotation)
r = reverse (counter-clockwise rotation)
Each actuatin of the key
F/R causes a change in
rotational direction
4.4.5 Start / Stop / Run
Status ÑRunì
The drive runs with
preselected speed
(e.g. ÑF 500ì)
Status ÑStopì
Power module
disconnected, drive
is freewheeling
(e.g. ÑF LSì)
FUNC.
SPEED
ENTER
F/R
START
FUNC.
SPEED
ENTER
F/R
STOP
START
STOP
START
STOP
3 operating states exist in the Drive-Mode:
Status ÑStartì
Power module is controlled
with 0 rpm, drive stands
with holding torque
(e.g. ÑF 0ì)
Among other things the parameter ud.9 determines in what way the keys START and
STOP approach the individual operating states:
Stop
Run
ud. 9 = 0 or 1
(standard)
FUNC.
SPEED
ENTER
F/R
START
FUNC.
SPEED
ENTER
F/R
STOP
START
STOP
START
STOP
Start
Run
ud. 9 = 2 or 3
