11 1 4
Name: Basis
KEB COMBIVERT F504.05.04
© KEB Antriebstechnik, 2002
All rights reserved
Chapter Section Page Date
Network Hardware
Networks
PIN Signal Meaning
1 – Reserved
2 TxD Transmission signal/RS232
3 RxD Receive signal/RS232
4 RxD-A (+) Receive signal A/RS485
5 RxD-B (-) Receive signal B/RS485
6 VP Supply voltage -Plus +5V (I
max
=10mA)
7 GND Data reference potential; earth for VP
8 TxD-A (+) Transmission signal A/RS485
9 TxD-B (-) Transmission signal B/RS485

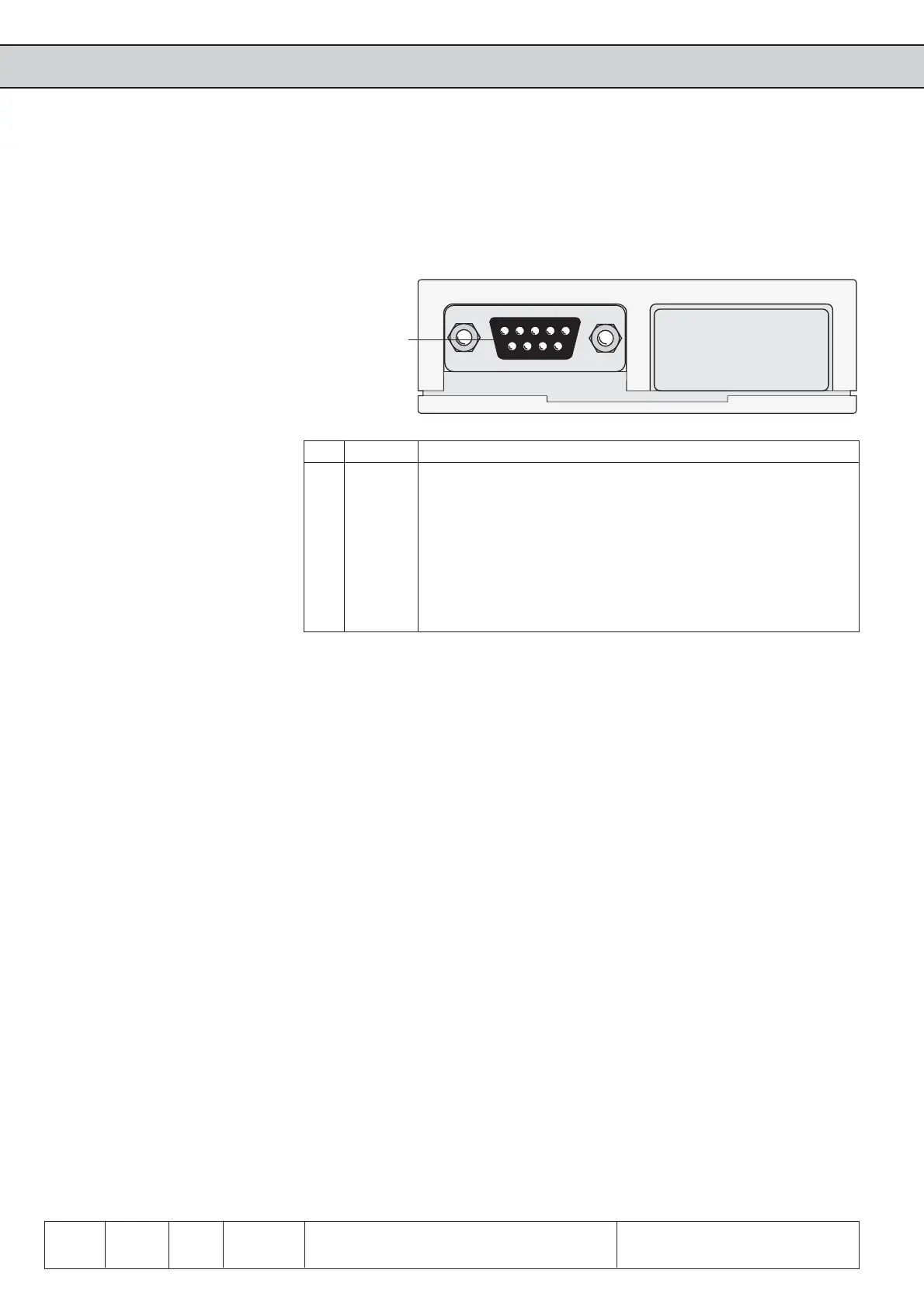

11.1.4 Interface-Operator
00.F5.060-2000
A potential-separated RS232/RS484 interface is integrated in the interface operator
(00.F5.060-2000). The telegram structure is compatible to protocol DIN 66019 and ANSI
X3.28 as well as to protocol expansion DIN 66019 II.
RS232/RS485
54
3
2
1
9
876
