Functional DescriptionTechnology Control
6.12.4 Sample
Applications
The following part describes some sample applications of the PID controller.
cn.1
AN1
AN2
cn.0 = 1
cn.2 = 1
ru.27
ru.29
ru.28
ru.30
cn.4...6
cn.10
cn.7/8
ru.1
ru.52
%
%
V
V
oP.0=6
+
-
ru.2

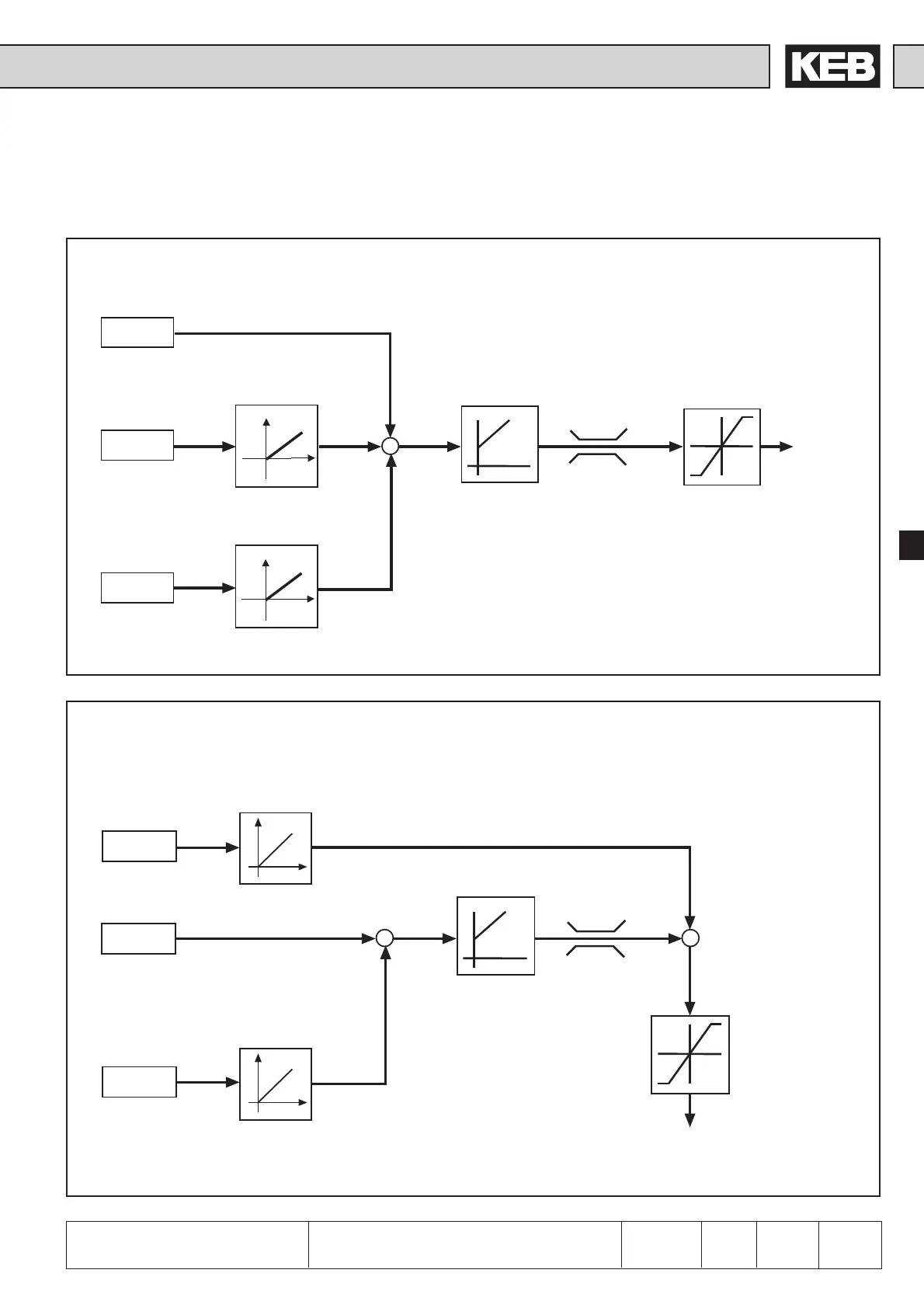

PID-Controller without precontrol (e.g. for pressure, temperature, level control)
Dig. set value
Ana. set value
Actual value
Characteristic
amplifier PID controller
Characteristic
amplifierr
An-parameter
Ramp generator
oP-parameter
Ramp output
value
AN1
AN2
cn.0 = 1
cn.2 = 1
ru.27
ru.29
ru.28
ru.30
cn.4...6
cn.10
cn.7/8
ru.52
oP.0=1
+
-
ru.2
cn.1
%
V
%
V
ru.1
ru.53
An.30=8200
+
+
PID-Controller with precontrol (Variant 1)
Characteristic
amplifier
Characteristic
amplifier
An-parameter
Dig. set value
Actual value
Analog
precontrol
PID controller
Ramp generator
oP-parameter
Ramp output value
An-parameter
