KEB F6 Series User Manual

6 Navigation
6.1 Control elements
F1 F2
F3 F4
ENTER ESC
①
②
Inverter parameter
Operator parameter
Parameter saving
Up/Download
Work list
File operations
FTP mode
Enter test mode
Name Function
Menu bar
Function bar
F1 Function key 1
F2 Function key 2
F3 Function key 3
F4 Function key 4
p
• Scroll menu bar to top
• Highlight parameters
• Increase parameter value "Up“
q
• Scroll menu bar to bottom
• Highlight parameters
• Decrease parameter value "Down“
ENTER Select / conrm
ESC • Return to the next menu level up
• Clear cursor

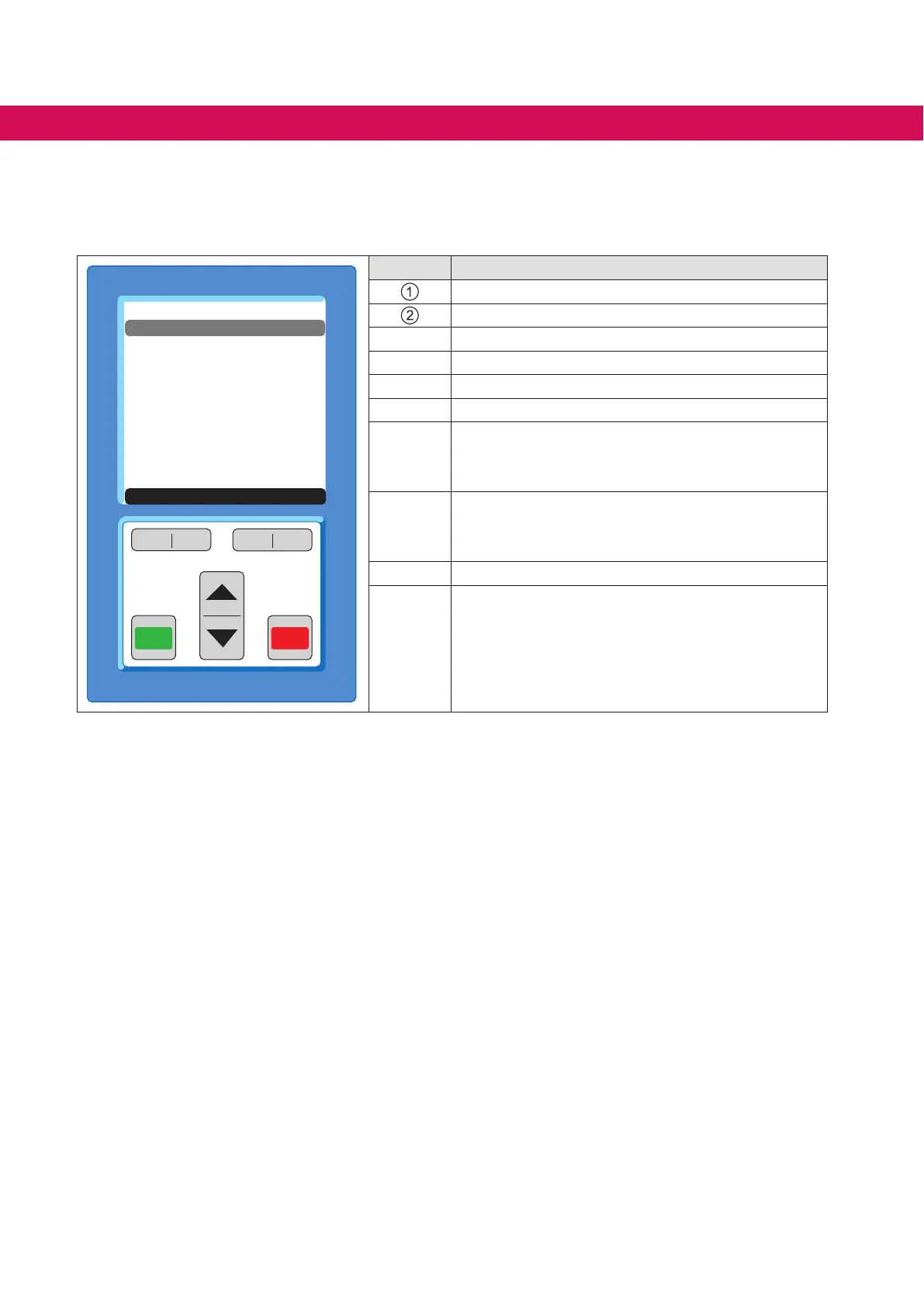

Figure 8: Control elements
6.1.1 Description of the control elements
6.1.1.1 Menu bar
The menu bar displays the actual selection in the menu. It can be shifted with the keys
▲ and ▼. Press ENTER to change to the subordinate operating level, and ESC to
change back to the next higher operating level.
6.1.1.2 Function keys and function bar
The function keys F1...F4 are variable assigned depending on the menu item. The func-
tion bar displays the actual assignment of the function keys F1...F4.
20
NAVIGATION

KEB F6 Series Specifications

General

Communication Interfaces	RS-485, Modbus RTU, CANopen
Protection	Overcurrent, overvoltage, undervoltage, short circuit
Operating Temperature	-10°C to +40°C
Humidity	Up to 95% relative humidity, non-condensing
Control Modes	sensorless vector control (ASCL), closed-loop vector control (encoder feedback)
