MIDI Output
Preset 1: (Drum C1-D#2 / Serato & djay)
Preset 2: (Drum E2-G3)
Preset 3: (Drum G#3-B4)
Preset 4: (Drum C5-D#6)

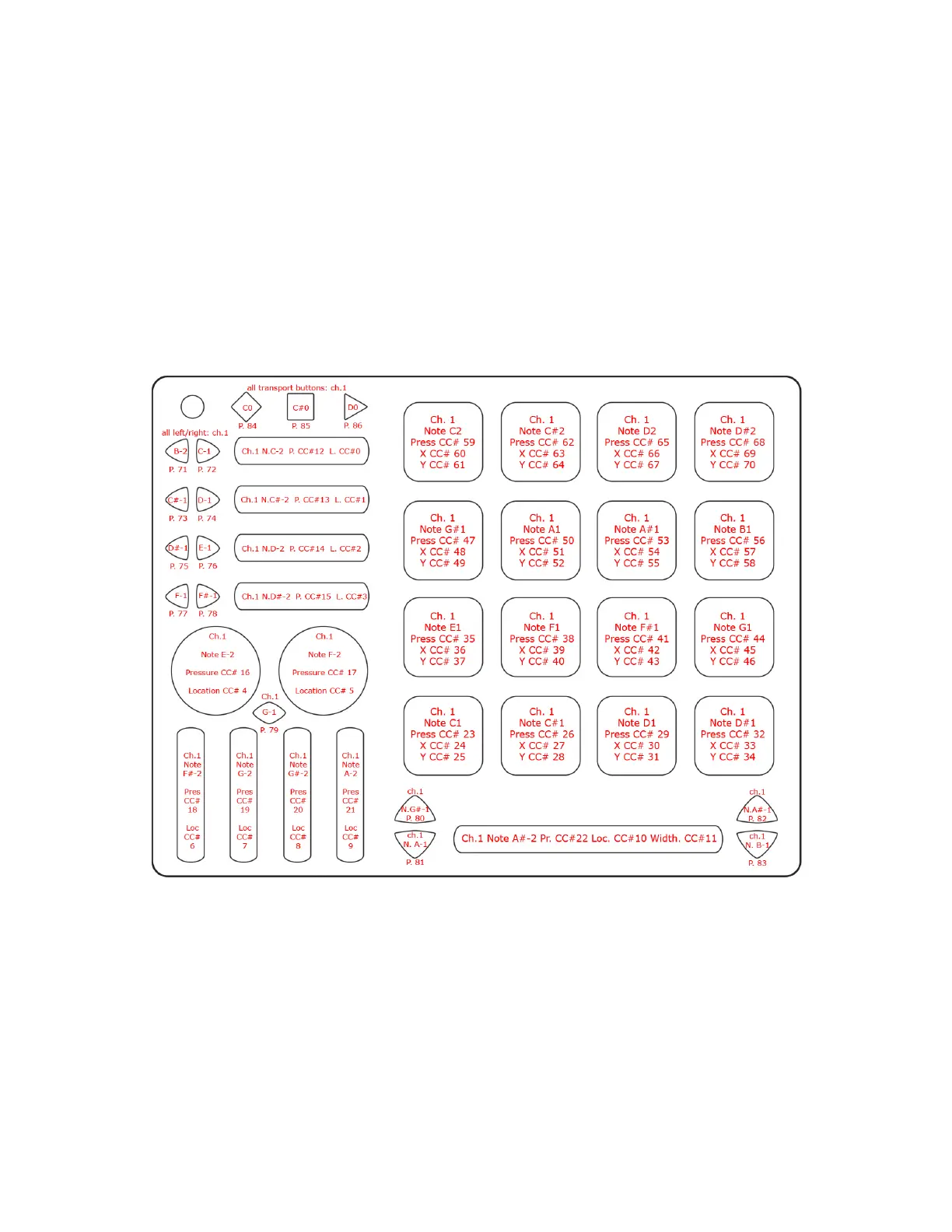

Presets 1-4 are the same except the pad notes increment up as the preset number
increases. So the pad notes on preset 1 are shown below from C1-D#2, preset 2 are from
E2-G3, preset 3 are from G#3-B4, and preset 4 are from C5-D#6.
These presets are in Drum Mode and don’t use banks. Rotaries are set to use Location
instead of Direction. Pass Thru Widths for the rotaries are set to 127. The Pad X/Y Return
values are set to 63. Velocity is variable and pressure is continuous on the Pads; velocity is
fixed at 127 for notes on other sensors.
Our Serato Template uses Presets 1-3. Our djay Template uses Presets 1-2. Both
templates are included in the QuNeo Software Template Installer.
