MIDI Expander
The KMI MIDI Expander is an optional
accessory, which enables use of QuNeo
with hardware MIDI devices. Plug MIDI
devices into the MIDI Out port and
QuNeo will send MIDI data through a
regular 5 pin MIDI cable.
Dimensions: 4 in x 1.25 in x 1.25 in
Weight: 2.5 oz
To use QuNeo with the KMI MIDI Expander follow these steps:
1. Connect a QuNeo to the KMI MIDI Expander (see Connecting QuNeo for
instructions).

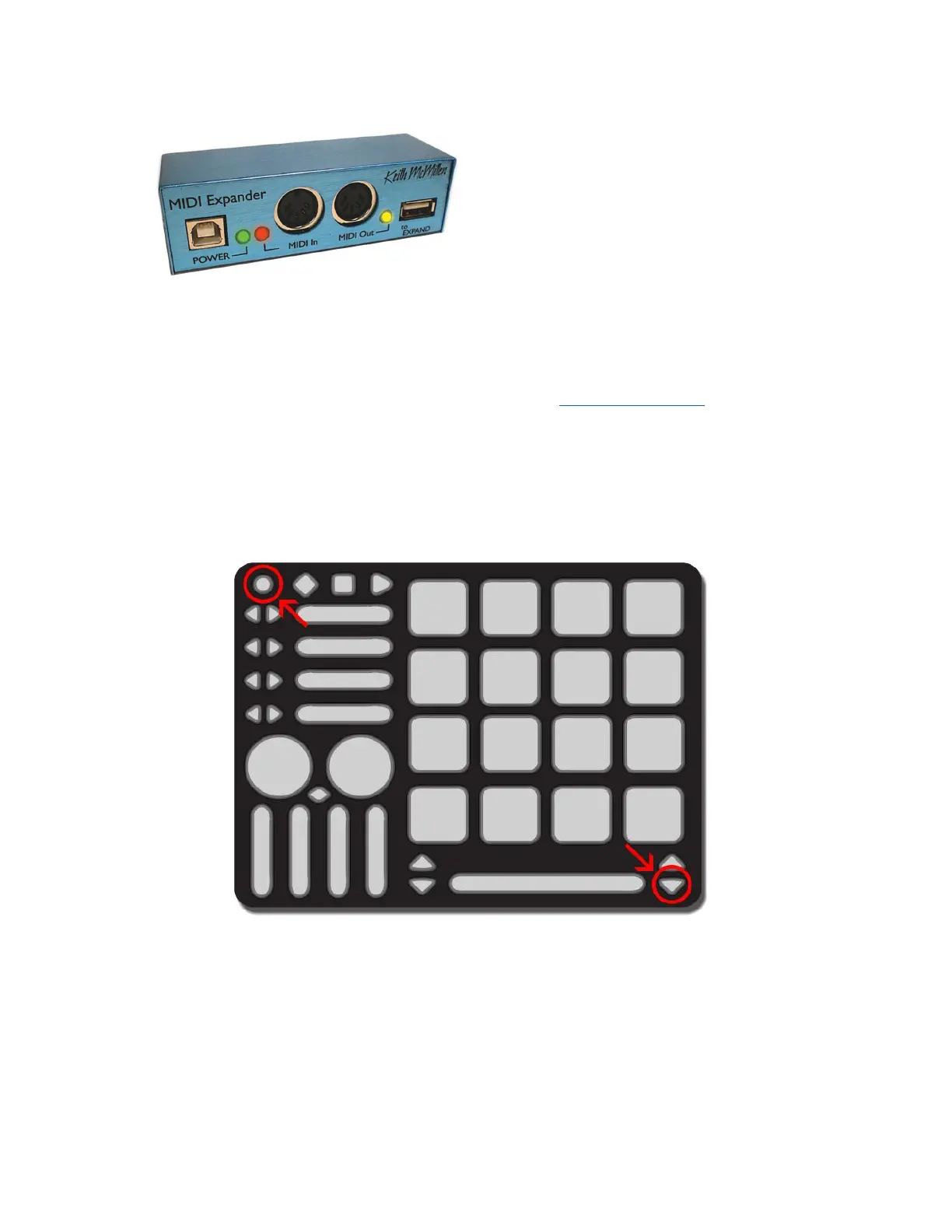

2. Enable MIDI Expander Detection Mode by holding down the mode button and the
bottom-right down arrow simultaneously (as shown in the image below). The
QuNeo LEDs will swipe from right to left, indicating that you have successfully put
QuNeo into MIDI Expander Detection Mode. MIDI Expander Detection Mode can
only be enabled if you are connected to a MIDI Expander.
3. Plug MIDI devices into the MIDI Expander. The QuNeo will now send MIDI
messages out the MIDI Expander.
Once MIDI Expander Detection Mode is enabled, QuNeo will auto detect whether you are
plugged in via USB or MIDI Expander. If QuNeo detects you are plugged in via USB, the
LEDs will swipe from left to right. If QuNeo detects you are plugged in via MIDI Expander,
the LEDs will swipe from left to right and then from right to left. You can turn MIDI
Expander Detection Mode off at any time by once again holding down the mode button
and the bottom-right down arrow simultaneously.
8
