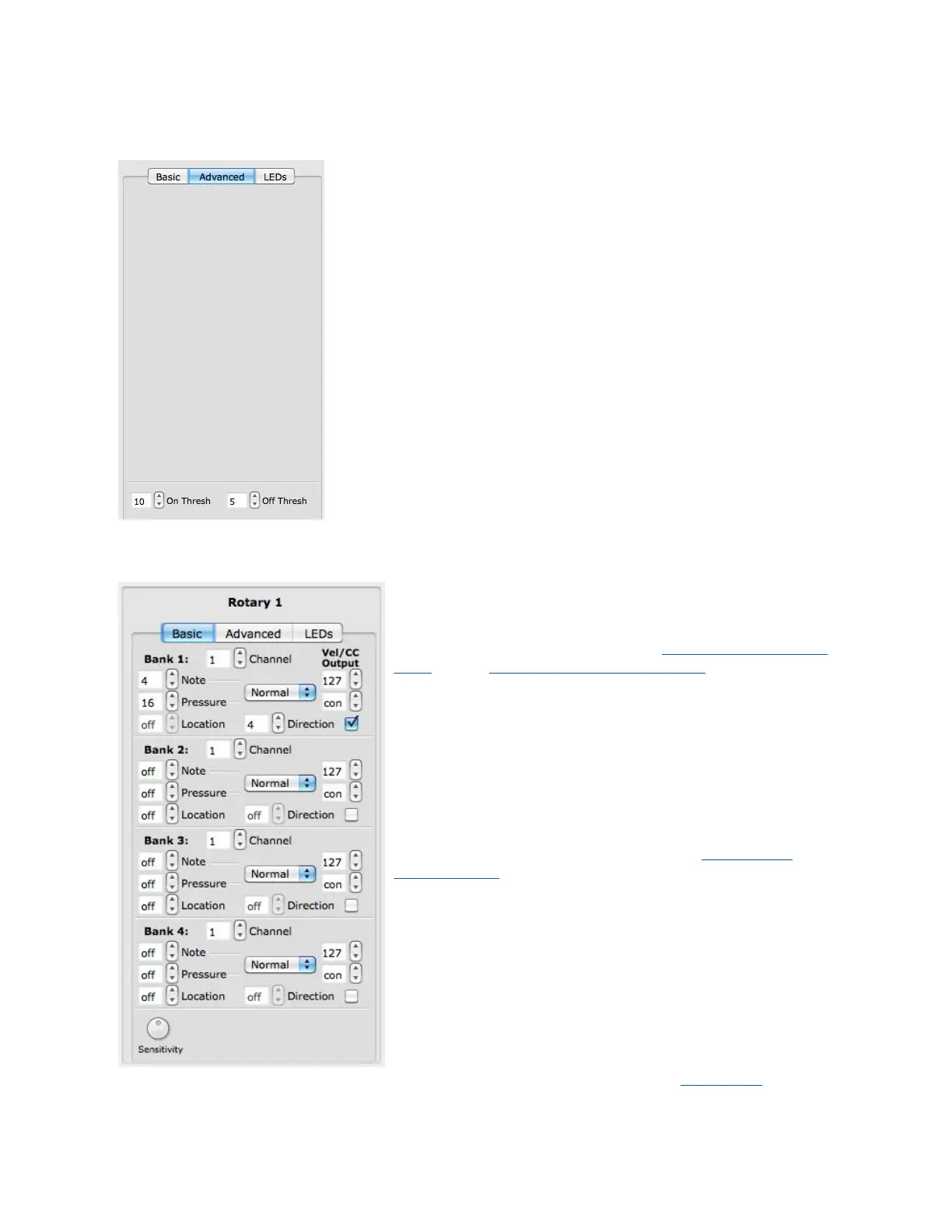

The Horizontal, Vertical, and Long Sliders all have the same
Advanced tab. There isn’t much in here just yet except for On
and Off threshold adjustment parameters.
On Thresh - The pressure value at which a note on will
register. Example: If set to 10, the Slider pressure has to
reach a value of 10 before a note on is sent.
Off Thresh - The pressure value at which a note off will
register. Example: If set to 5, the Slider pressure would have
to be 5 or lower for a note off to register. This cannot be set
higher than the on threshold.
These two parameters are global for their respective slider
types.
There are 4 Rotary banks available. Either the Rhombus
button, or one of the Up/Down button pairs can select
the Rotary banks. This is programmable in the edit
panes for those buttons. See the Rhombus Button Edit
Pane or the Up/Down Buttons Edit Pane chapters for
more information.
The Rotary Edit Pane parameters in the Basic tab
include a Note, Pressure CC#, Location CC#, and
Direction CC#, for each bank. To disable a source, set
the number box below 0 to “off” (-1).
Notes and Pressure CC#s can be set to Normal or
Toggle mode and utilize Velocity/CC output number
boxes for added functionality. See the Normal and
Toggle Modes chapter for more information.
The Direction CC# will repeatedly send out a 1 if finger
movement is clockwise. If finger movement is
counterclockwise, the CC# will repeatedly send out a
127. We refer to this repeated CC# as a tick. The
faster a finger is moved, the faster the ticks will output.
Direction and Location cannot be used at the same time.
Use the checkbox next to Direction to enable one or the
other.
