2.2.3.4 Converting CV Input from +/- 10V to 0V/5V

QuNexus’ CV In is uni-polar. If you send it a bi-polar signal, half of the signal will be clipped and

can cause malfunctions in extreme cases. Sending a signal above 5 Volts is also unsupported.

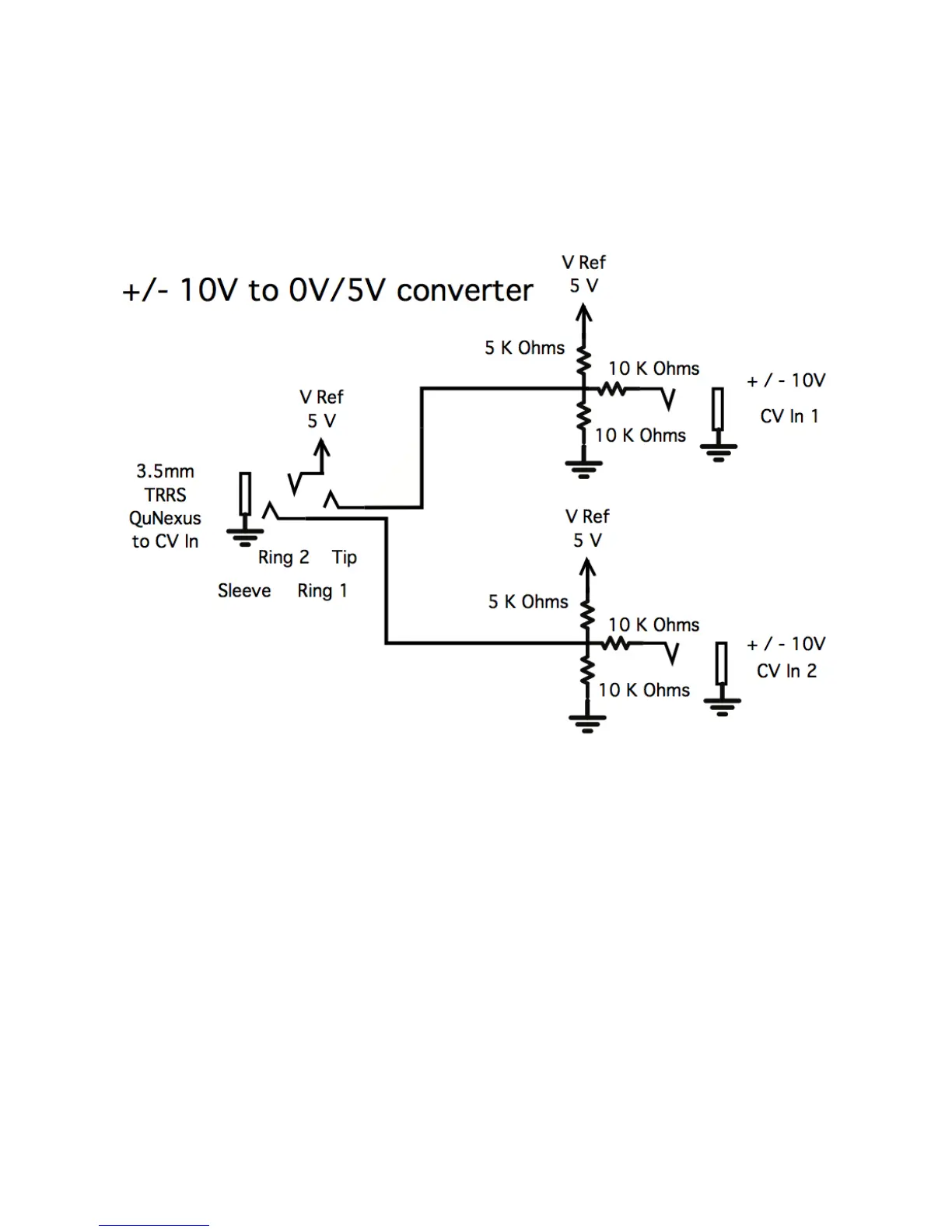

You can convert a bi-polar 10V signal to a uni-polar 5V signal. Though we do not provide a

converter, you can make one using the schematic shown below:
