3.10 CV Layer
Here you can choose how the QuNexus keys send and receive CV (Control Voltage). QuNexus
has 4 possible CV outputs and 2 possible CV inputs (see the CV chapter for the hardware
specs).
There is a box labeled Gate S Trig in the upper right corner; if this is checked, the gate output
will be inverted so that gate on is 0V and gate off is 5V. Some older synthesizers use this
paradigm. Please consult the technical specifications of your synthesizer if you are unsure
which gate signal it needs.
The box to the left of Gate S Trig is the Gate Legato box; if this is checked, the gate output will
not iterate an off state between notes.
You can set the Pitch Scaling Scheme in the box to the left of the Gate Legato box. You can
set this to 1 Volt per Octave, 1.2 Volts per Octave, or Hertz per Volt (an older scaling scheme).
3.10.1 CV Output (MIDI to CV)

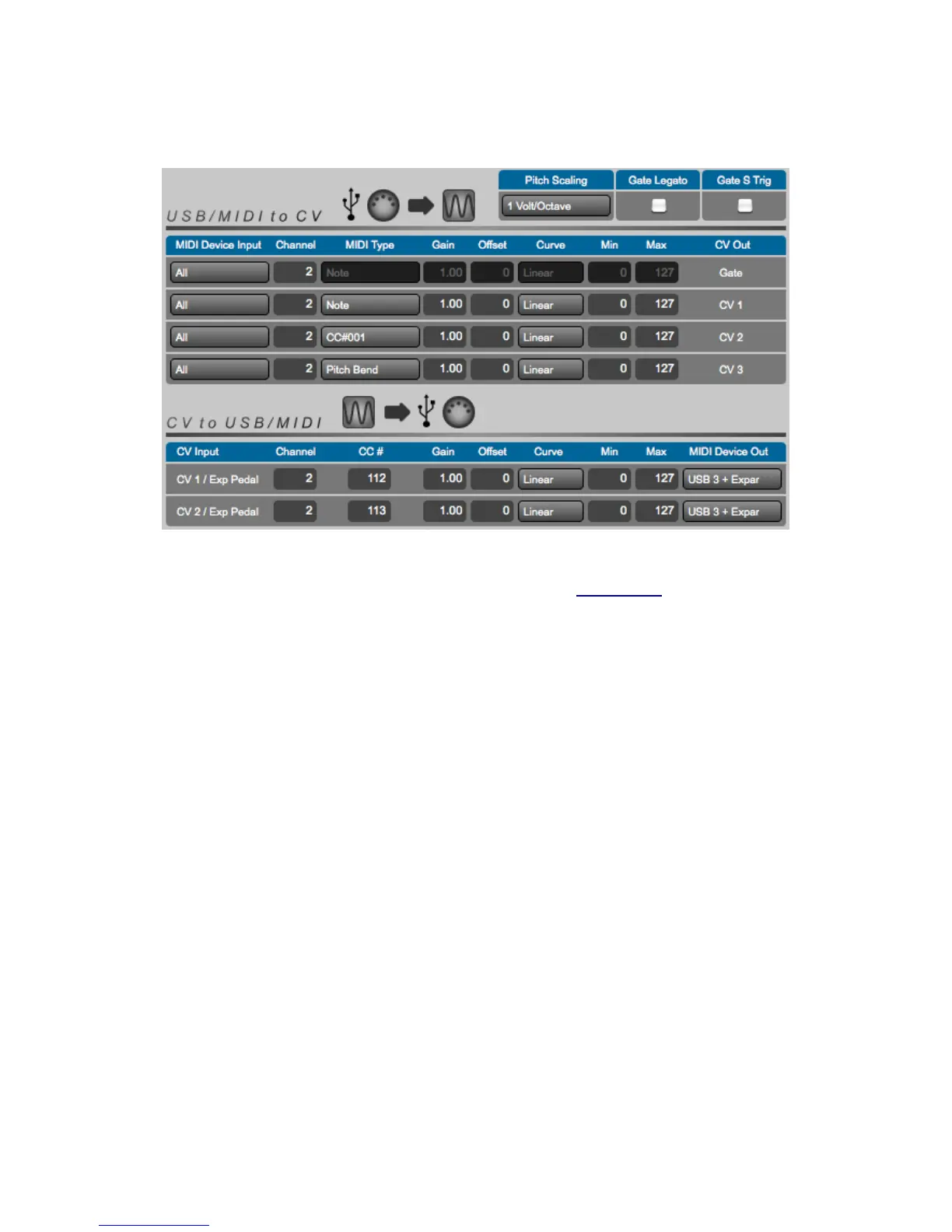

The MIDI to CV table has 4 rows (1 for each CV output) and 9 columns. Start with what MIDI
Device Input you are using, go across the row, and end with the CV output destination (Gate,
CV 1, CV 2, or CV 3). For example, if you want Pitch Bend Data from the MIDI Expander to go
out CV 1 follow these steps:
1. Locate the Row used for CV 1 (second row).
2. Select Expander as the MIDI Device Input.
3. Choose the MIDI Channel whose Pitch Bend data you wish to use.
