Keith McMillen Instruments QuNexus Reference Manual

3.4 Main Window Overview

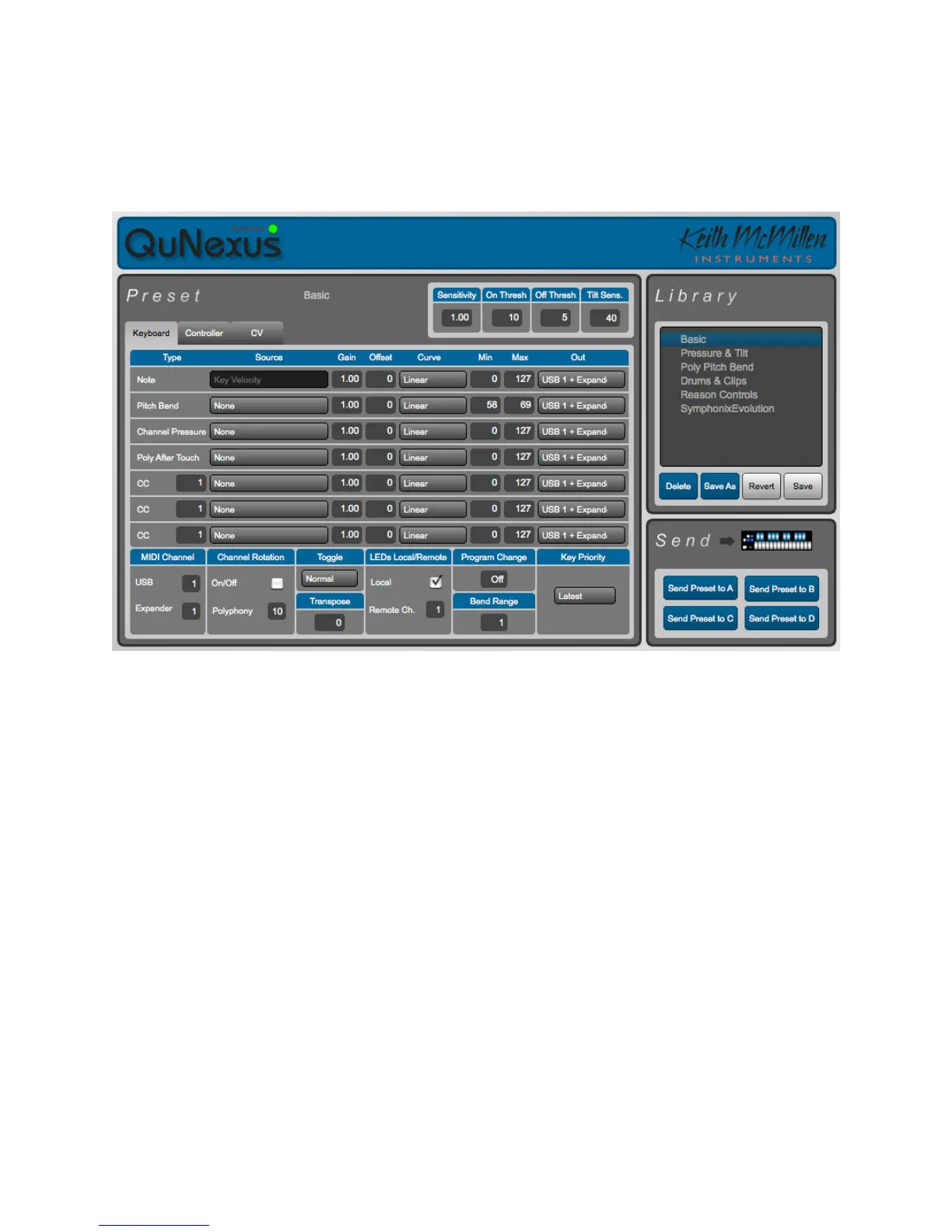

The QuNexus Editor opens with this window:
Customize the QuNexus output and input using the Keyboard, Controller, and CV tabs (Layers).
Just above the right side of the tabbed box are the global sensitivity settings to control Gain, On
Threshold, Off Threshold, and Tilt Sensitivity for the QuNexus keys. Controls for saving and
recalling presets are found on the right side of the window. There are tabs for editing Keyboard
Layer, Controller Layer, and CV Layer. Keyboard Layer is the main space for editing the
behavior of the keyboard. Controller Layer allows you to assign additional Notes and individual
Pressure and Tilt CC#s for each Key. CV Layer is for editing the CV input and output.
32

Keith McMillen Instruments QuNexus Specifications

General

Brand	Keith McMillen Instruments
Model	QuNexus
Category	Electronic Keyboard
Language	English
