SoftStep3
CalibratinG Cv oUtS
The voltage sent from the CV Outs can be ne-tuned to accomodate drifting oscillators and non-western or

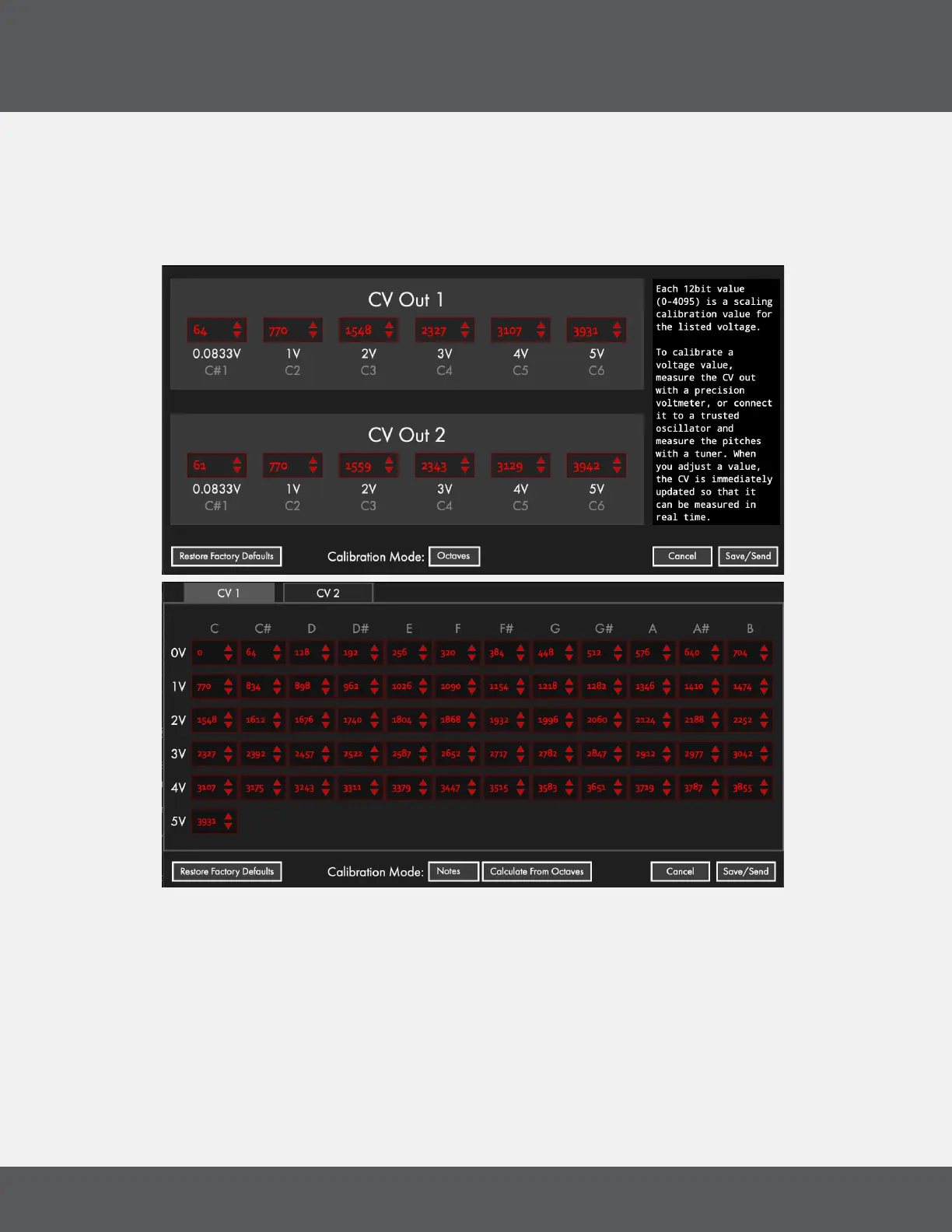

experimental tonalities� Calibration happens by octave or by note with the help of the “Calibrate CV Outs”
window�
Each 12bit value (0-4095) is a scaling calibration value for the listed voltage�
To calibrate a voltage value, measure the CV out with a precision voltmeter, or connect it to a trusted
oscillator and measure the pitches with a tuner� When you adjust a value, the CV is immediately updated so
that it can be measured in real time�
You can directly control the CVs with 12 bit values by using NRPN 1 for CV1, and NRPN2 for CV2�
