3-14 Model 2790 SourceMeter
®
Switch System User’s Manual

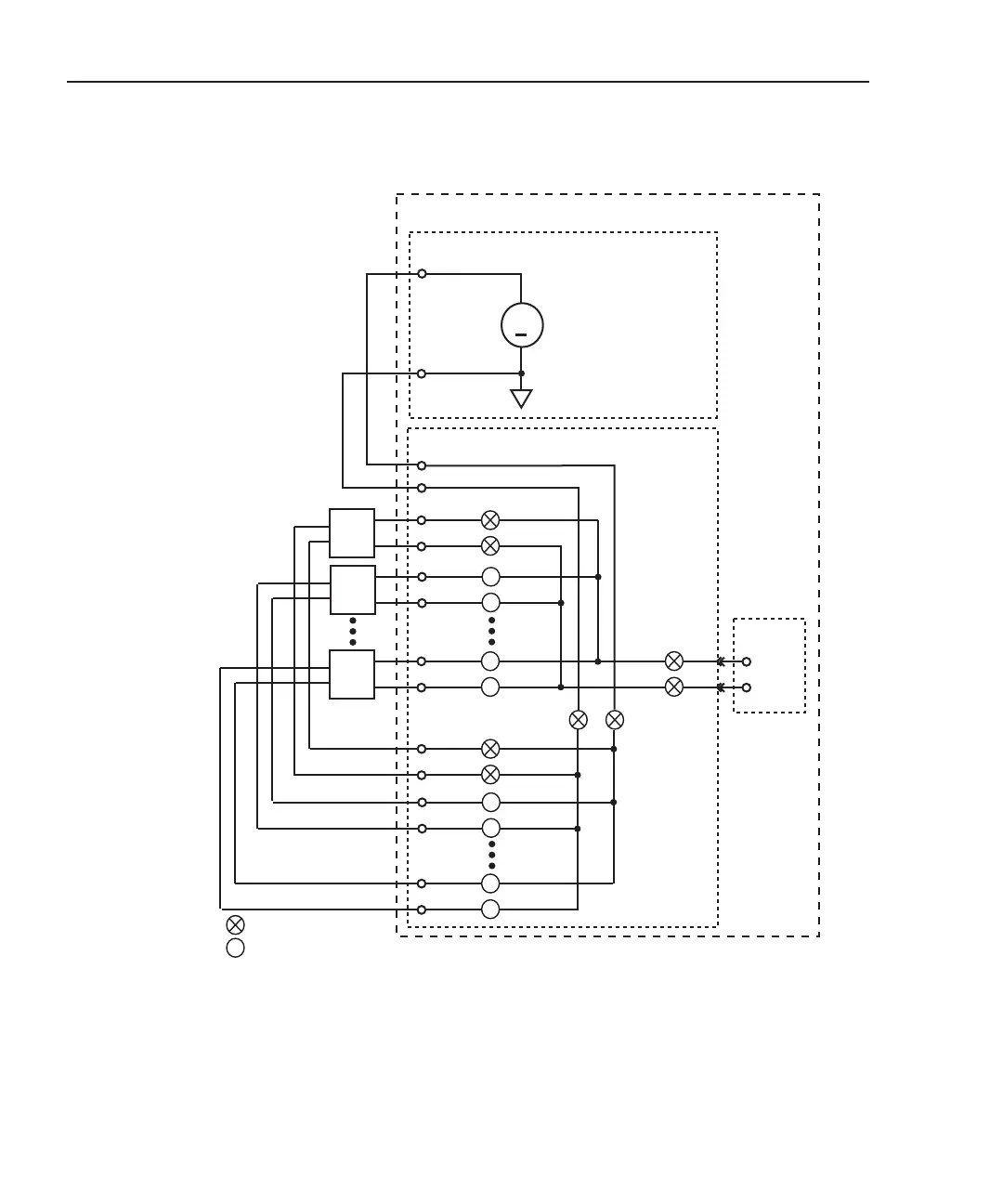

Figure 3-10
Using 7751/7753 V-source with 7702 module (dual multiplexer)
Ch 1
DUT
1
43
Keithley 7702 Module
Model 2790
DMM
Ch 2
DUT
2
Ch 20
DUT
20
Ch 21
Ch 22
Ch 40
Keithley 7751/7753 Module
Vsrc HI
Vsrc LO
All 7751/7753
channels open
J107
= Closed channel
= Open channel
Note: Shown are 7702 channels 1, 21, 43, and 45 closed to test DUT #1.
HI
LO
Input
Sense
1
2
20
45
21
22
40
V SOURCE
+
