Keithley 617 - Page 139

BINDING POSTS:
RED BP-,,-2
BLACK BP-,,-0
GROUND BP-15
SHIELD
SHIELD
INOT PRESENT
617.314
ON REV B
CONNECTOR
Inot shown~
cs-181
BNC CONNECTOR
cs-249
REAR PANEL
617309
617-319
GROUND CLIP
blot show”,
BOTTOM COVER
30541
GROUND CLIP
FRONT PANEL
USHEUTTONS:
HIFT: 228317-4
ELECTROMETER: 228317.5
V-SOURCE: 228317.6
DATA STORE, PROGRAM: 228317.7
POWER: 294653

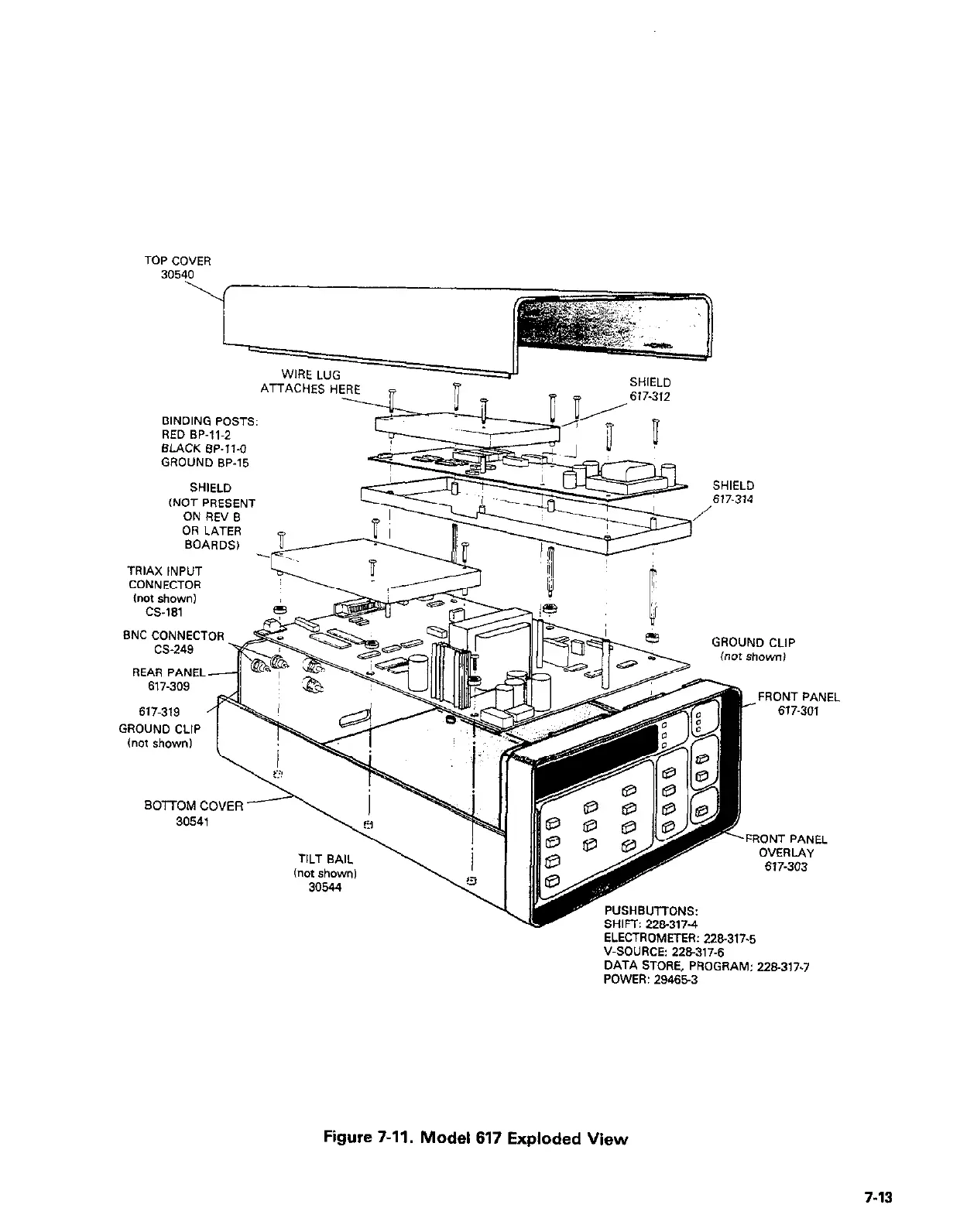

Figure 7-11. Model 617 Exploded View
7-13
