Kemper WeldFil Compact - Draining Compressed Air Maintenance Unit Condensate

EN
1502756-02 - 178 -
A condensate drain valve is located on the side of the compressed air
maintenance unit.
• Hold a beaker or other suitable container under the condensate drain
valve outlet opening and open the valve slowly with the other hand.
• Only close the valve again when just air is escaping.
Fig. 102: Condensate drain valve for compressed air vessel
7.2.7 Draining the compressed air maintenance unit
condensate
Depending on usage, but at least once per week, the condensate must be
drained from the compressed air vessel.

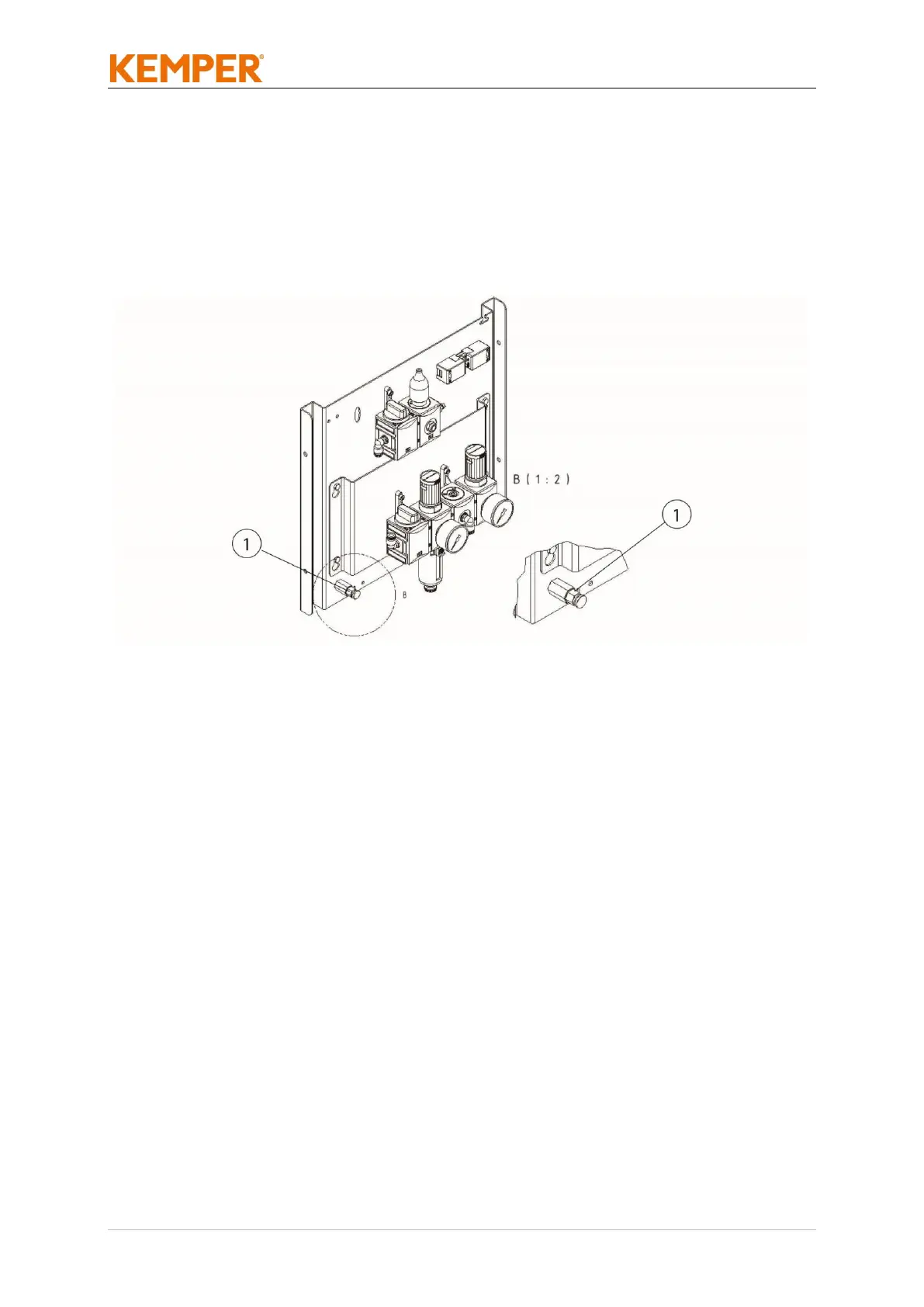

The condensate drain valve is located below the sight glasses on the
compressed air maintenance unit.
Maintenance is especially important to guarantee proper functioning of
the filter cleaning system.
• Hold a suitable container under the condensate valve outlet opening
and slowly open the valve.
• Only close the valve again when just air is escaping.
