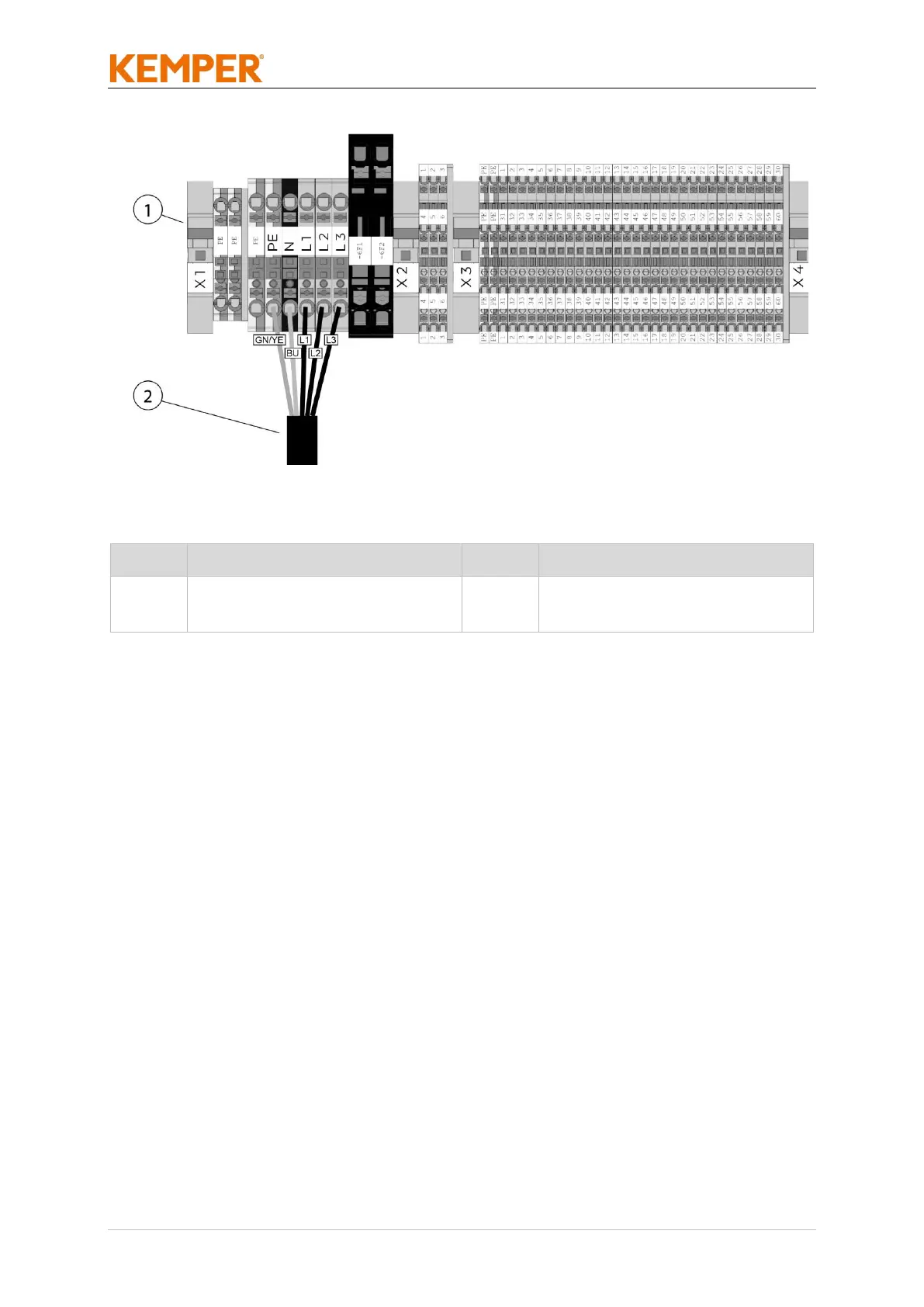

Fig. 71: Terminal strip for control cabinet, product
Item
Description
Item
Description
1
Terminal strip for control
cabinet, product
2
Mains supply connection
cable
Tab. 56: Power supply
Connect as follows:
1. Pull the mains supply connection cable provided by the customer
through the cable guides provided in the product up to the control
cabinet.
2. Connect the mains supply cable to the terminal strip in the control
cabinet as shown in the diagram.
5.7.3.2 Product with extraction capacity regulation
Note on connection to the mains supply for products with extraction
capacity control.
