5.2 Connecting the product
NOTE
If add-on products are also present, follow the appropriate manuals when
assembling them.

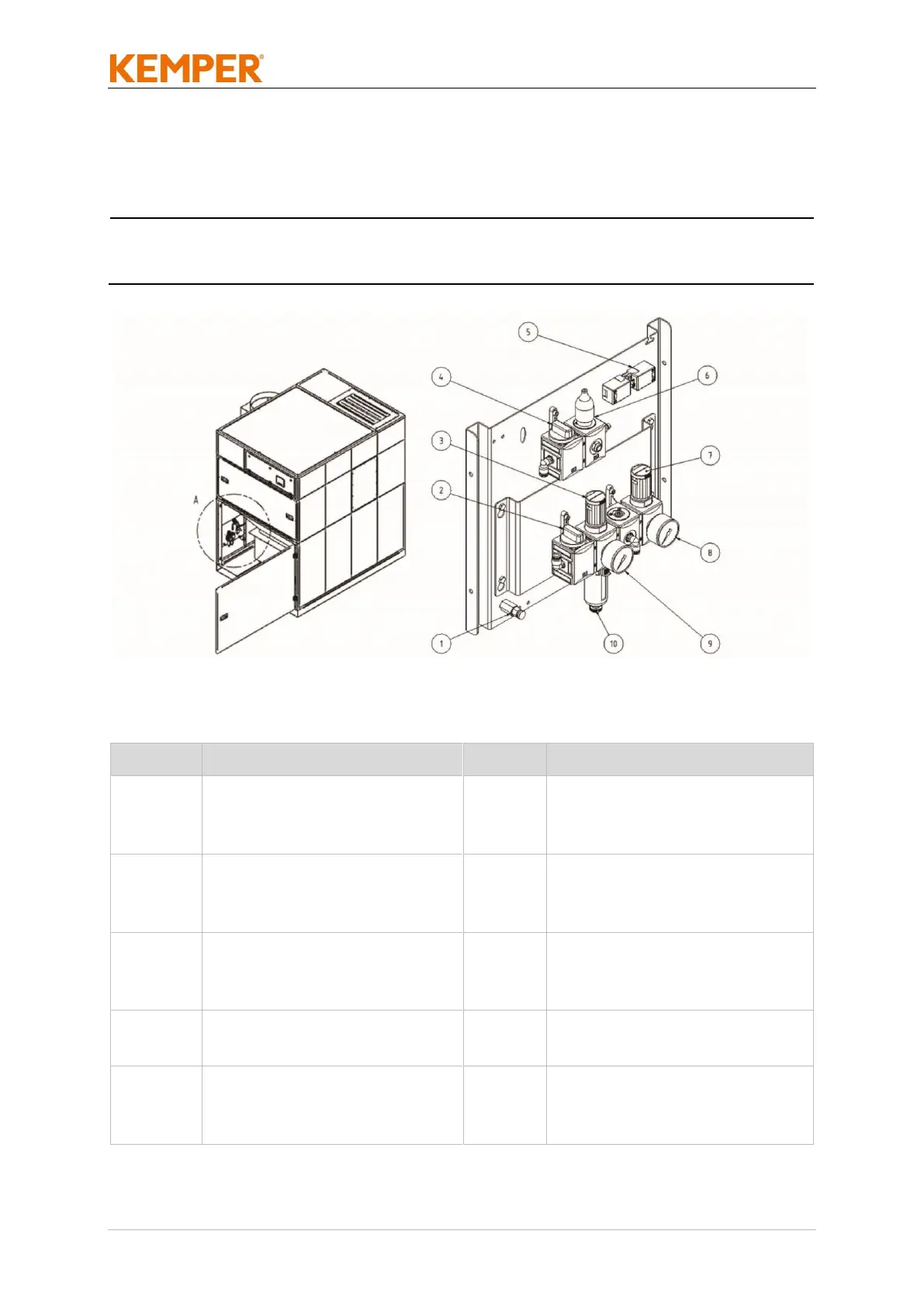

Fig. 69: Compressed air unit
No.
Description
No.
Description
1
Condensate drain valve for
compressed air vessel
6
Pressure switch, dust
collection container
monitoring
2
Main block valve
compressed air supply
7
Compressed air regulator
for dust collection
container lifting device
3
Pressure regulating
button compressed air
vessel
8
Pressure gauge lifting
device dust collection
container
4
Lowering valve,
compressed air vessel
9
Pressure gauge
compressed air vessel
5
Connection plug, pressure
switch compressed air
vessel
10
Condensate drain valve for
compressed air
maintenance unit
Tab. 50: Compressed air unit
