9.4 Dimension sheets

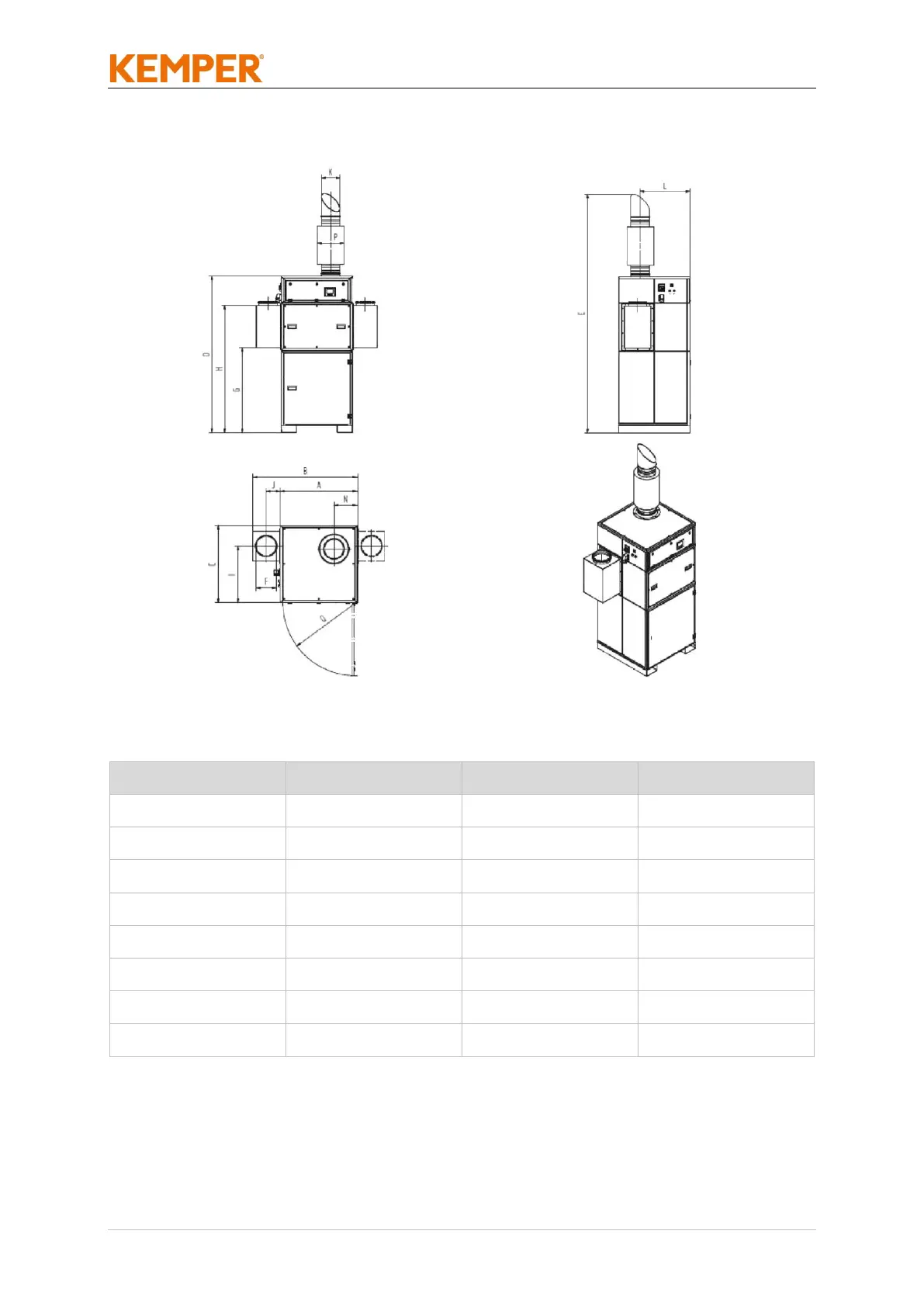

Fig. 109: Dimension sheet 3420
Symbol
Dimensions
Symbol
Dimensions
A
962 mm
I
706 mm
B
1,302 mm
J
175 mm
C
962 mm
K
250 mm
D
2,110 mm
L
669 mm
E
3,230 mm
N
293 mm
F
250 mm
O
896 mm
G
1,146 mm
P
355 mm
H
1,716 mm
Tab. 86: Dimension table 3420
