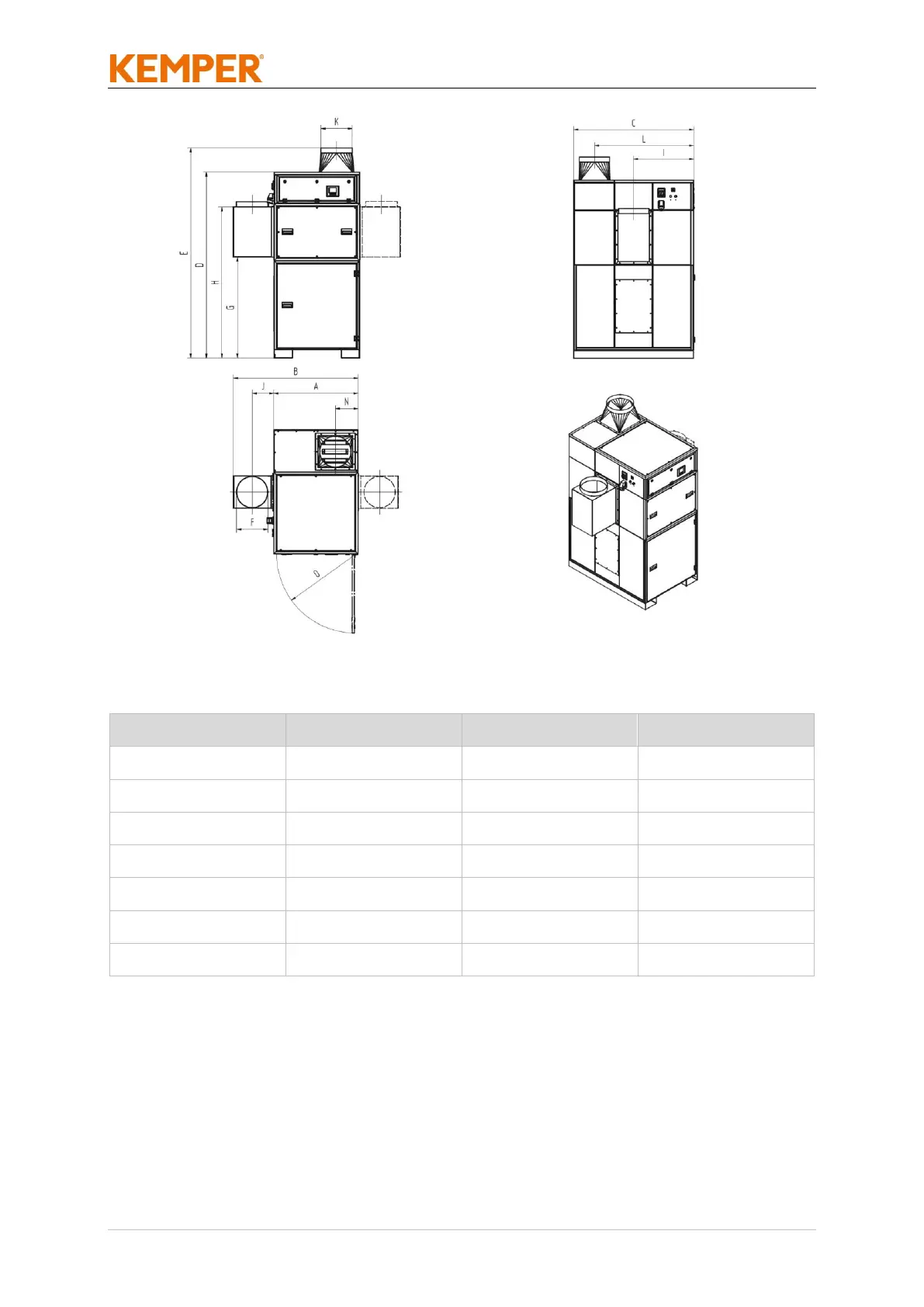

Fig. 110: Dimension sheet 3430
Symbol
Dimension
Symbol
Dimension
A
962 mm
H
1,716 mm
B
1,402 mm
I
706 mm
C
1,413 mm
J
225 mm
D
2,110 mm
K
355 mm
E
2,410 mm
L
1,170 mm
F
355 mm
N
260 mm
G
1,146 mm
O
896 mm
Tab. 87: Dimension table 3430
