Kemppi X8 MIG User Manual

X8 MIG WELDER 2.2 System structure
2.2.4 Control Pad

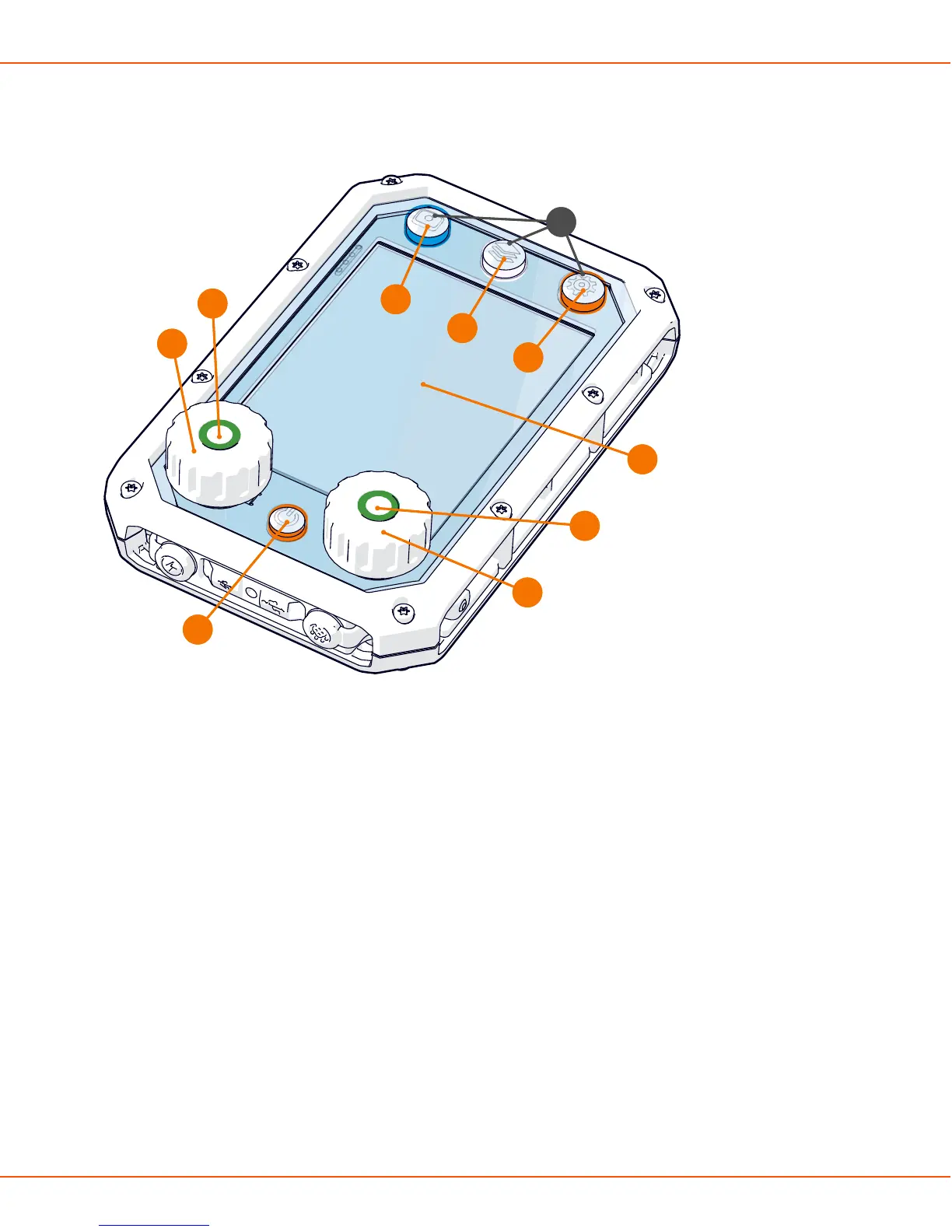

This section describes the structure of Control Pad.
6
7
8
9
5
4
1
2
4
3
6
7
8
9
5
4
1
2
4
3
1. Power button
The button lights up orange, when you switch Control Pad on.
2. Left control knob
3. Right control knob
4. Left and right button
When the button lights up green, you can press the button to confirm an action.
5. Display
6. View buttons
7. Channel button
The button lights up blue, when the view is activated.
8. Menu button
The button lights up white, when the view is activated.
9. Settings button
The button lights up orange, when the view is activated.
OPERATING MANUAL | EN 22
©
KEMPPI | 2018-09-28
