INTERFACING
When to use a Barcode Scanner
Barcodes can be scanned at the following points:- •
Entering a Testcode as part of an Automatic Test in the ENTER •
TESTCODES screen
Entering a Testcode in the TEST SETTINGS EDITOR•
Entering an Appliance number in the ENTER APPLIANCE DETAILS •
screen.
Interfacing
The Tester provides an I/O port that allows connection to a Barcode
Scanner, a PC or a Printer.
To avoid any problems during download, ensure that leads are undamaged
and correct for the application.
Downloading to Computer Software
The Kewtech KT77 can be setup to be compatible with various software
packages. The APLNCE & CNMTS option can be found in SYSTEM
CONFIGURATION in the SETUP menu this may need to be set for 10 DIGIT
RESTRICTION for non Seaward software. Check with your software supplier.
For Pat Manager and other non Seaward and Fluke PowerPat Plus software
programs always select SIMPLY PATS as the DOWNLOAD FORMAT on the
DOWNLOAD OPTIONS screen prior to Download.
For Seaward PAT and Power Pat Plus software programs always select SSS
as the DOWNLOAD FORMAT on the DOWNLOAD OPTIONS screen prior to
Download.
DOWNLOADING TO COMPUTER SOFTWARE

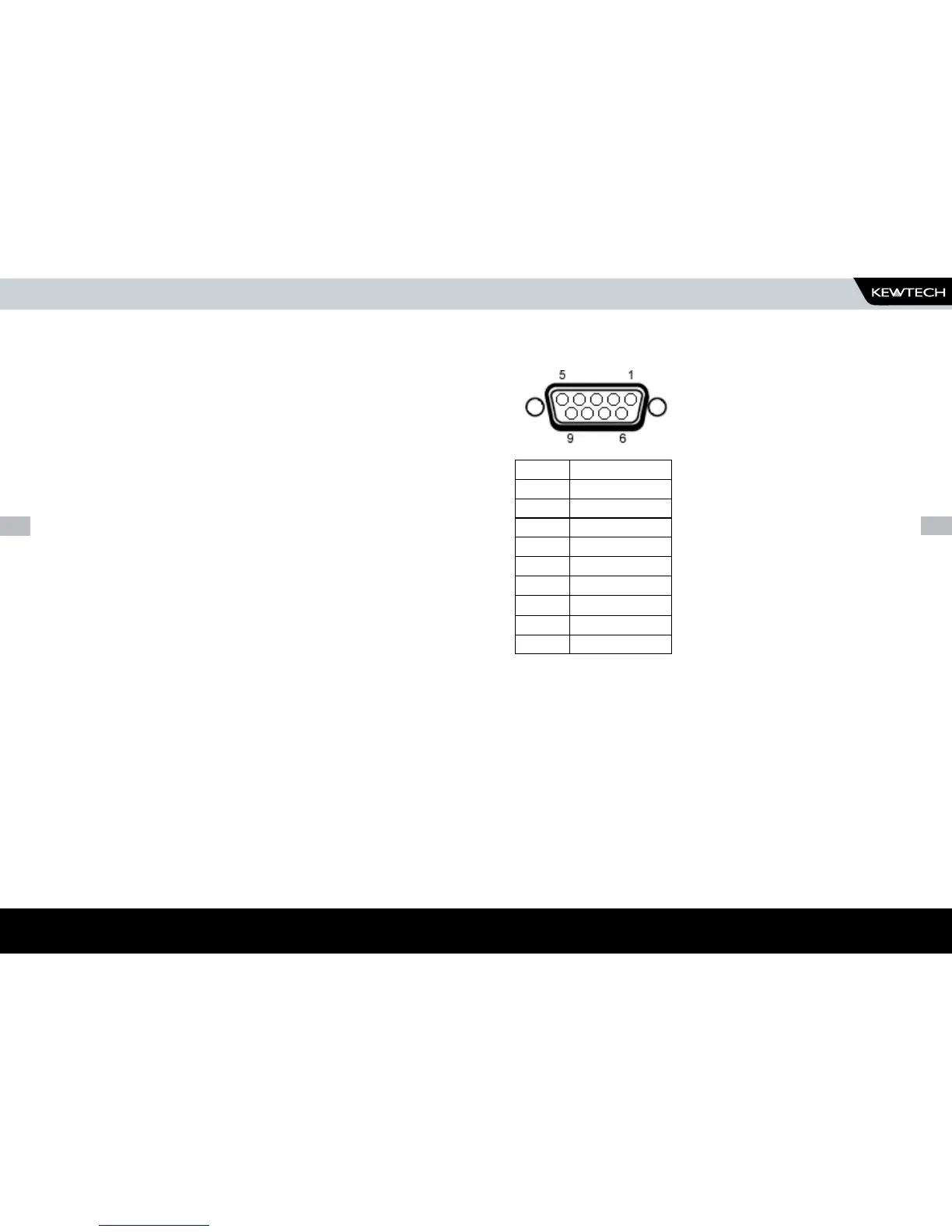

Serial Port
The serial port uses a standard 9-way D-type connector
Pin Description
1. N.C.
2. RX
3. TX
4. DTR
5. 0V
6. N.C.
7. 0V
8. N.C.
9. +5V
Baud Rate: 9600, 19200, 28800 (selectable)
Start Bits: 2
Data Bits 8
Stop Bits: 2
Parity: None
Inter-character Delay: 20ms
