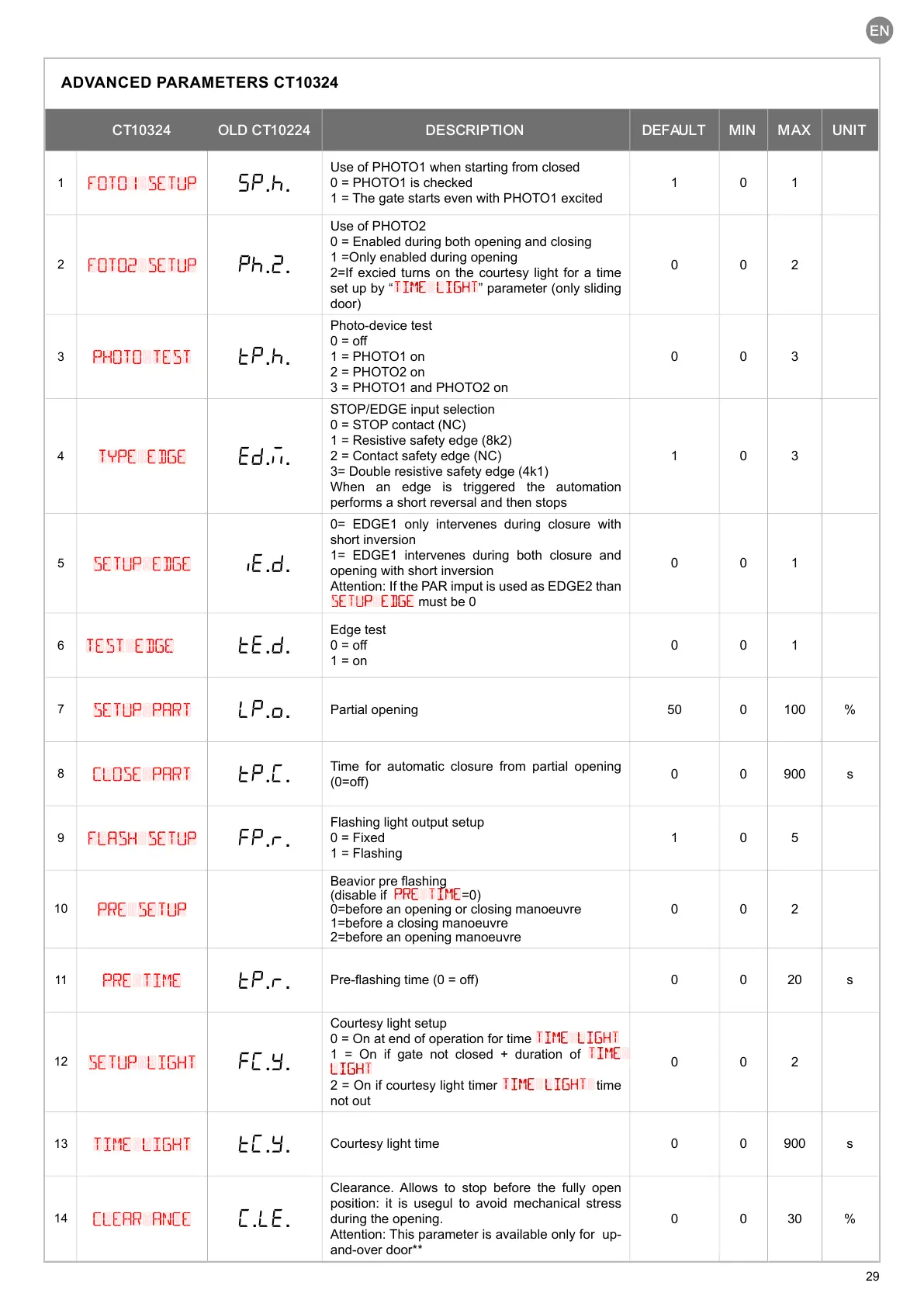

CT10324 OLD CT10224 DESCRIPTION DEFAULT MIN MAX UNIT
1
foto1 setup
SP.h.
Use of PHOTO1 when starting from closed
0 = PHOTO1 is checked
1 = The gate starts even with PHOTO1 excited
1 0 1
2
foto2 setup
Ph.2.
Use of PHOTO2
0 = Enabled during both opening and closing
1 =Only enabled during opening
2=If excied turns on the courtesy light for a time
set up by “
TIME LIGHT
” parameter (only sliding
door)
0 0 2
3
photo test
tP.h.
Photo-device test
0 = o
1 = PHOTO1 on
2 = PHOTO2 on
3 = PHOTO1 and PHOTO2 on
0 0 3
4
type edge
Ed.m.
STOP/EDGE input selection
0 = STOP contact (NC)
1 = Resistive safety edge (8k2)
2 = Contact safety edge (NC)
3= Double resistive safety edge (4k1)
When an edge is triggered the automation
performs a short reversal and then stops
1 0 3
5
setup edge
iE.D.
0= EDGE1 only intervenes during closure with
short inversion
1= EDGE1 intervenes during both closure and
opening with short inversion
Attention: If the PAR imput is used as EDGE2 than
SETUP EDGE
must be 0
0 0 1
6
test edge
tE.D.
Edge test
0 = o
1 = on
0 0 1
7
setup part
LP.o.
Partial opening 50 0 100 %
8
close part
TP.C.
Time for automatic closure from partial opening
(0=o)
0 0 900 s
9
flash setup
FP.r.
Flashing light output setup
0 = Fixed
1 = Flashing
1 0 5
10
pre setup
Beavior pre ashing
(disable if
PRE TIME
=0)
0=before an opening or closing manoeuvre
1=before a closing manoeuvre
2=before an opening manoeuvre
0 0 2
11
pre time
tP.r.
Pre-ashing time (0 = o) 0 0 20 s
12
setup light
FC.Y.
Courtesy light setup
0 = On at end of operation for time
TIME LIGHT
1 = On if gate not closed + duration of
TIME
LIGHT
2 = On if courtesy light timer
TIME LIGHT
time
not out
0 0 2
13
time light
tC.Y.
Courtesy light time 0 0 900 s
14
clear ance
C.Le.
Clearance. Allows to stop before the fully open
position: it is usegul to avoid mechanical stress
during the opening.
Attention: This parameter is available only for up-
and-over door**
0 0 30 %
