Local Operations 5
Keysight 11713D/E Operating and Service Manual 45

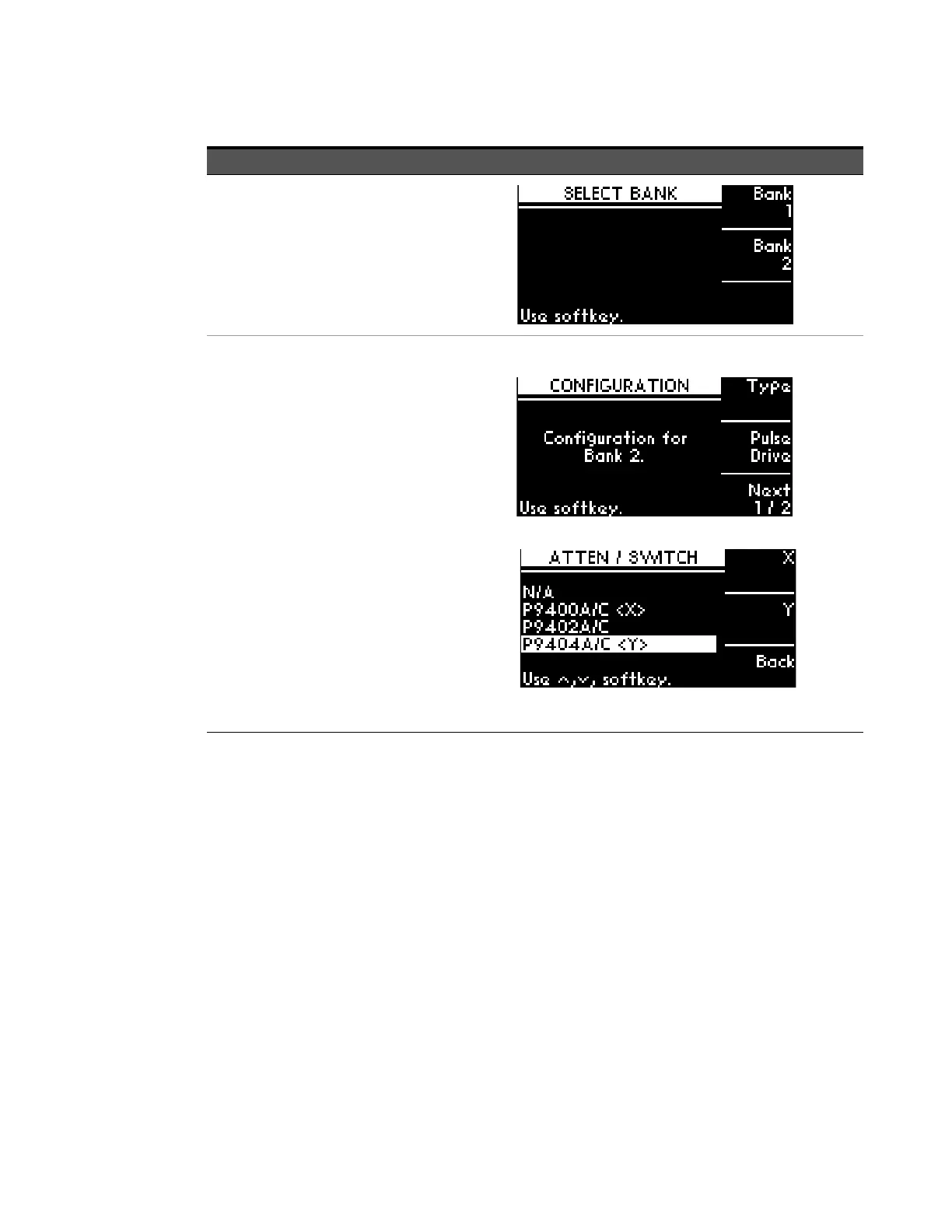

Item Action Illustration
1 Select bank
(only for
11713E)
a Press Config button.
b On SELECT BANK screen, you can
see two softkey selections: BANK1
and BANK2.
c Press Bank1 softkey to select bank
1.
d Press Bank2 softkey to select bank
2.
2 Select
attenuator type
a On CONFIGURATION MENU
screen, press Type softkey.
b On ATTEN/SWITCH screen, scroll
to highlight the desired attenuator/
switch model number using the
navigation keys.
c Once the attenuator/switch model
is determined, press X or Y softkey
to assign the selected attenuator/
switch model.
d Repeat steps b and c if needed.
e Model assigned to ATTEN X and
ATTEN Y is marked <X> (e.g.
P9400A/C) and <Y> (e.g. P9404A/
C) respectively.
f To return to the previous screen,
press Back softkey.
