Operating Your Frequency Counter 2
Keysight 53150A/151A/152A Operating Guide 99
6 Use the right-arrow key to move to each of the remaining digits in the
frequency setting, and use up- and down-arrow keys to adjust their values, if
necessary.
The currently selected digit flashes to indicate that it is the one that changes
when you press the up- and down-arrow keys. You can also use the left-arrow
key to back up to a previous digit, if necessary. However,
be aware that the digit to the left of the one you are adjusting increments
automatically to the next higher or lower value when the value of the currently
selected digit exceeds nine or is incremented below zero.

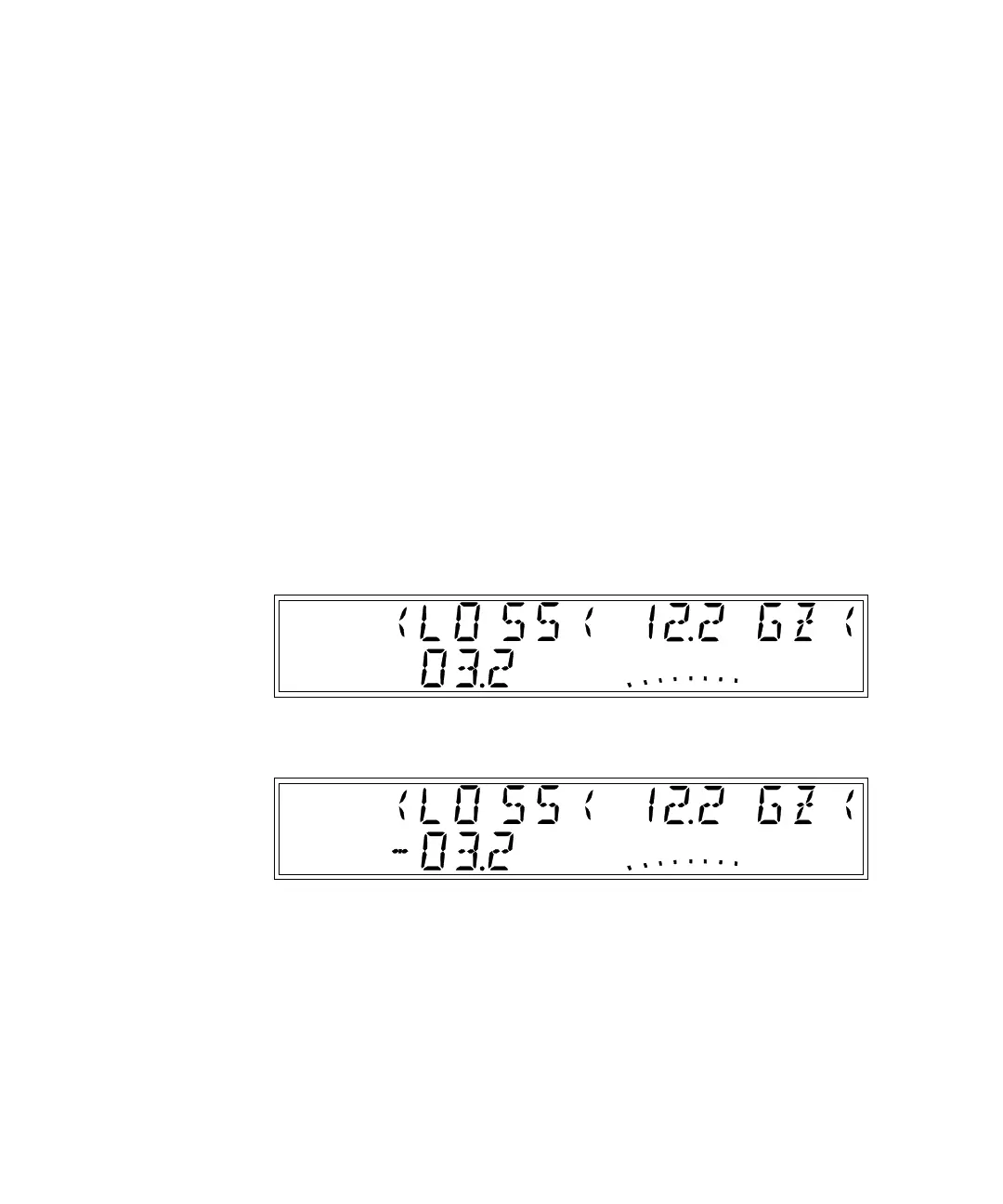

7 To adjust the loss value, press the right-arrow key while the digit in the tenths
position of the frequency value and the pointer to the right of “GZ” are flashing.
The pointer at the right end of the display changes direction, and the first digit
(tens position) of the loss value flashes. You can now adjust its value using the
up- and down-arrow keys.
8 Use the left- and right-arrow keys to navigate to the remaining digits in the
loss setting, and adjust their values (if necessary) with the up- and
down-arrow keys.
9 Press the Sign (+/–) key to change the sign of the loss value
(if necessary).
dB
dB
