Cleaning and Replacing the Filter
The following procedure illustrates the AC6804B instrument, but the same procedure applies to all
the AC6800B units.

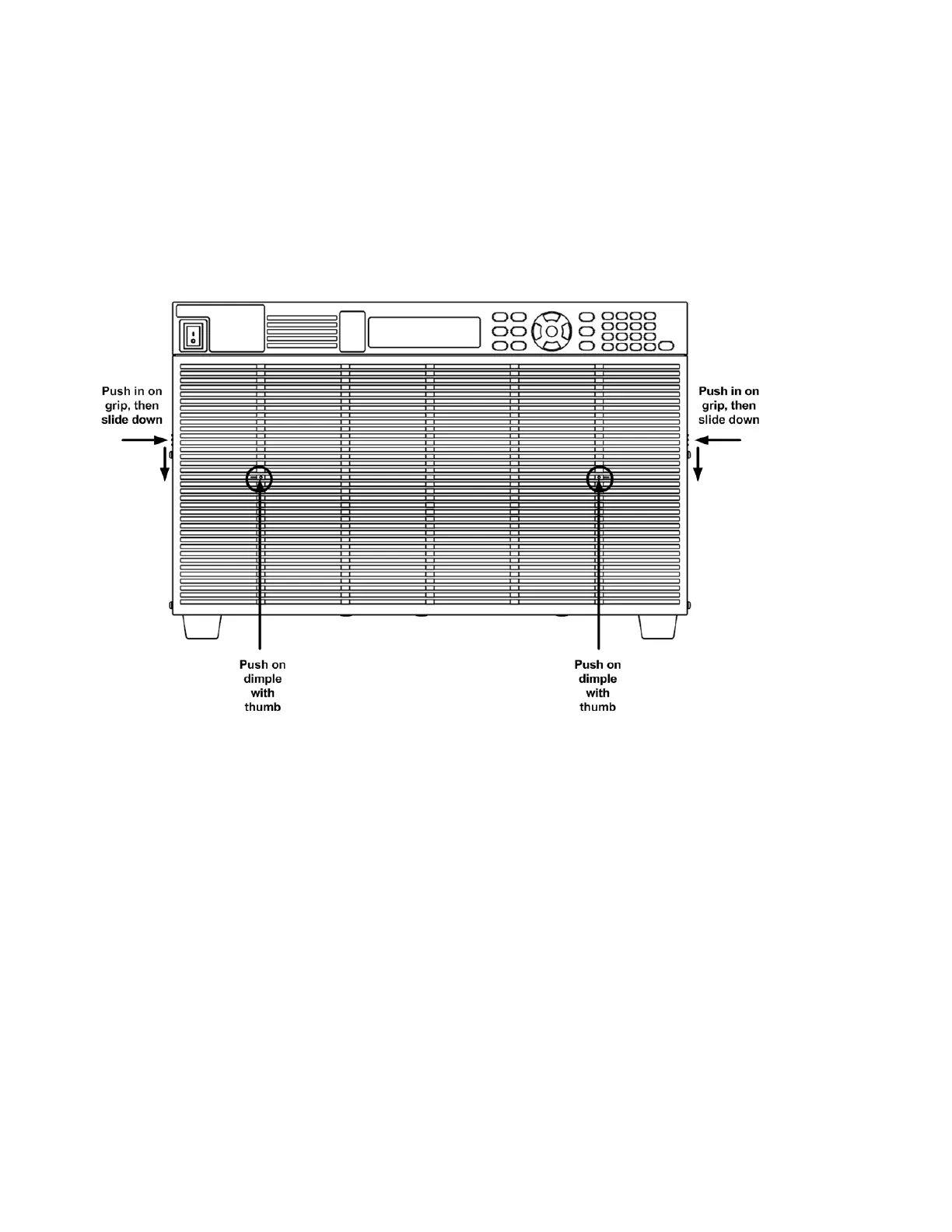

Step 1. With your thumbs, press on the two dimples located on the front panel grill.
Step 2. While pressing on the dimples, use your forefingers to press on the grips and slide the grill
down.
Step 3. Detach the front grill.
Step 4. Remove the filter and clean it by rinsing it in water. Ensure that the filter is completely dry
before reinstalling it.
Step 5. Align the plastic fingers on the back of the grille with the slots on the sheet metal.
Step 6. With your thumbs, press the two dimples located on the front panel grill.
Step 7. While pressing on the dimples, use your forefingers to press on the grips and slide the grill up.
