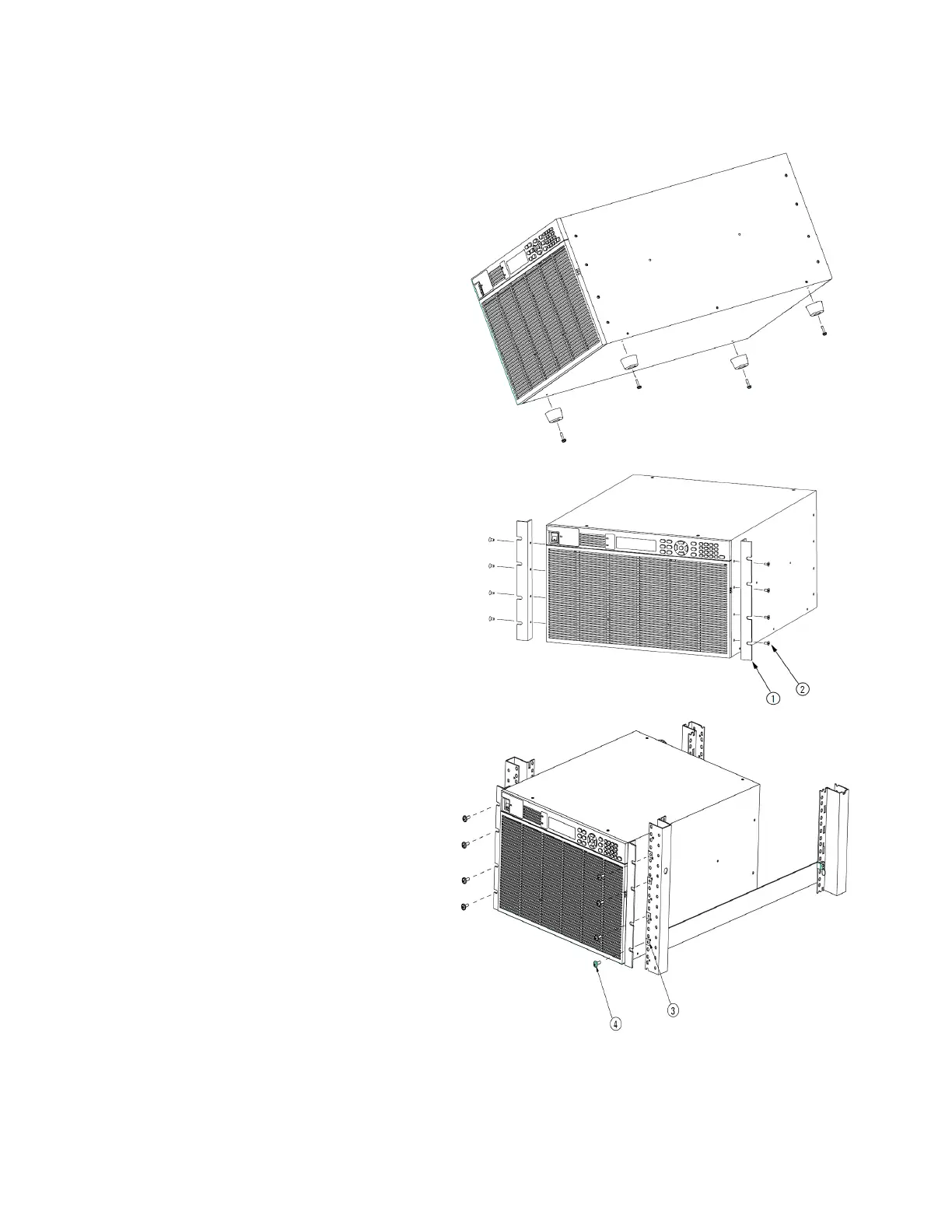

Rack Mounting Model AC6804B
Remove the feet from the bottom panel.
Using the accompanying M4×10 flat head
screws, install the brackets.
Using the accompanying dress screws and clip
nuts (10-32), mount the instrument in the rack.
Keysight AC6800B Series Operating and Service Guide 27
1Getting Started
